Description
Overview:

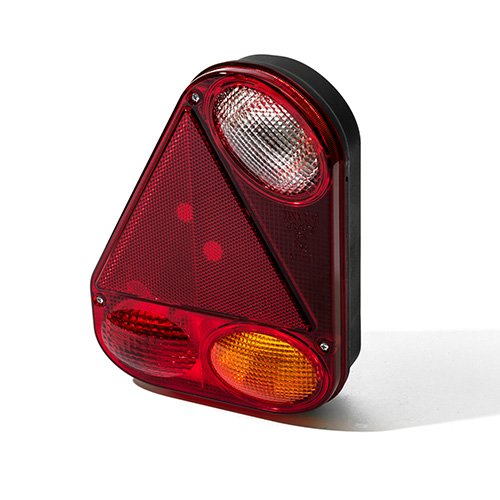

Left-hand vertical rear combination lamp from the Radex 2900 range for 12V systems. Provides stop, tail, indicator and reverse functions with an integrated reflector, using replaceable bulbs supplied with the unit. The rear features a Radex 5+4 pin connector to suit matching Radex looms and light boards for straightforward installation and service. E approved for road use. Spare lens available under part number MP7710BL. Suitable for trailers and transport applications using the Radex 2900 pattern, fitted on the left side.
Specification:
- Voltage: 12V
- Functions: Stop, tail, indicator, reverse, reflector
- Orientation: Left-hand, vertical style
- Series: Radex 2900
- Light source: Replaceable bulbs (included)
- Connection: 5+4 pin Radex-style connector
- Approval: E approved
- Mounting: Studs
- Spare lens: MP7710BL
Typical Applications:
Rear lighting on braked and unbraked trailers, plant and equipment transporters, and light commercial trailer builds using Radex 5+4 systems on the left-hand side.
Product Specifications
| L&S Part No. | 763 577 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
| Key Features | - 12V rear combination lamp for trailers - Provides stop, tail, indicator, reverse functions - Integrated reflector with replaceable bulbs - 5+4 pin Radex connector for easy installation - E approved for road use |
