Description
Overview:

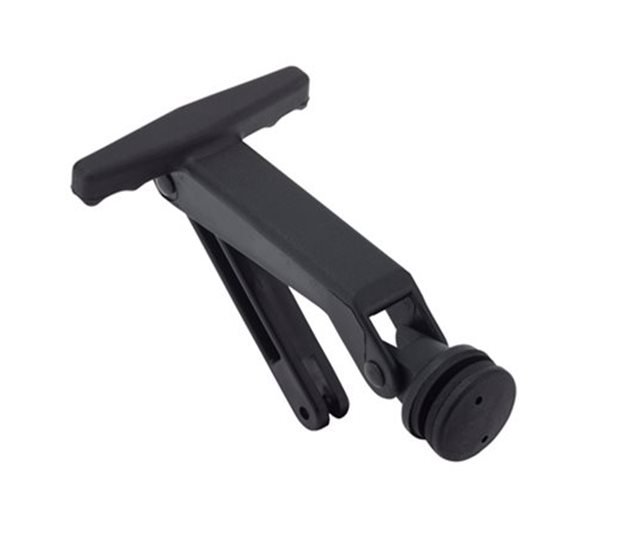

Window Overcentre Stay, Multi-Stage Ratchet 206mm, Black Reinforced Nylon (MPN 800 1142) is a reinforced nylon hold-open and positioning stay for cab glazing and utility windows. The body is moulded in black reinforced nylon with an integral glazing clamp and gasket to secure to the glass while helping protect the glazing surface. A multi-stage ratchet provides incremental opening positions, and the overcentre design gives positive location during use. The stay measures 206 mm (8.11 in) in length and 100 mm (3.94 in) in width, and requires a Ø13 mm (0.51 in) mounting hole. This non-metallic construction offers a lightweight, corrosion-resistant solution suitable for harsh environments. Commonly used on agricultural machinery, tractor cabs and other equipment cabs where reliable, repeatable window positioning is required for ventilation, visibility, and operator access.
Key Features:
- Reinforced nylon construction for strength and durability
- Black finish for a uniform cab interior appearance
- Multi-stage ratchet mechanism for controlled, incremental window positions
- Overcentre stay design for positive, secure positioning
- Integral glazing clamp with gasket to grip and protect the glazing
- Length: 206 mm (8.11 in)
- Width: 100 mm (3.94 in)
- Requires Ø13 mm (0.51 in) mounting hole
- Non-metallic body for corrosion resistance and reduced weight
- Supplied as a single window fitting for cab glazing applications
Typical Applications:
Used on agricultural machinery and tractor cabs to hold and position side or rear windows and vents. Suitable for equipment and operator cabs where a compact, multi-position stay is needed to control window opening for ventilation and access.
Also known as:
Over-centre window stay
Multi-position window stay
Ratchet cab window stay
Glazing clamp window stay
Window hold-open stay
Product Specifications
| L&S Part No. | 800 1142 |
|---|---|
| Unit of Sale | 1 |
