Description
Overview:

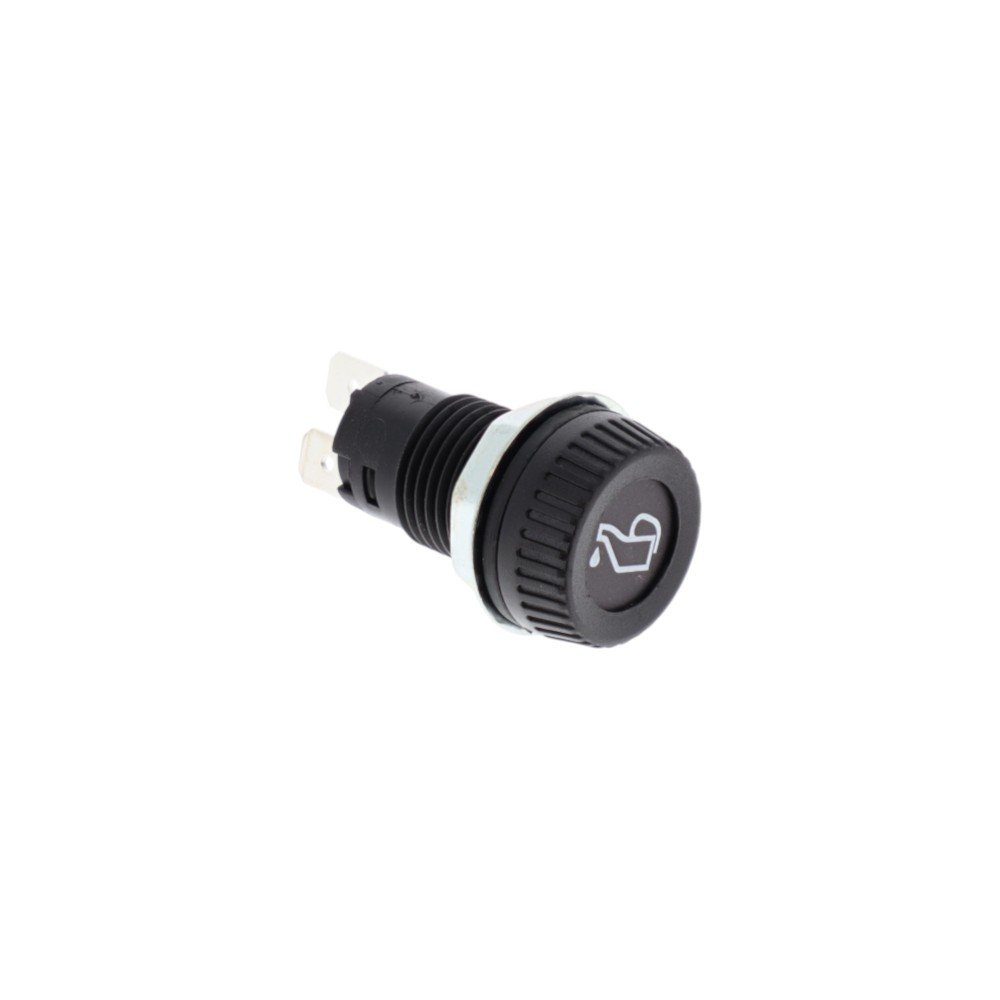

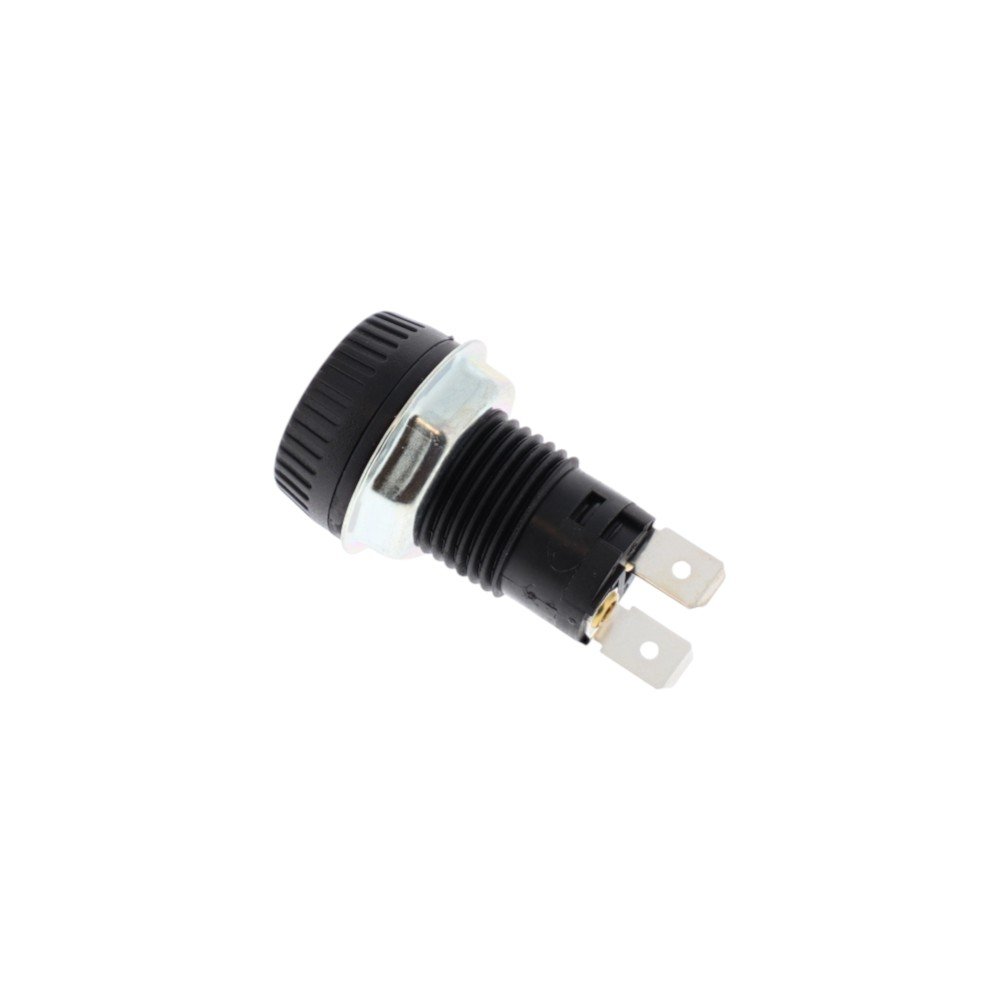

This red oil pressure warning light is a panel‑mount indicator for dashboards and control panels on vehicles, plant, agricultural machinery, marine equipment and industrial machines. It uses a standard 9 mm BA9s miniature bayonet bulb (not included) with a maximum rating of 2 W, allowing you to match the bulb voltage to your system. The unit fits a 17 mm diameter panel hole and connects via 6.3 mm push‑on terminals for quick installation. The red lens provides clear oil pressure warning indication when used with a suitable sender or circuit. Designed for serviceability, the lamp can be re‑lamps from the front of the panel, reducing downtime during maintenance. This is a genuine Durite component, supplied singly, OEM reference 0-609-53.
Key Features:
- Panel cut‑out size: 17 mm diameter
- Lens colour: red for oil pressure indication
- Bulb type: BA9s miniature bayonet, 9 mm cap
- Maximum bulb power rating: 2 W
- Front re‑lamps design for fast bulb replacement
- 6.3 mm push‑on blade terminals for easy wiring
- Compatible with 12 V or 24 V BA9s bulbs
- Suited to dashboards and fixed control panels
- Clear status indication for oil pressure warnings
- Genuine Durite part, OEM 0-609-53
- Supplied singly for one-for-one replacement
- Compact assembly for tight panel spaces
Typical Applications:
Used as an oil pressure warning indicator on vehicle dashboards, agricultural and plant equipment, generators, compressors, forklifts, marine helm panels and industrial control stations. Suitable for new installations or replacing worn indicators where a 17 mm panel hole and BA9s bulb holder are required.
Also known as:
Red panel indicator, oil pressure lamp, oil warning light, dash warning indicator, BA9s panel light, tell‑tale lamp, 17 mm panel warning light, Durite red indicator, instrument panel lamp.
Product Specifications
| L&S Part No. | 125 3006 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Durite |
| OEM No. | 0-609-53 |
| Unit of Sale | Each |
