Description
Overview:

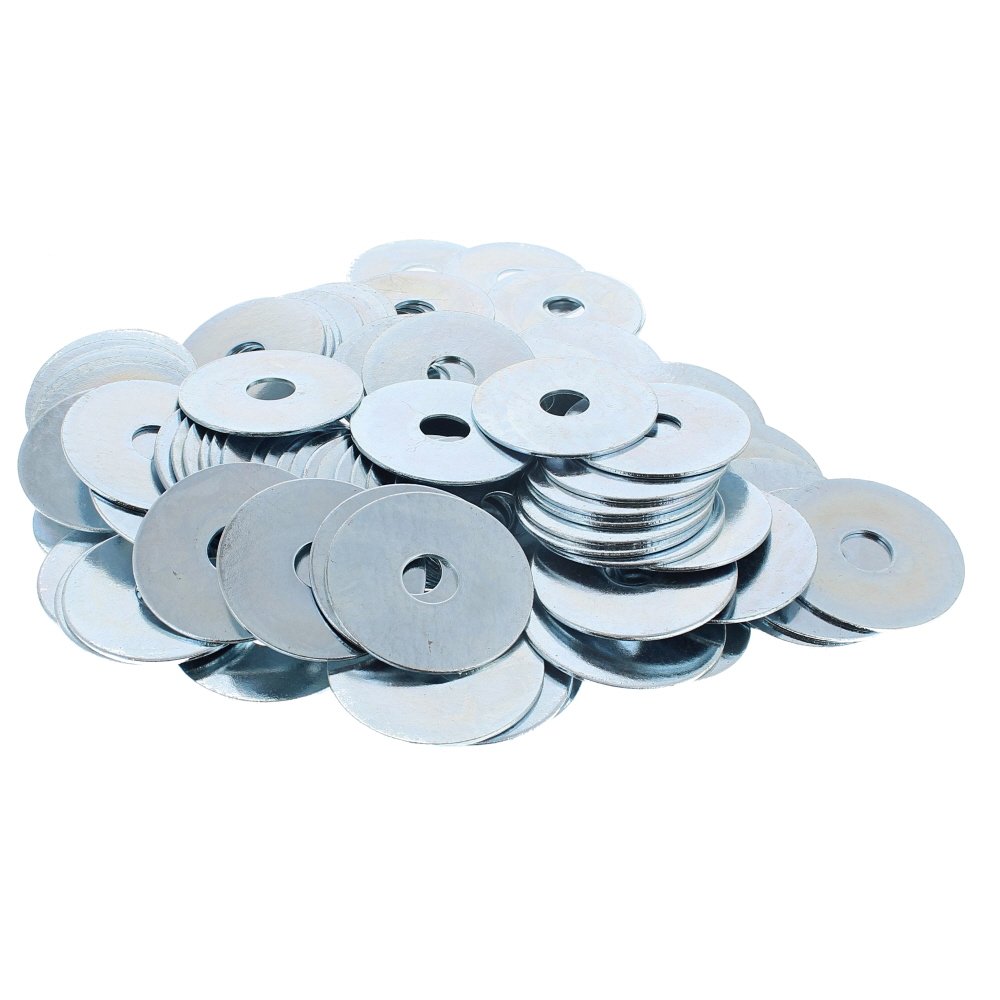

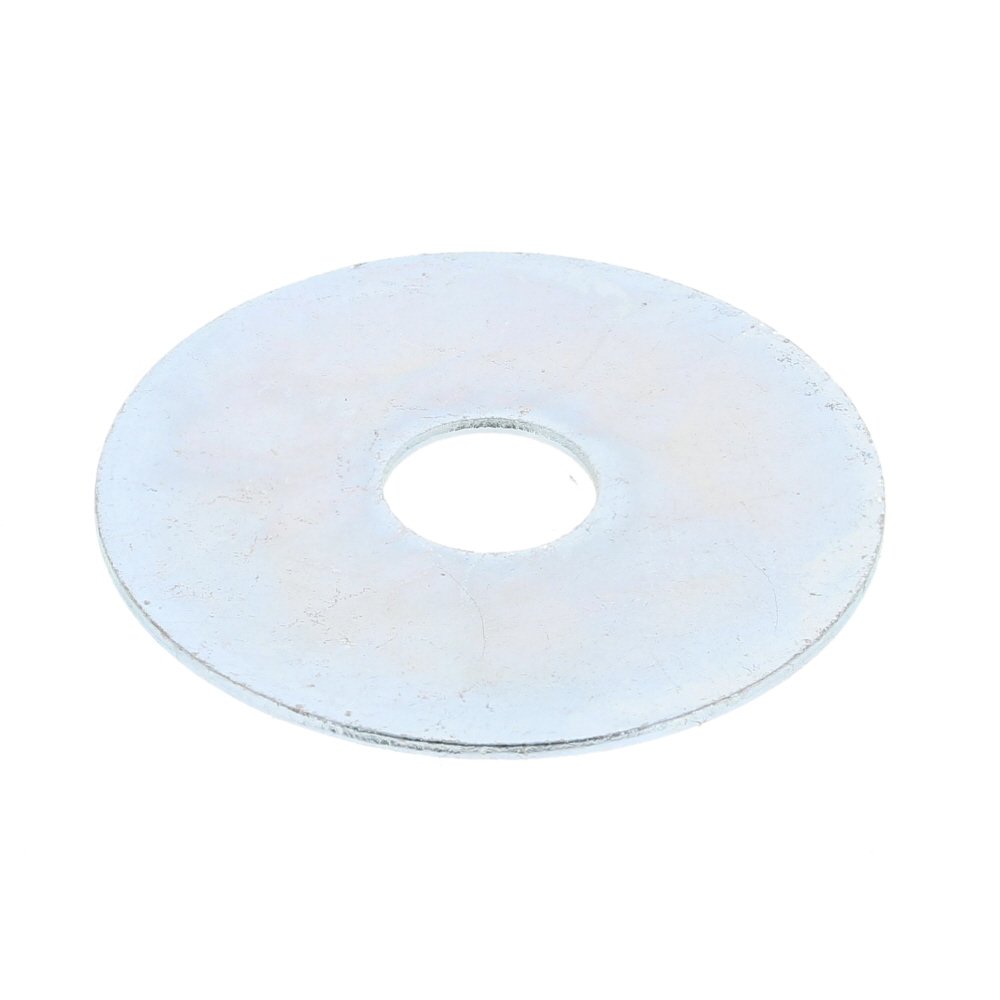

The Repair Washer 12mm x 50 x 1.50, Zinc Plated (Box of 100) is a large outside‐diameter flat washer designed to spread load and protect materials from pull‐through. Made from zinc‐plated steel for dependable corrosion resistance, it is ideal wherever fasteners need extra bearing surface on thin sheet, timber, plastics, or worn holes. With a 12 mm internal diameter (0.47 in), 50 mm external diameter (1.97 in), and 1.50 mm thickness (0.06 in), it suits M12 bolts, set screws, and threaded studs. A hardness rating of HV 140-250 supports reliable clamping without deforming prematurely. Commonly used around construction fixings, plant repairs, and general maintenance on site or in the workshop. Supplied in a box of 100 for convenient bulk use.
Key Features:
- Zinc‐plated steel for enhanced corrosion resistance and long service life
- Large 50 mm OD (1.97 in) spreads load to protect softer or thin materials
- 12 mm ID (0.47 in) suits M12 bolts, set screws, and studs
- 1.50 mm thickness (0.06 in) for stable clamping without excessive build‐up
- Hardness HV 140-250 for a strong, durable seating surface
- Helps prevent fastener heads and nuts pulling through oversized or damaged holes
- Supports better joint stability by distributing tension evenly
- Supplied as a box of 100 for efficient stocking and site use
- Manufactured to common international standards for consistent fit and performance
- Smooth, flat profile for easy handling and straightforward installation
Typical Applications:
General construction fixings, timber framing, cladding and sheet‐metal work, fencing, ducting and HVAC brackets, plant and agricultural machinery maintenance, vehicle bodywork and trailer repairs, M&E supports, and repair tasks where a wider bearing surface is needed to stabilise joints or reinforce worn or oversized holes.
Also known as:
Penny washers, mudguard washers, large OD washers, body washers, spreader washers, repair disc washers, flat repair washers, wide‐face washers.
Product Specifications
L&S Part No. | MEMWAR1250Z |
---|---|
Unit of Sale | 1 |
