Description
Overview:

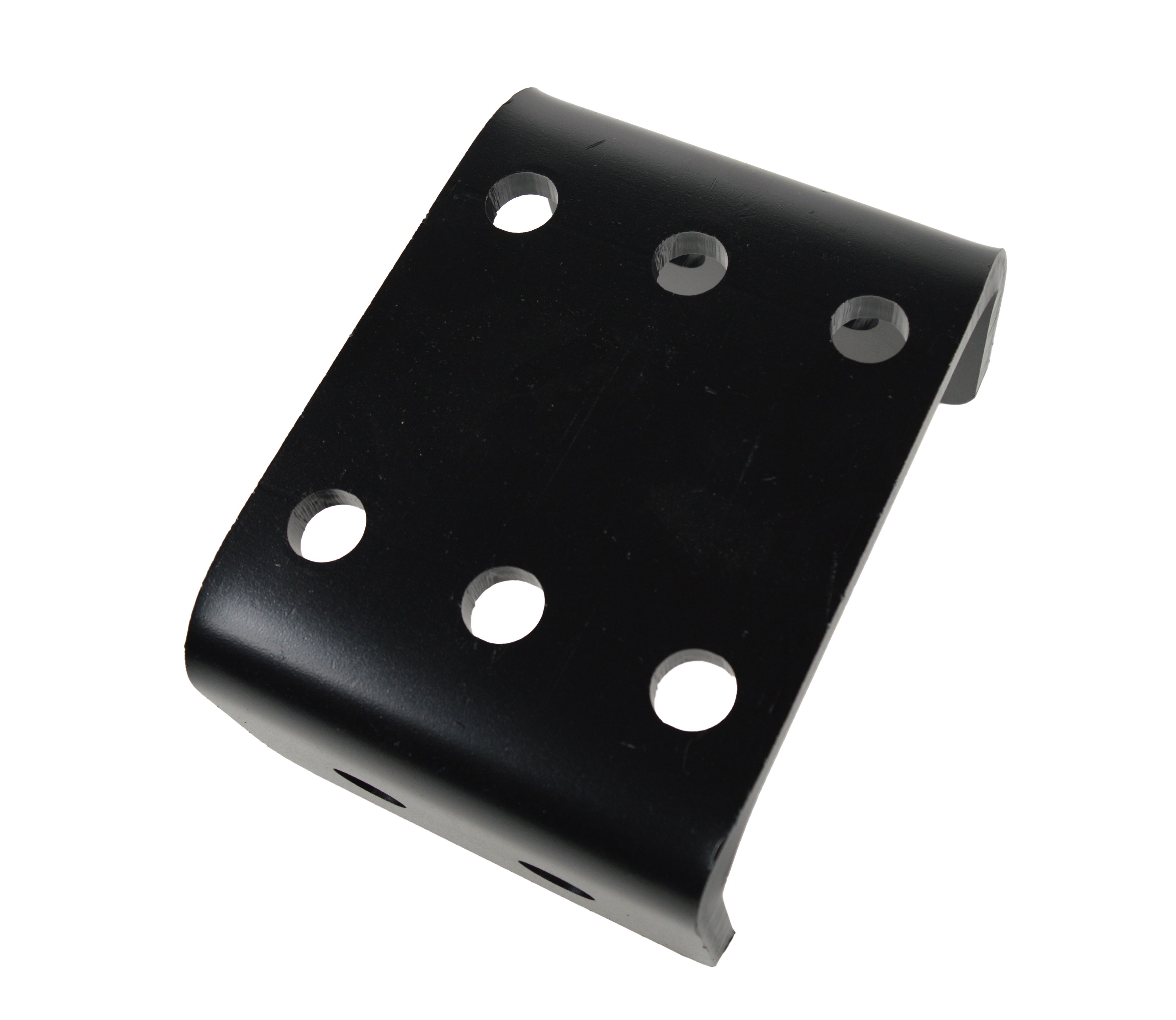

The Towball Slider Plate, 128 x 173 mm (MPN 763 560), is a replacement component for height-adjustable two-pin drop plate towing brackets. It allows vertical positioning of the towball in 45 mm (1.77 in) increments using twin pin locations on each side set 50 mm (1.97 in) apart. The plate measures 128 mm (5.04 in) high by 173 mm (6.81 in) wide and is drilled with six M16 (0.63 in) fixing holes on 90 mm (3.54 in) centres for secure attachment to the main drop plate. Intended for workshops, fleet maintenance and trailer builders, it restores correct function to adjustable towing setups on commercial vehicles, pickups and 4x4s, and plant or general-purpose trailers. Use it to replace a worn or damaged slider and maintain safe, repeatable towball height settings.
Key Features:
- Replacement slider for height-adjustable 2-pin drop plate systems
- Plate size: 128 mm (5.04 in) high x 173 mm (6.81 in) wide
- Two pin location holes on each side, 50 mm (1.97 in) separation
- Six M16 (0.63 in) fixing holes
- Fixing hole centres: 90 mm (3.54 in)
- Height adjustment in 45 mm (1.77 in) steps
- Supports repeatable towball height positioning across common setups
Typical Applications:
Used in the adjustable towball bracket on vans, 4x4s, pickups and light commercial vehicles, as well as on plant, equipment and general-purpose trailers where the towball height must be matched to different drawbar heights. Fits compatible height-adjustable 2-pin drop plates, including assemblies from Maypole. Commonly selected when refurbishing towing brackets to restore positive pin engagement and accurate height indexing.
Also known as:
Replacement drop plate slider, Adjustable towball slider plate, 2-pin drop plate slider, Height-adjustable slider plate, Maypole part number MP2371B
Product Specifications
| L&S Part No. | 763 560 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
