Description
Overview:

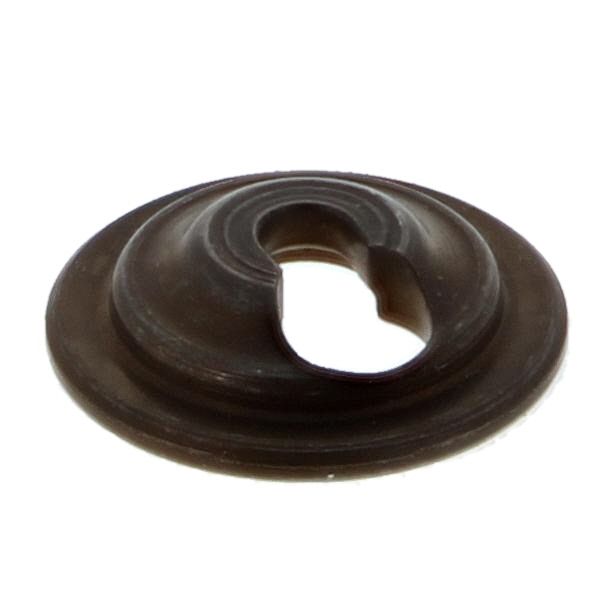

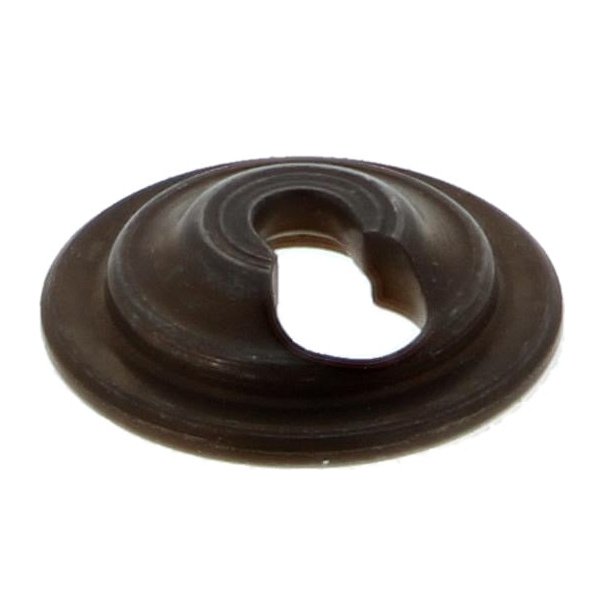

The Retainer Valve Spring 14771-ZM3-010 is a small but critical part used in the valve train of Honda small engines and generators. Made from high-grade steel for strength and wear resistance, it sits at the top of the valve spring to hold the spring securely in place under operating loads. By maintaining correct spring position and tension, it helps prevent valve float and ensures consistent valve timing, stable idle, and smooth running. This retainer is suited to compact Honda power units found across garden and construction equipment, including the EU20i generator and GX22 handheld engine. It is a direct-fit replacement matching Honda specifications for form and function, supporting dependable performance with minimal fuss during servicing.
Key Features:
- High-grade steel construction for durability and long service life
- Precisely machined to maintain correct valve spring alignment and tension
- Direct-fit geometry to match Honda engine specifications
- Helps protect against valve float and timing instability at operating speed
- Stable performance across hot/cold cycles and vibration
- Compact, lightweight part designed for small-displacement Honda engines
- Suitable for routine top-end refresh or targeted valve train repairs
- Straightforward installation for competent DIY users and professionals (use manufacturer procedures)
Typical Applications:
Used during cylinder head repairs, valve spring replacement, or preventative maintenance on Honda small engines powering generators, water pumps, brushcutters, tillers, compact construction tools, and lawn and garden machinery. Ideal when restoring consistent valve operation, addressing misfires related to valve control, or completing a full top-end service to extend engine life.
Also known as:
Valve spring holder, spring retainer, engine retainer, valve spring cap, valve retainer cap.
Fits Models:
EU20i, GX100, GX100U, GX22, GX31, GXH50, GXH50U, GXH50UT, GXV50, GXV50U, GXV57, GXV57U, WX15
Alternate Part Numbers:
14771-ZM3-010, 14771ZM3010
Product Specifications
| L&S Part No. | 14771 ZM3 010 |
|---|---|
| Manufacturer | Honda |
| OEM No. | 14771ZDF000 |
| Unit of Sale | 1 |
| Machine Type | Generators, Engines |
| Fits Brands | Honda |
| Key Features | - High-grade steel for strength and wear resistance - Direct-fit for Honda EU20i, GX22, GX31 engines - Maintains correct valve spring alignment and tension - Prevents valve float and timing instability - Suitable for routine maintenance and repairs |
| Fits Models | GXH50 (GCAL) | GX100 (GCANM) | GX100U (GCAGK) | GX31 (GCAG) | GX22 (GCAF) | GXH50UT (GCBYT) | GXH50U (GCAFK) (Mixer Spec) | GXV50U (GJAAK) | GXV50 (GJAG) | GXV57U (GJAJK) | GXV57 (GJALM) | EU20i | WX15 |
