Description
Overview:

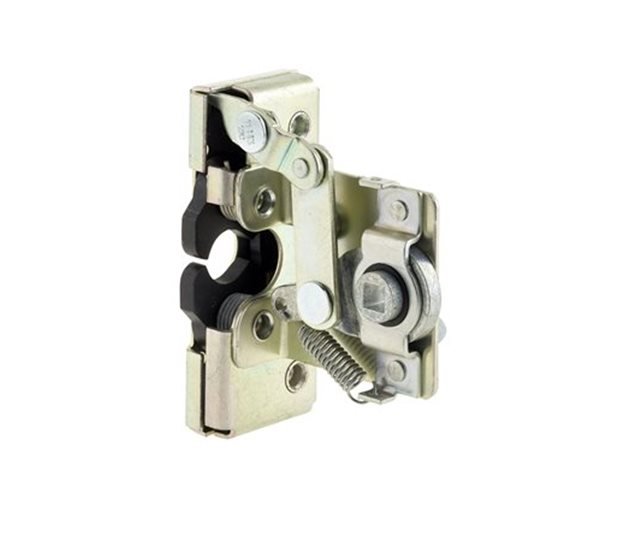

Two Rotor Latch, Right Hand, 8 mm Square Drive, Zinc Plated Steel (MPN 800 1368) is a right-hand rotary latch assembly for doors, hatches and access panels on commercial vehicles and equipment. It is manufactured from mild steel and finished with a zinc plate and clear chromate for corrosion protection. The mechanism provides a two-stage latching action for secure primary and secondary engagement, with a spring-loaded release operated by an 8 mm (5/16 in) square drive. Typical use is with external handles or linkages that connect to the square drive. The housing measures 114 mm long (4.49 in), 46 mm wide (1.81 in) and 20 mm thick (0.79 in), and mounts using 1/4-20 UNC fixings. Branded TriMark, this right-hand configuration is suited to truck bodies, trailers, buses and plant equipment where a robust twin-rotor latch is required.
Key Features:
- Right-hand twin-rotor latch mechanism with two-stage engagement
- Spring-loaded release via 8 mm square drive (5/16 in) for linkage/handle actuation
- Mild steel construction for strength and service life
- Zinc plated with clear chromate finish for corrosion resistance
- Overall length: 114 mm (4.49 in)
- Width: 46 mm (1.81 in)
- Body thickness: 20 mm (0.79 in)
- Fixing thread: 1/4-20 UNC (nominal 6.35 mm) mounting points
- Suited to right-hand door or panel layouts
- Brand: TriMark
Typical Applications:
Used on truck and trailer body doors, service hatches and access panels, as well as buses, generator sets, horseboxes and cab enclosures. Suitable for plant transport and other commercial vehicle installations requiring a compact, secure, two-stage rotary latch.
Also known as:
Rotary latch; Twin rotor latch; Double rotor latch; Two-stage latch; Right-hand rotary latch; Square drive release latch
Product Specifications
| L&S Part No. | 800 1368 |
|---|---|
| Unit of Sale | 1 |
