Description
Overview:

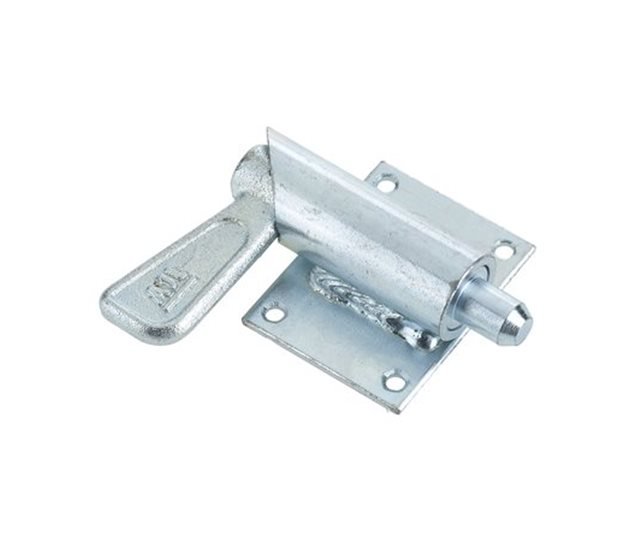

Right Hand Shoot Bolt, 10mm Pin, 14mm Stroke, Side Plate, Zinc Plated (MPN 800 1082) is a medium duty bolt-on shoot bolt for securing doors, hatches and gates on commercial vehicles and equipment. Manufactured from mild steel with a clear passivated zinc plated finish for general corrosion protection, it provides a positive sliding pin action with a 10mm (0.39 in) diameter pin and a 14mm (0.55 in) throw. The body measures 57mm (2.24 in) long by 22mm (0.87 in) diameter and is supplied with a matching side/end plate for mounting to the frame. Designed for right-hand operation, the unit fixes via four countersunk holes to give a neat, flush fit. Suitable for trailers, vans, plant transport and machinery where a compact, reliable mechanical hold is required.
Key Features:
- Medium duty, bolt-on shoot bolt for side mounting
- Mild steel construction with zinc plated, clear passivated finish
- Right-hand action for compatible door and frame layouts
- 10mm pin diameter (0.39 in) for positive engagement
- 14mm stroke/throw (0.55 in) for secure retention
- Body length: 57mm (2.24 in)
- Barrel/body diameter: 22mm (0.87 in)
- Supplied side/end plate: 41.5 x 50 x 2mm (1.63 x 1.97 x 0.08 in)
- Fixing: 4 x 4mm countersunk holes (0.16 in)
- Type: Bolt-on shoot bolt assembly
- Brand: Albert Jagger
Typical Applications:
Used on commercial vehicle bodywork, plant and agricultural machinery, and on trailers and van doors to secure side and rear doors, gates and access panels. Also common on skips and balers where a compact, short-stroke pin provides reliable mechanical retention.
Also known as:
Spring bolt, barrel bolt, slide bolt, plunger bolt, door shoot, side-mount shoot bolt
Product Specifications
| L&S Part No. | 800 1082 |
|---|---|
| Unit of Sale | 1 |
