Description
Overview:

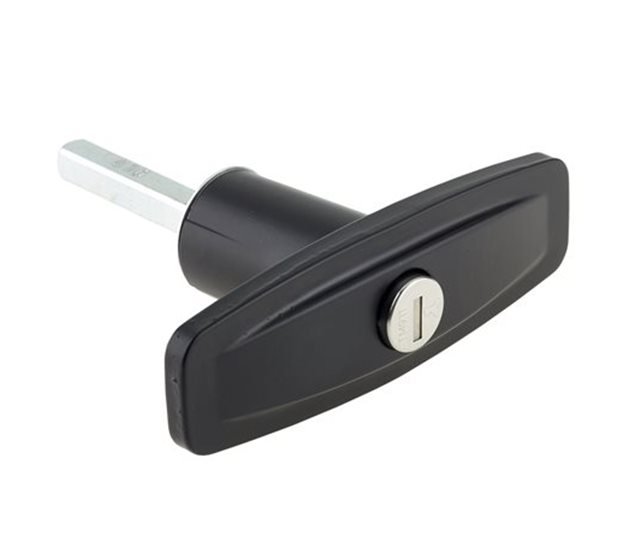

This flush-mounted pop-up T-handle (MPN 800 1378) is a right-hand, locking unit designed for vehicle and equipment access doors where a low-profile, durable latch is required. Manufactured from mild steel with a black powder-coated finish, it provides robust performance and corrosion resistance in commercial and plant environments. The handle operates with a 90° clockwise rotation and is keyed alike to simplify fleet key management. A neoprene fixing gasket is supplied to help seal against water and dust ingress when mounting to panels or doors. Typical dimensions are 108 mm (4.25 in) length, 34 mm (1.34 in) width and 14 mm (0.55 in) thickness, with a 45 x 8 mm (1.77 x 0.31 in) square spindle. Suitable for new build and replacement use on truck bodies, trailers, buses, generator sets, horseboxes, cabs, pickups, cabinets and agricultural equipment.
Key Features:
- Right-hand operation with 90° clockwise rotation for consistent orientation on RH doors and panels
- Locking, keyed alike cylinder to streamline key control across multiple units
- Mild steel construction for strength and durability in commercial service
- Black powder-coated finish for corrosion resistance and a low-glare appearance
- Flush, pop-up T-handle design to reduce snagging and improve security
- Supplied with neoprene fixing gasket to aid sealing against water and dust ingress
- Overall length: 108 mm (4.25 in)
- Overall width: 34 mm (1.34 in)
- Body thickness: 14 mm (0.55 in)
- Square spindle: 45 x 8 mm (1.77 x 0.31 in)
Typical Applications:
Used on commercial vehicle bodywork and equipment enclosures including trucks, trailers and buses, as well as generator sets, horseboxes, agricultural tractors, site cabinets and service compartments on pickups and cabs. Suitable for lockers, toolboxes, service doors and access panels where a flush, right-hand locking T-handle is required.
Also known as:
Flush T-Handle Lock
Pop-Up Tee Handle
Right-Hand T Lock
Locking T-Handle, Keyed Alike
Product Specifications
| L&S Part No. | 800 1378 |
|---|---|
| Unit of Sale | 1 |
