Description
Overview:

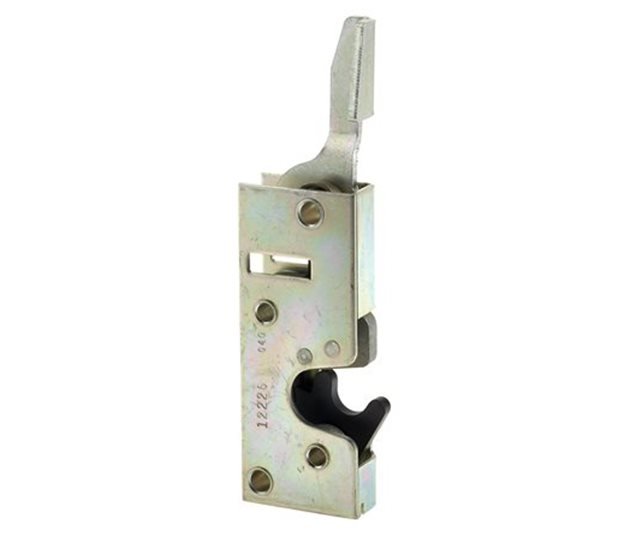

Single Rotor Latch - Right Hand, Vertical Lever (MPN 800 1386) is a compact rotary latch for commercial vehicle and equipment bodywork. It is manufactured from mild steel with a zinc plated, clear chromate finish for improved corrosion resistance in service. The latch operates with a two-stage action to hold doors and panels securely and reduce rattle, with release via a vertical finger lever. This right-hand configuration is intended for installations requiring a right-hand mechanism and a vertical actuation lever. The unit measures approximately 104 mm long by 41 mm wide by 17.5 mm thick (4.09 in × 1.61 in × 0.69 in). Fixing is through Ø6.5 mm (0.26 in) holes. Suitable for use on service doors, access hatches and enclosure panels fitted to trucks, trailers, buses, generator sets and horseboxes, as well as cab and body applications. Supplied under the TriMark programme.
Key Features:
- Right-hand single rotor latch with vertical finger-release lever
- Mild steel construction for durability
- Zinc plated with clear chromate finish for corrosion protection
- Two-stage latching mechanism for secure, low-rattle closure
- Overall length: 104 mm (4.09 in)
- Overall width: 41 mm (1.61 in)
- Overall thickness: 17.5 mm (0.69 in)
- Fixing holes: Ø6.5 mm (0.26 in)
- TriMark branded component
Typical Applications:
Used across commercial bodywork and enclosures on trucks, trailers and buses, as well as generator sets, horseboxes and vehicle cabs. Suitable for doors, hatches and access panels where a compact, secure rotary latch with vertical finger release is required.
Also known as:
Rotary latch; Two-stage latch; Finger-release latch; Vehicle body latch; Right-hand rotary catch
Product Specifications
| L&S Part No. | 800 1386 |
|---|---|
| Unit of Sale | 1 |
