Description
Overview:

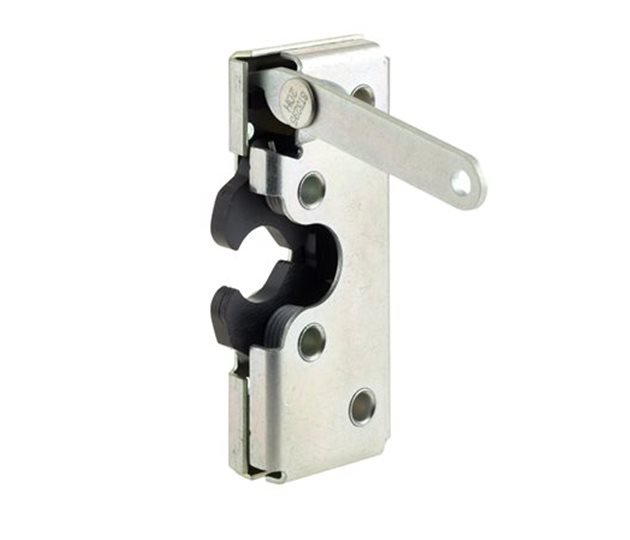

This is a right-hand two-rotor latch with a long release lever, supplied in zinc plated mild steel with a clear chromate finish. The Right Hand Two-Rotor Latch, Long Lever, Single-Point, Zinc Plated (MPN 800 1370) provides a positive 2-stage latching action and single-point actuation, giving secure closure for doors, lockers and service hatches on commercial and specialist vehicles. Designed in partnership with TriMark, it is suitable for use with through-axle linkages and remote release hardware. The latch body measures approximately 114 mm (4.49 in) long, 46 mm (1.81 in) wide and 20 mm (0.79 in) thick, with mounting holes to suit Ø7 mm (0.28 in) fixings. Typical uses include side doors, rear access panels and equipment enclosures where robust, repeatable engagement and clean release are required in fleet and plant environments.
Key Features:
- Right-hand configuration for matching door/hinge layouts
- Two-rotor mechanism with 2-stage latching for secure hold and controlled release
- Single-point operation via a long external release lever
- Through-axle compatible for remote rod/shaft linkage actuation
- Mild steel construction for strength and durability
- Zinc plated with clear chromate finish for corrosion resistance
- Body length approx. 114 mm (4.49 in)
- Body width approx. 46 mm (1.81 in)
- Body thickness approx. 20 mm (0.79 in)
- Mounting/fixing holes Ø7 mm (0.28 in)
- TriMark design from Albert Jagger's strategic partner
- Suited to commercial and heavy-duty vehicle body hardware applications
Typical Applications:
Intended for use on trucks, trailers, buses and vehicle cabs, as well as generator sets, plant equipment enclosures and horseboxes. Commonly fitted to service doors, lockers, rear access panels and compartment lids where a compact, robust rotary latch with remote linkage is required.
Also known as:
Two-rotor rotary latch; 2-stage rotary latch; RH rotor latch; single-point rotary latch; long lever latch; TriMark 050-0100 series latch
Product Specifications
| L&S Part No. | 800 1370 |
|---|---|
| Unit of Sale | 1 |
