Description
Overview:

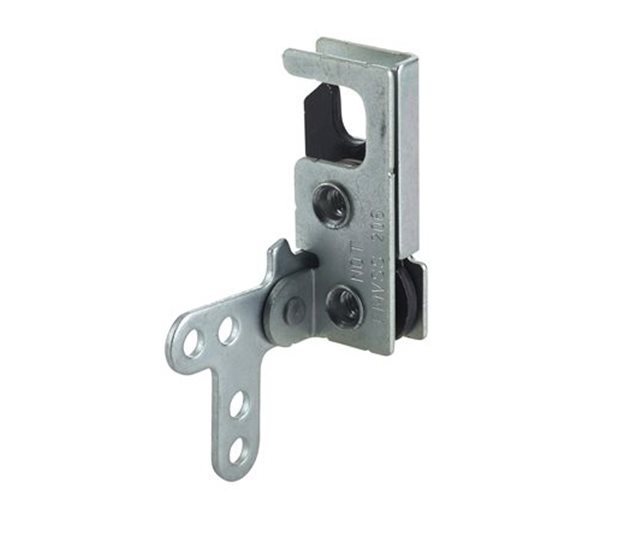

This Single Rotor Mini Latch, Right Hand (MPN 800 1388), is a compact rotary latch for vehicle and equipment bodywork. Manufactured from mild steel with a zinc plated clear chromate finish, it offers a hard-wearing, corrosion-resistant solution in a small footprint. The mechanism is single-stage and operated by a four-point, L-shaped release lever for positive engagement. The body measures 63.5 mm (2.5 in) in length, 29 mm (1.14 in) in width and 13.5 mm (0.53 in) in thickness, making it suitable where space is limited. Fixing is via 1/4-20 UNC threads (approx. 6.35 mm diameter, 1.27 mm pitch) to suit common imperial hardware. This right-hand configuration is specified widely under the TriMark brand for use on trucks, trailers, buses, generator sets, horseboxes and cab installations where a durable, low-profile rotor latch is required.
Key Features:
- Mild steel construction for robust service life
- Zinc plated with clear chromate finish for corrosion protection
- Right-hand operation for RH-configured doors and panels
- Single-stage latching action for straightforward closure
- Four-point L-shaped release lever for positive actuation
- Compact size: 63.5 mm (2.5 in) L, 29 mm (1.14 in) W, 13.5 mm (0.53 in) T
- Fixings: 1/4-20 UNC threads (Ø 6.35 mm, pitch 1.27 mm)
- TriMark brand component used across commercial body hardware
- Suitable where a low-profile rotary/rotor latch is required
- Finish and materials chosen for trade and fleet environments
Typical Applications:
Used across commercial vehicle and equipment bodywork on trucks, trailers, buses, generator sets, horseboxes and cab units. Selected where a compact right-hand rotary latch is needed on body doors, panels and enclosures within the transport and plant sectors.
Also known as:
Rotary mini latch, RH rotor latch, single-stage rotary catch, compact rotor catch, slam-type rotary latch
Product Specifications
| L&S Part No. | 800 1388 |
|---|---|
| Unit of Sale | 1 |
