Description
Overview:

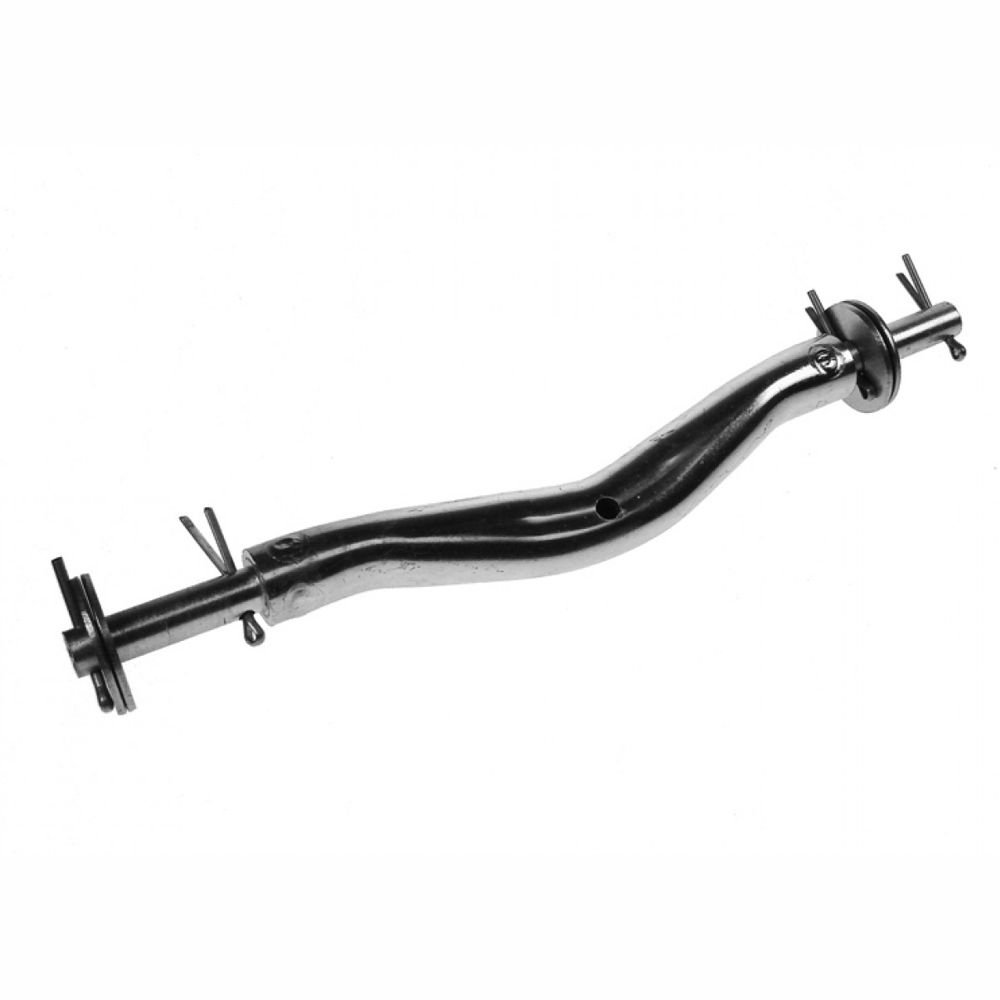

This Wobble Roller Bracket 14.5mm Spindle (MPN TR17105) is a heavy-duty boat trailer component designed to carry a pair of ribbed wobble rollers on a 14.5 mm (0.57 in) spindle. Manufactured from robust steel tube with a clear zinc plated finish, it is built to withstand marine and road environments while helping to support and guide the hull during launching and recovery. The bracket is supplied with washers and cotter (split) pins and incorporates a mounting hole sized to accept an M8 x 40 high-tensile bolt and nyloc nut, for use with the corresponding stem assembly MP4561. It is intended for twin ribbed wobble rollers such as Maypole MP1710 (two rollers). Key dimensions include a spindle length of 60.5 mm (2.38 in) and a maximum roller bore length of 39 mm (1.54 in), ensuring correct fitment and smooth rotation on compatible rollers.
Key Features:
- 14.5 mm spindle diameter (approx. 0.57 in) for compatible ribbed wobble rollers

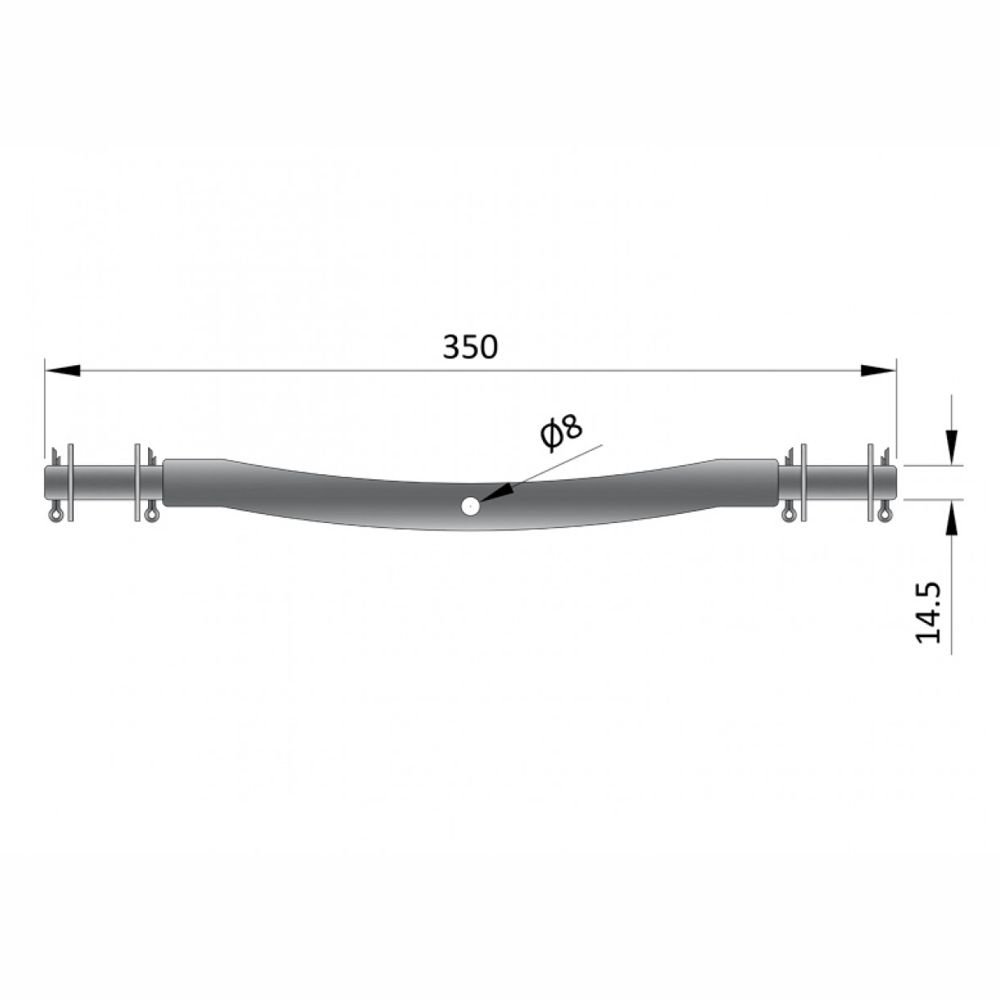

- Spindle length 60.5 mm (approx. 2.38 in) for secure roller location
- Maximum roller bore length 39 mm (approx. 1.54 in)
- Suits twin ribbed wobble rollers, e.g. Maypole MP1710 x 2
- Heavy-duty steel tube construction for durability on boat trailers
- Clear zinc plated finish for corrosion resistance in marine conditions
- Supplied with washers and cotter (split) pins for retention
- Mounting hole accepts M8 x 40 high-tensile bolt and nyloc nut (approx. 8 mm x 40 mm / 5/16 in x 1.57 in) when used with stem MP4561
- Designed for reliable roller alignment and smooth rotation
- Trade-friendly replacement for worn or damaged roller brackets
Typical Applications:
Used on boat trailers as part of the wobble roller assembly that supports and centres the hull during launching, loading and transport. Fits twin ribbed rollers such as MP1710 (two required) and is intended to be mounted via an M8 x 40 fixing to the compatible stem MP4561 or similar roller stem hardware.
Also known as:
- Ribbed Wobble Roller Bracket
- Twin Roller Bracket 14.5 mm Spindle
- Boat Trailer Roller Spindle Bracket
- Wobble Roller Arm/Spindle
- Maypole part number MP17105
Product Specifications
| L&S Part No. | TR17105 |
|---|---|
| Manufacturer | Maypole |
| OEM No. | MP17105 |
| Unit of Sale | 1 |
