Description
Overview:

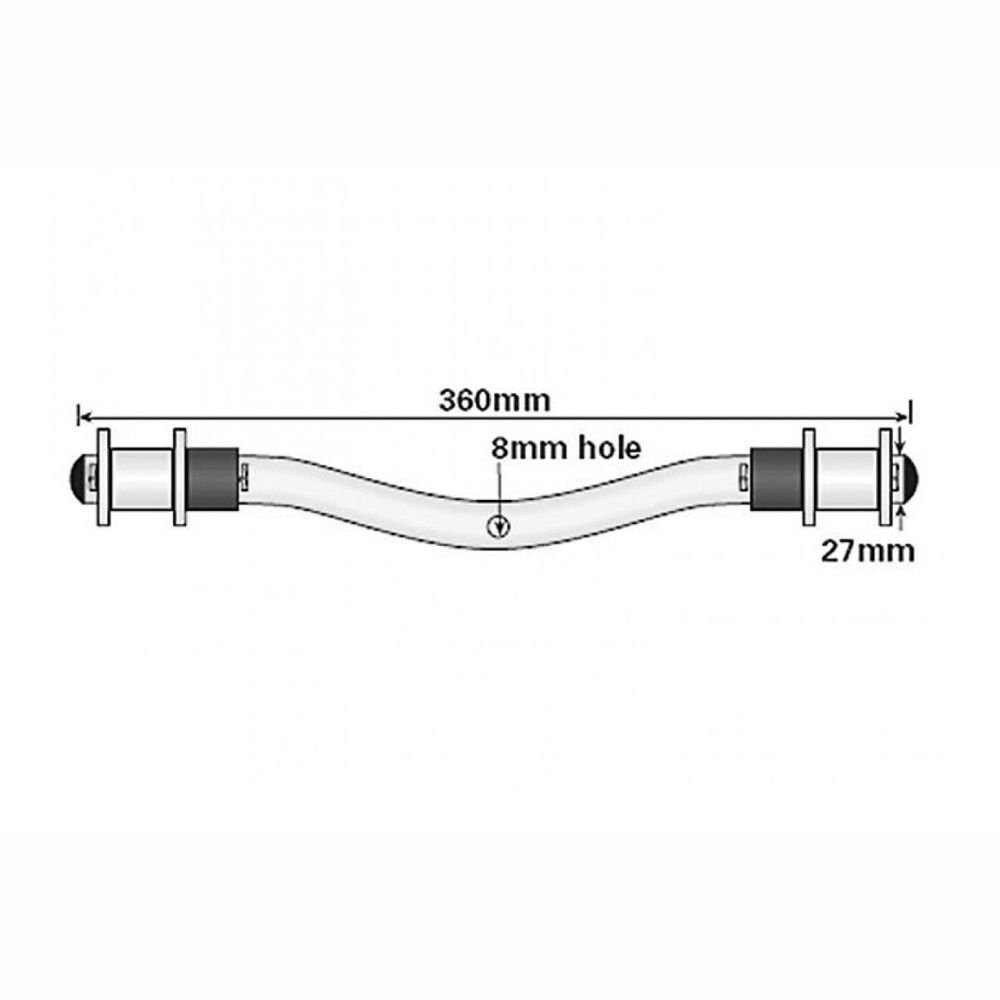

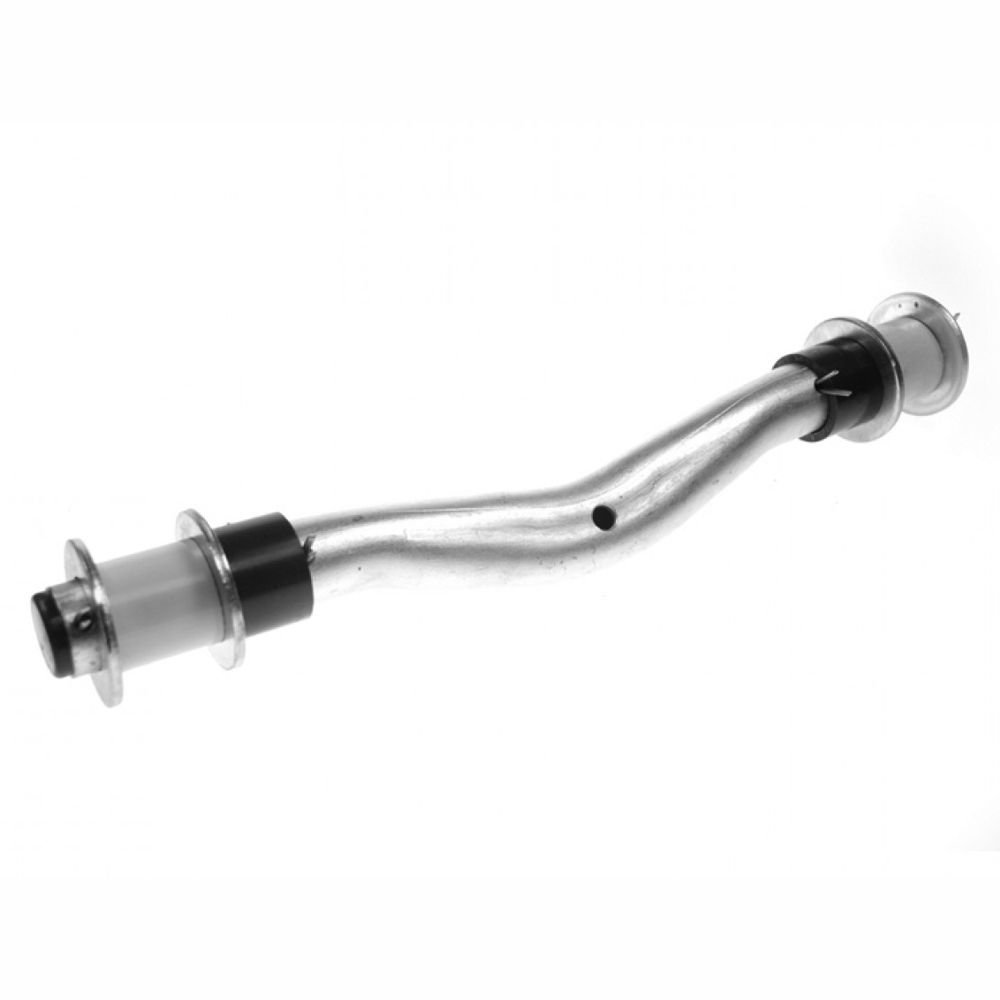

This Ribbed Wobble Roller Bracket - 32.5mm Spindle (MPN TR456) is a heavy-duty bracket for mounting ribbed wobble rollers on boat trailers. It is manufactured from robust steel tube with a clear zinc-plated finish to resist corrosion in marine and road environments. The bracket carries two ribbed wobble rollers on a 32.5 mm (1.28 in) spindle and suits a maximum roller hub/bore length of 32 mm (1.26 in). It is supplied with washers and cotter pins for securing the rollers on the spindle. A mounting hole is provided for an M8 x 40 mm (approx 5/16 in x 1.57 in) high-tensile bolt and nyloc nut when used with the corresponding Maypole stem MP4561. Intended for use on boat trailer side support assemblies, it helps support and guide the hull during launching, recovery and transport. For best results, use with Maypole ribbed wobble rollers MP4562 (two required).
Key Features:
- Spindle diameter 32.5 mm (1.28 in)
- Suits maximum roller hub/bore length 32 mm (1.26 in)
- Carries two ribbed wobble rollers (fits Maypole MP4562 x2)
- Heavy-duty steel tube construction
- Clear zinc-plated finish for corrosion resistance
- Supplied with washers and cotter pins
- Mounting hole for M8 x 40 mm high-tensile bolt with nyloc nut (bolt/nut used with stem MP4561)
- Compatible with Maypole stem MP4561 for installation
- Designed for marine trailer environments
Typical Applications:
Used on boat trailers as part of the side wobble roller assembly to support and guide the hull during loading and unloading. Suits ribbed wobble rollers Maypole MP4562 (two per bracket) and installs to the trailer arm using the compatible Maypole stem MP4561 with an M8 x 40 mm fixing. Suitable for refurbishing or replacing worn roller brackets on roller-bed boat trailers.
Also known as:
Wobble Roller Spindle Bracket
Ribbed Roller Carrier Bracket
Twin Wobble Roller Bracket
Roller Mount Bracket 32.5 mm
Maypole part number MP456
Product Specifications
| L&S Part No. | TR456 |
|---|---|
| Manufacturer | Maypole |
| Unit of Sale | 1 |
