Description
Overview:

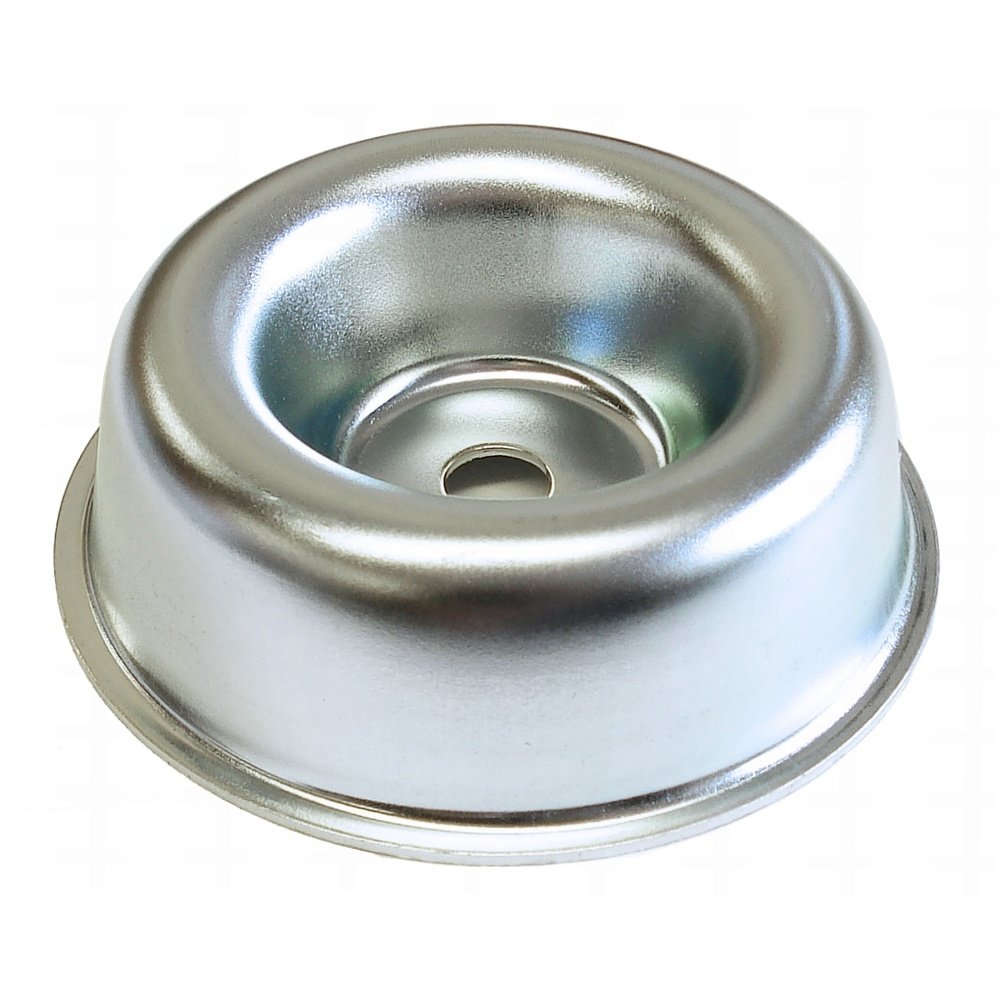

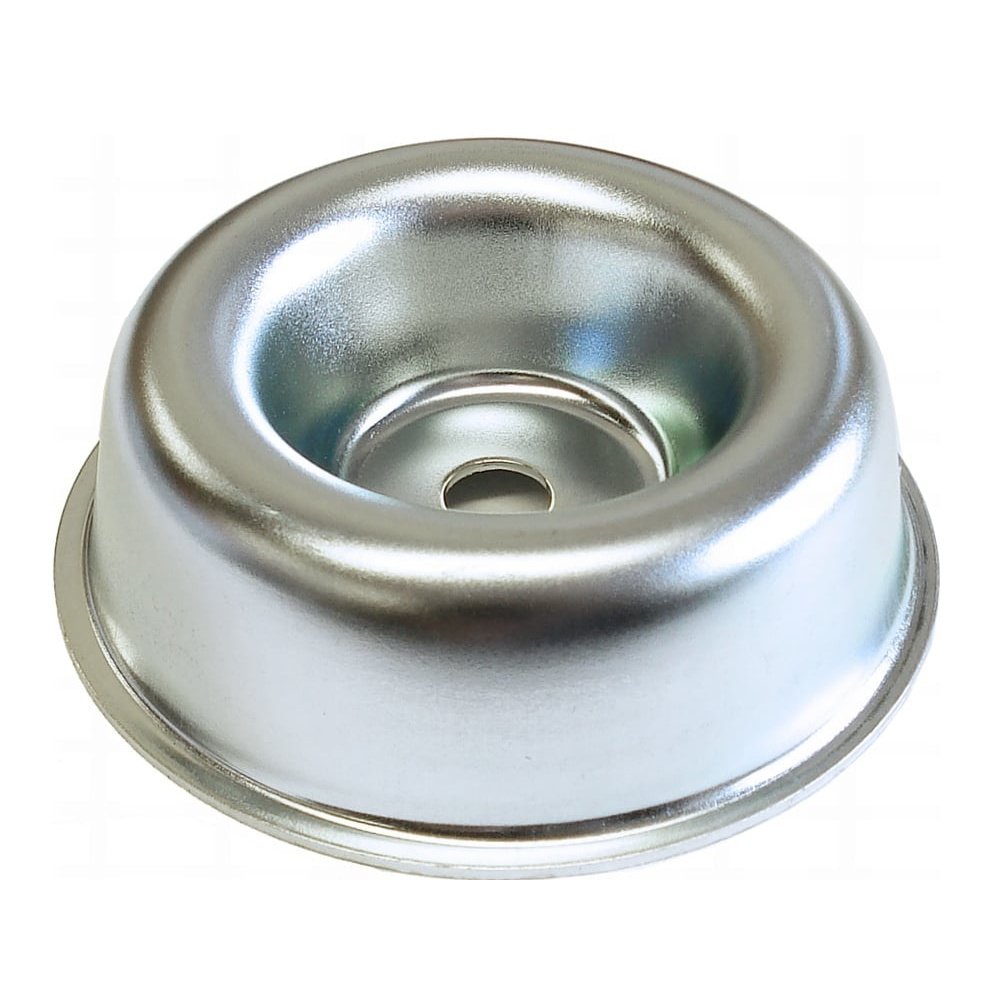

This rider cup is a pressed steel support for brushcutter blades, used to control cutting height and stabilise the blade during work. Made from durable steel with a protective finish, it sits between the gearbox collar and blade to keep the blade level over uneven ground and to reduce scalping. The centre hole is 12 mm (approximately 0.47 inches) for machines that use a 12 mm mounting. Key dimensions are 25 mm height (approximately 1 inch) and 82 mm outer diameter (approximately 3.2 inches). Suitable for use with both metal and heavy-duty plastic blades on brushcutters and clearing saws, it offers a robust, tidy interface that helps deliver a cleaner cut and longer component life. Manufacturer Part Number (MPN): 350 183.
Key Features:
- Durable pressed steel construction with a protective finish for long service life
- 12 mm centre hole (approximately 0.47 inches) suits blade mounts using 12 mm hardware
- 25 mm height (approximately 1 inch) maintains consistent cutting clearance
- 82 mm outer diameter (approximately 3.2 inches) provides stable support under the blade
- Helps prevent ground contact and blade scalping on uneven terrain
- Compatible with metal and plastic brushcutter blades for flexible use
- Smooth, domed profile encourages gliding over turf and obstacles
- Aids straight, even cuts and improves machine control
- Simple to fit using standard blade clamping hardware on compatible heads
- Direct replacement for MPN 350 183
Typical Applications:
Used on brushcutters for grass, weeds, brambles and light scrub, especially where a consistent cutting height is needed. Ideal for gardens, estates, landscaping, grounds maintenance, local authority work and agricultural tidying. Helps reduce blade wear and protects the ground by keeping the blade at a controlled height.
Also known as:
Rider plate, blade holder, blade spacer, thrust cup, blade support cup, height control cup, brushcutter rider plate. These terms refer to the cup-shaped support that sits under the blade to set height and increase stability during cutting.
Product Specifications
| L&S Part No. | 350 183 |
|---|---|
| Unit of Sale | 1 |
| Size | Height: 25mm x O/D: 82mm x Centre Hole: 12mm |
| Machine Type | Brushcutters |
