Description
Overview:

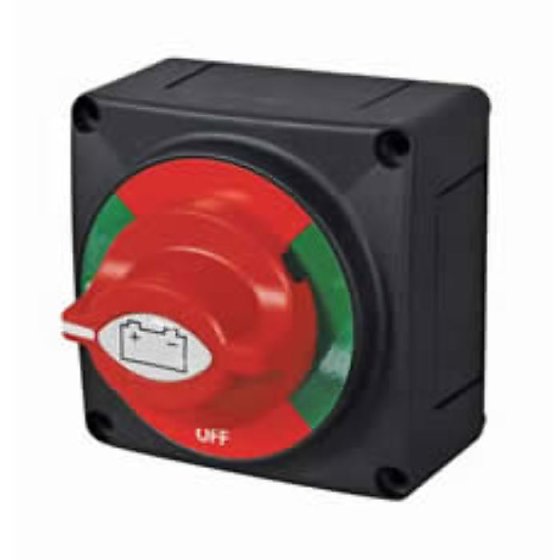

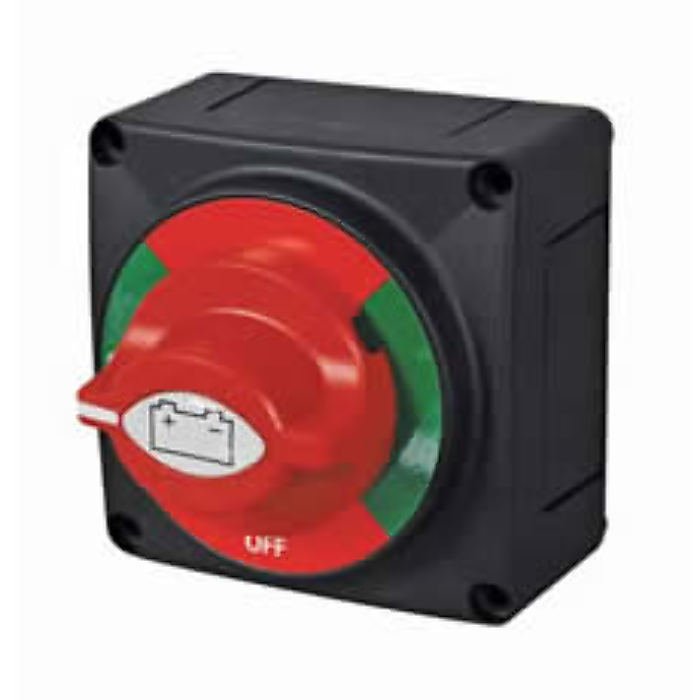

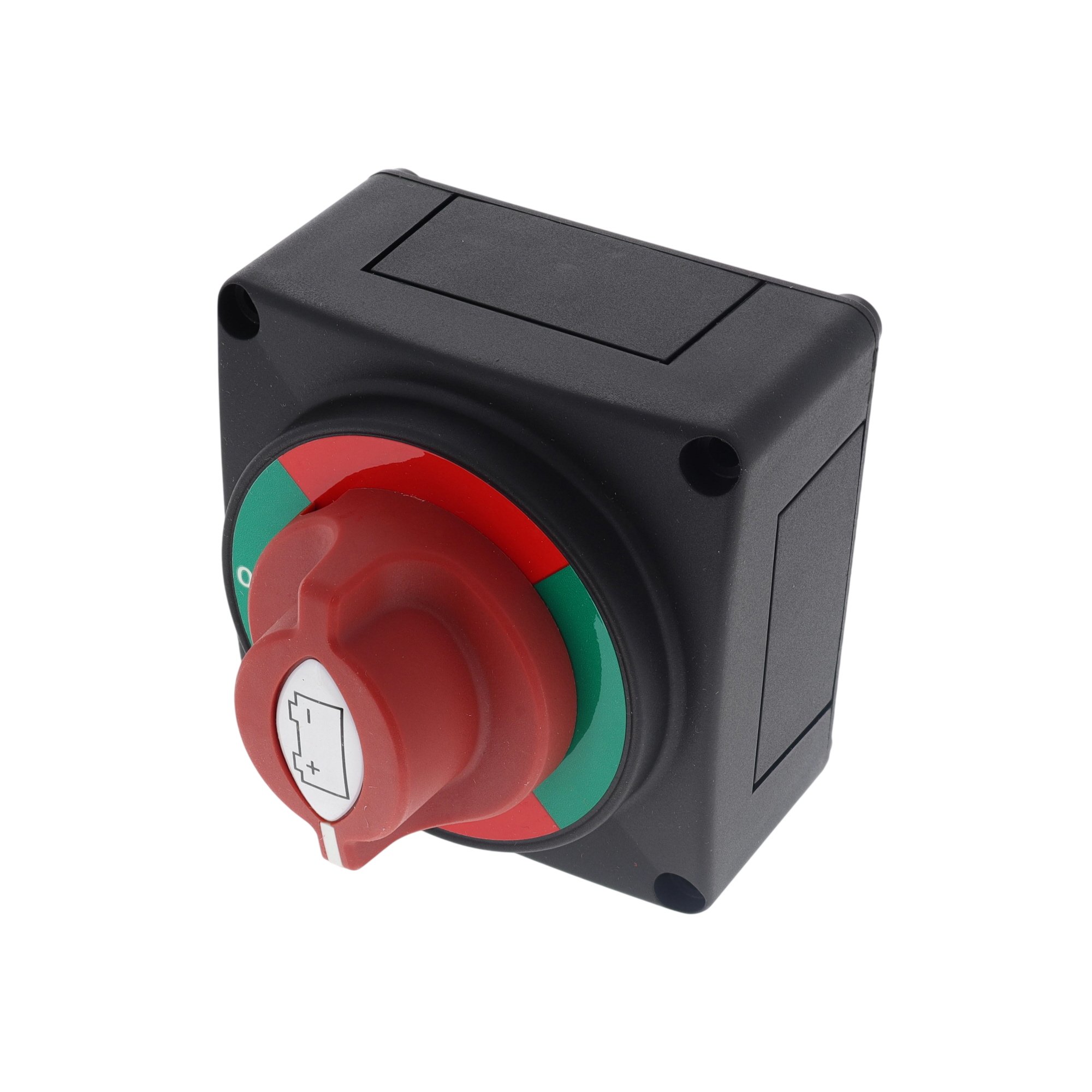

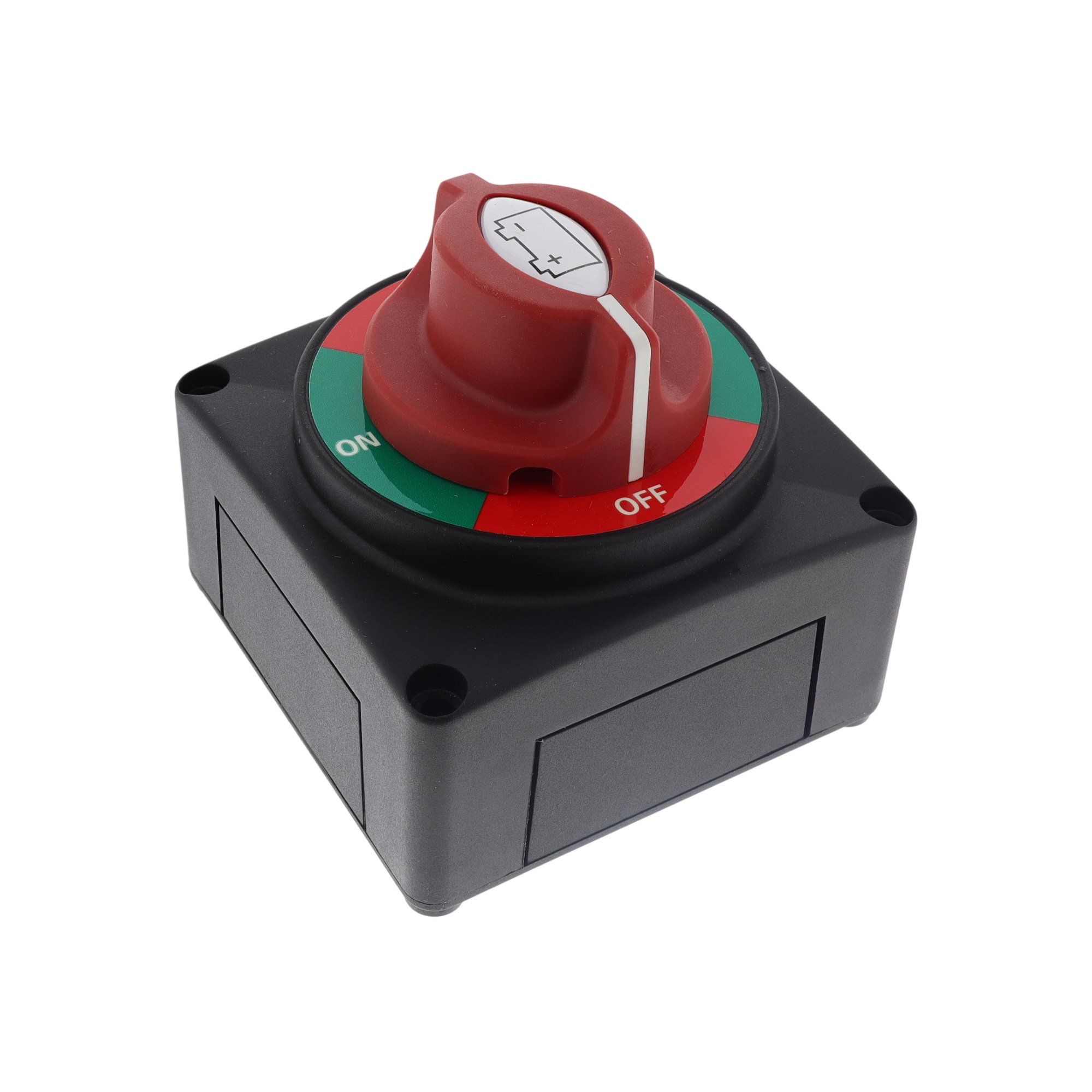

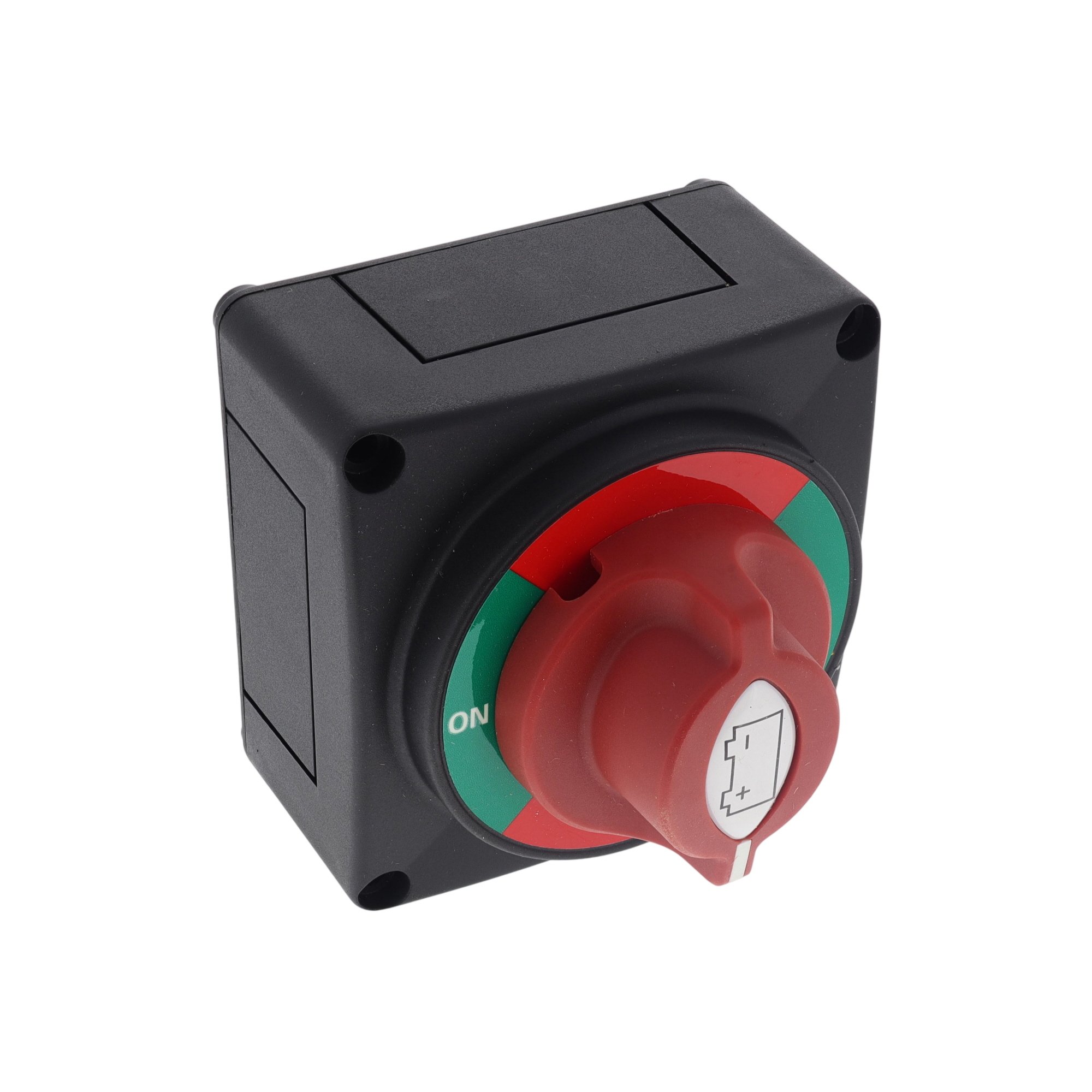

The Rotary Marine Battery Isolator with Fixed Control Knob is designed to effectively disconnect and secure electrical systems in marine environments. Constructed to manage high current demands, it offers a fixed control knob that stays in the 'off' position and includes a padlock hole for added security. This unit handles up to 550 amps continuously for one hour and withstands surges of up to 2500 amps for 5 seconds. Built to comply with CE standards, it supports a maximum of 48 volts DC and features M12 studs for reliable connections.
Key Features:
- Rated for 550 amps continuous current for one hour
- Supports surge currents up to 2500 amps for 5 seconds
- Compatible with 48 volts DC electrical systems
- Equipped with a fixed knob for secure operation
- Includes padlock hole for enhanced safety
- Features durable M12 studs for robust connections
- CE approved for compliance with safety standards
- Dimensions: 102mm length, 90mm width, 102mm height
Typical Applications:
This battery isolator is typically used in marine settings to control and secure power to motors, lighting systems, and auxiliary equipment. Suitable for both commercial and recreational vessels. It is also useful in workshop environments to manage battery disconnection in safety-critical operations.
Also known as:
0-605-12, 060512, Marine Battery Disconnect Switch, Rotary Isolator Switch, Electrical Master Switch.
Product Specifications
| L&S Part No. | 125 2954 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Durite |
| OEM No. | 0-605-12 |
| Unit of Sale | Each |
| Key Features | - Fixed control knob with padlock hole for security - Rated at 550 amps continuous for one hour - Handles up to 2500 amps for 5 seconds - Suitable for max 48 volts DC systems - Dimensions: 102 x 90 x 102mm, CE approved |
