Description
Overview:

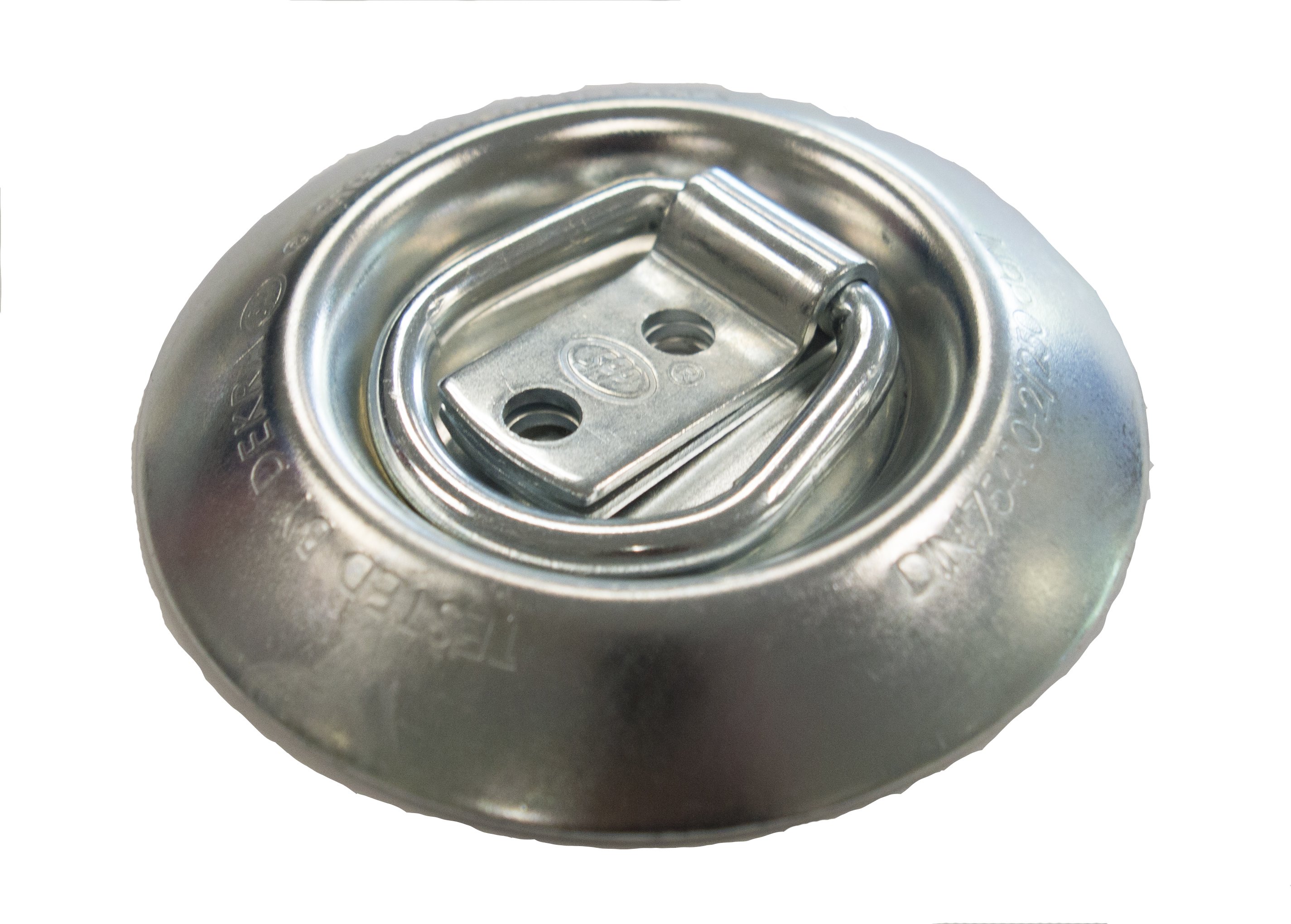

This round surface-mount lashing ring with metal surround (MPN 763 307) provides a fixed anchor point for securing loads on trailers, vans, pickups and plant transport. The assembly is zinc plated for general corrosion resistance and durability in everyday commercial use. It mounts directly to a flat surface using three clearance holes and offers a 250 kg working load capacity, making it suitable for restraining cargo with straps, ropes or bungee hooks. Supplier drawing dimensions are provided for accurate selection and installation: A 97 mm (3.82 in), B 18 mm (0.71 in), D 13 mm (0.51 in), E 33 mm (1.30 in), with three 6.5 mm (0.26 in) fixing holes. The round surround helps present a tidy, protected aperture for the ring and spreads load into the mounting surface. Use on timber decks, steel platforms or bulkheads where a robust, compact tie-down point is required. This is a straightforward surface-fit component suited to workshops, fleet maintenance and body builders specifying reliable lashing points on goods vehicles and trailers.
Key Features:
- Round surface-mount lashing ring with metal surround
- Zinc plated finish for general corrosion resistance
- 250 kg load capacity (approx. 551 lb)
- Three 6.5 mm fixing holes (approx. 0.26 in) for surface mounting
- Supplier drawing dimensions: A 97 mm (3.82 in); B 18 mm (0.71 in); D 13 mm (0.51 in); E 33 mm (1.30 in)
- Compact round profile suitable for use with straps, hooks and rope eyes
Typical Applications:
Used as a tie-down point on trailer beds, van floors and bulkheads, pickup load areas, plant and machinery transporters, and general-purpose goods vehicles. Ideal where a low-profile, round surface-fit lashing point is needed to secure cargo with ratchet straps or ropes.
Also known as:
Tie Down Ring
Load Lashing Point
Surface Mount Tie-Down Ring
Round Lashing Eye
Maypole part number MP81409B
Product Specifications
| L&S Part No. | 763 307 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
| Key Features | - Zinc plated for corrosion resistance - 250 kg working load capacity - Three 6.5 mm fixing holes - Dimensions: A 97 mm, B 18 mm, D 13 mm, E 33 mm - Suitable for trailers, vans, pickups, and plant transport |
