Description
Overview:

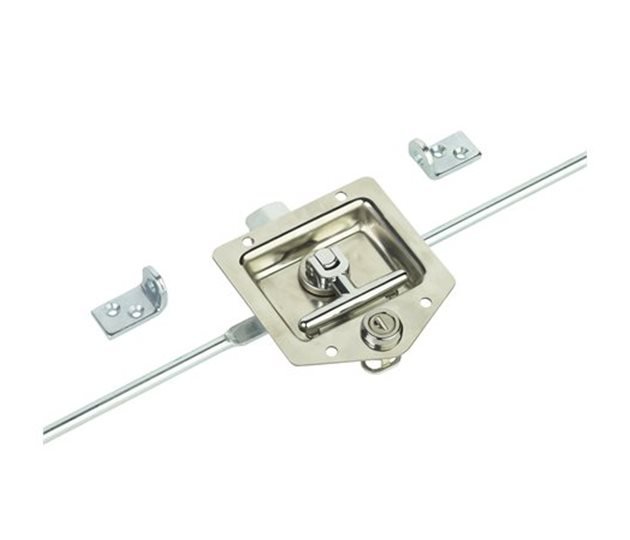

This 3-point locking rod lock with recessed T-handle (MPN 800 1305) is a stainless steel assembly for secure multi-point door closure on commercial vehicle bodies and enclosures. It comprises a polished stainless recessed drop T handle with rubber gasket, two linkage rods and two rod guides. The 3-point action secures the top, bottom and centre of the door to reduce flex and improve security in service. The assembly is keyed alike for fleet convenience, so multiple locks can be operated with the same key set. Main dimensions include a 2352 mm overall rod length (approximately 92.6 in), a 25.5 mm throw (about 1.00 in) and Ø9.5 mm rods (3/8 in). Typical use is on truck and trailer side doors, roller shutters and compartment access on plant, bus and specialist bodywork.
Key Features:
- Stainless steel construction with polished finish for corrosion resistance
- Recessed drop T handle with rubber gasket for a flush, weathered fit
- 3-point locking action for top, bottom and centre engagement
- Keyed alike locking for common key access across multiple locks
- Overall rod length: 2352 mm (approx. 92.6 in)
- Throw: 25.5 mm (approx. 1.00 in)
- Linkage rods: Ø9.5 mm (3/8 in)
- Fixing holes: Ø5.5 mm countersunk (approx. 7/32 in)
- Supplied with two rods and two rod guides
- Suitable for new build or replacement on commercial bodywork
Typical Applications:
Used on trucks, trailers and buses for side doors and rear shutters, on plant and genset enclosures, horseboxes and cab compartments, and for roller shutter or compartment doors where a robust 3-point rod lock is required.
Also known as:
3-point rod lock; Recessed T-handle lock; Drop T handle latch; Three-point door lock; Trailer door rod system
Product Specifications
| L&S Part No. | 800 1305 |
|---|---|
| Unit of Sale | 1 |
