Description
Overview:

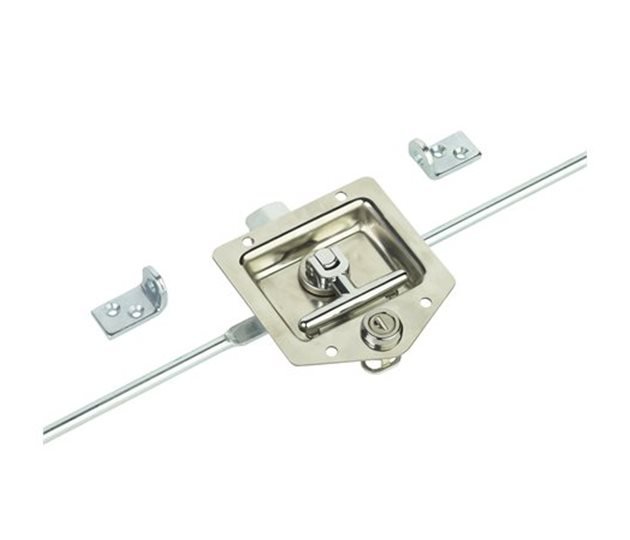

3-Point Drop T Handle Rod Lock, Stainless Steel, Mixed Keys, 2352mm (MPN 800 1304) is a recessed T-handle rod locking assembly for commercial vehicle and equipment doors. It is manufactured from polished stainless steel and supplied with a rubber gasket to help seal the handle recess against the door skin. The mechanism provides secure three-point engagement via the centre latch and two linkage rods, delivering positive closure across taller doors and shutters. This locking version is supplied on mixed keys (keyed to differ) for fleet and compartment security. The assembly includes the recessed drop T handle, two rods and two rod guides, with a 25.5 mm throw driving Ø9.5 mm rods. With a length of 2352 mm (92.6 in), it suits a wide range of lockers and compartments on trucks, trailers, buses, horseboxes, gensets, cabs and roller shutters.
Key Features:
- Stainless steel construction for corrosion resistance
- Polished finish for a clean, durable appearance
- 3-point locking action, mixed keys (keyed to differ)
- Length: 2352 mm (92.6 in)
- Throw: 25.5 mm (1.00 in)
- Linkage rods: Ø9.5 mm (3/8 in)
- Fixing holes: Ø5.5 mm (7/32 in) countersunk
- Recessed drop T-handle with rubber gasket
- Supplied with two rods and two rod guides
- Suited to exterior lockers and shutters on commercial bodies
Typical Applications:
Used on truck and trailer body side doors, tool lockers, bus and coach compartments, horsebox lockers, generator set enclosures, cab storage doors and roller shutter closures where a robust three-point locking system is required for secure and even door compression across the height of the panel.
Also known as:
Three-way door locking kit; Multi-point door lock assembly; Recessed locker handle set; 3-point rod control lock
Product Specifications
| L&S Part No. | 800 1304 |
|---|---|
| Unit of Sale | 1 |
