Description
Overview:

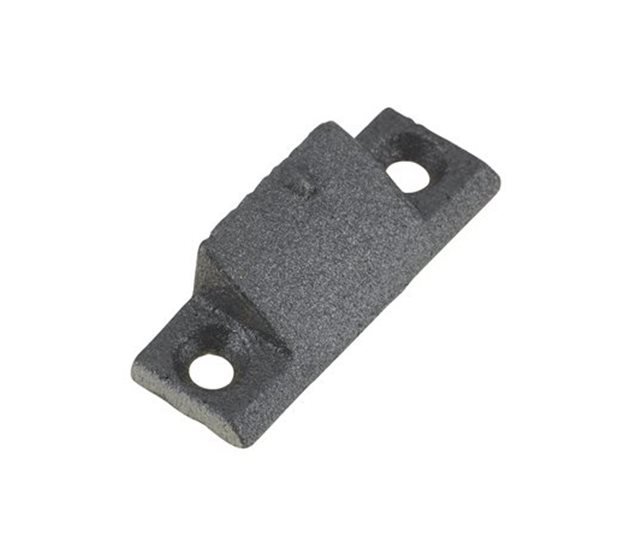

Slam Lock Striker Plate 51.7mm (MPN 800 1171) is a malleable iron striker plate for single-stage slam lock systems used on commercial vehicle and equipment doors. Manufactured from robust malleable iron with a self colour finish, it provides the strike surface for the mating slam latch. The plate incorporates a white nylon tongue to interface with the latch mechanism. Key dimensions are 51.7 mm (2.04") in length, 17.5 mm (0.69") in width and 12.4 mm (0.49") in thickness, with Ø4 mm (5/32") fixing provision. Suitable for body and enclosure builders and fleet maintenance, this component is commonly specified on trucks, trailers and buses, as well as generator sets and other equipment enclosures where a positive slam action is required. Supplied by Albert Jagger, it is intended for integration into slam lock assemblies on doors, hatches and access panels where a compact striker footprint is needed.
Key Features:
- Material: Malleable iron
- Finish: Self colour with white nylon tongue
- Length: 51.7 mm (2.04")
- Width: 17.5 mm (0.69")
- Thickness: 12.4 mm (0.49")
- Fixing: Ø4 mm (5/32")
- Type: Single-stage slam lock striker plate
- Brand: Albert Jagger
Typical Applications:
Used as the mating strike for slam locks on commercial vehicle doors and access panels, including trucks, trailers and buses. Also fitted to generator set enclosures (gensets), horsebox doors and vehicle cabs, where a compact, durable striker is required for reliable slam-latching.
Also known as:
Slam lock keeper
Door striker plate
Keeper plate
Striker catch
Striker bracket
Product Specifications
| L&S Part No. | 800 1171 |
|---|---|
| Unit of Sale | 1 |
