Description
Overview:

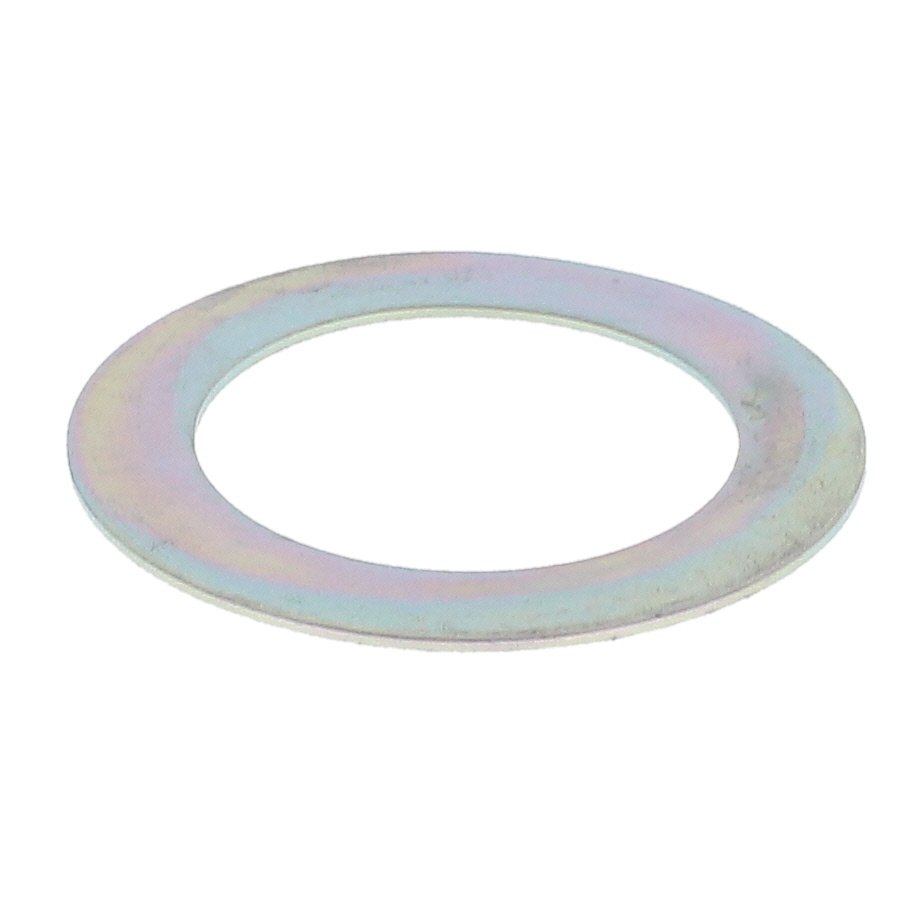

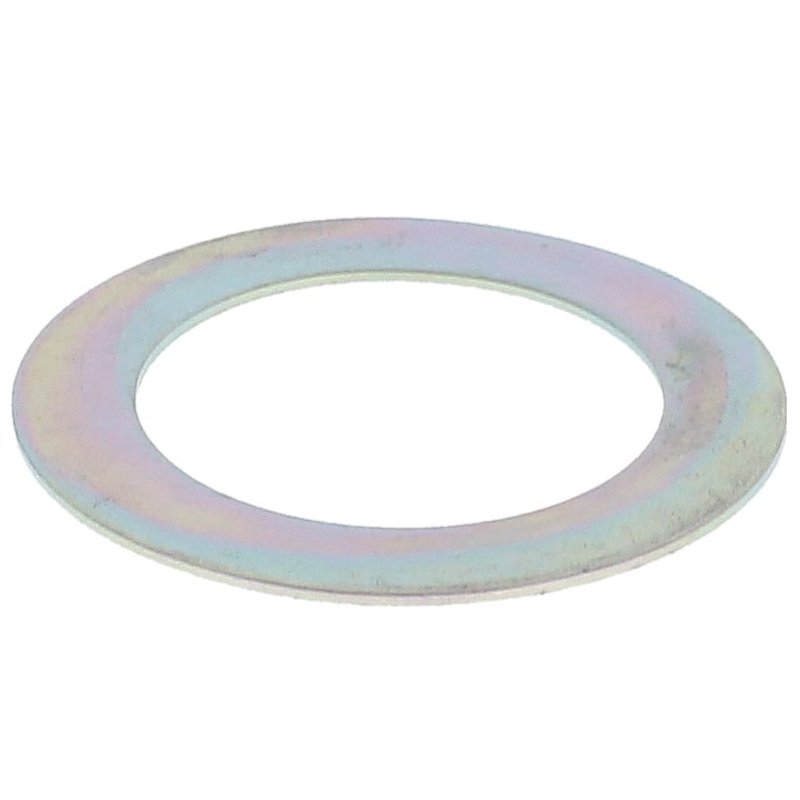

This precision shim is a flat, steel spacing plate used to set accurate clearances in JCB machinery. It replaces OEM No. 823/00220 and is suitable for use across popular backhoe loaders such as the JCB 3CX and 4CX. The shim helps maintain correct alignment and preload in mechanical assemblies, supporting smooth operation and even wear. Dimensions are 51 x 76 x 1.4 mm (approx 2 x 3 x 0.06 inch), making it easy to identify and match to existing stacks. Made from durable, precision-cut material for consistent thickness, it is a dependable choice for routine maintenance and rebuilds. This is a Non Genuine Part that offers a practical, cost-effective alternative while remaining compatible with the intended applications.
Key Features:
- Non Genuine Part that replaces JCB OEM 823/00220
- Precision thickness: 1.4 mm (approx 0.06 inch) for reliable clearance control
- Size: 51 x 76 mm (approx 2 x 3 inch) for easy identification and stacking
- Robust steel construction resists crushing and deformation under clamping loads
- Consistent, smooth faces for accurate shim stacks and repeatable assembly
- Helps restore correct alignment, reduce play, and improve component life
- Simple drop-in fit in place of worn or missing shims; no modifications required
- Suitable for use singly or in combination with other shims to fine-tune settings
- Cost-effective alternative for routine servicing and component rebuilds
Typical Applications:
Used to set or restore clearances in pivots, linkages, and housings on JCB plant. Common around loader arms, backhoe linkages, king post and chassis interfaces, axle mounts, gearbox or cover joints, and hydraulic pump/bracket assemblies where precise spacing is needed for smooth movement and reduced wear.
Also known as:
Packing shim, thickness shim, alignment shim, setting shim, adjustment washer, shim washer, distance piece, spacer plate, precision spacer.
Fits Models:
100C-1, 1400B-4WD, 1550B-2WD, 1550B-4WD, 1600B-2WD, 1600B-4WD, 1700B-2WD, 1700B-4WD, 214E, 214E/3CX, 2CX, 2CX-SM, 2CXL, 2CXS, 2CXSL, 2CXSM, 2DX, 2DX Low Emission, 2DXL1400B-2WD, 3C, 3C 1400, 3C 1400-2WD, 3C 1400-4WD, 3C 1550, 3C 1550-2WD, 3C 1550-4WD, 3C-2WD, 3CX, 3CX20KPH, 3CX30KPH, 3CX35KPH, 3CXE, 3D 1700, 3D 1700-2WD, 3D 1700-4WD, 3D-2WD, 3D-4WD, 3DS-2WD, 3DS-4WD, 3DX, 3DX BSIII, 3DX ED, 3DX Hammermaster, 3DX Loader, 3DX Super, 3DX Xtra BSII, 3DXI, 3DXL, 4C, 4C 30KPH, 4C 35KPH, 4C Super, 4C Turbo, 4C-2WD Turbo, 4C-4WD Turbo, 4CN, 4CN 30KPH, 4CN 35KPH, 4CS, 4CSuper, 4CTurbo, 4CX, 4DX, 4DX BSIII, 4DX-BSII, 413, 413K, 413S, 417, 417Tier4, 418S AG, 419S T4F, 515-40, 520-40, 520-50, 520-50 LE, 524-50, 527-55, 65R-1, 67C-1, 8052, 8056, 8060, 8061 CTS, 85Z-1, 85Z-1 T2, 86C-1, 86C-1 T2, 86C-1 TAB, 90Z-1, Centremount.Advanced
Alternate Part Numbers:
823/00220, 82300220
Product Specifications
| L&S Part No. | 900 906 |
|---|---|
| Part Type | Non Genuine Part |
| OEM No. | 823/00220 |
| Unit of Sale | 1 |
| Applications | 100C-1, 100C1, 1400B-4WD, 1550B-2WD, 1550B-4WD, 1600B-2WD, 1600B-4WD, 1700B-2WD, 1700B-4WD, 214E, 214E/3CX, 214E3CX, 2CX, 2CX-SM, 2CXL, 2CXS, 2CXSL, 2CXSM, 2DX, 2DX Low Emission, 2DXL1400B-2WD, 3C, 3C 1400, 3C 1400-2WD, 3C 1400-4WD, 3C 1550, 3C 1550-2WD, 3C 1550-4WD, 3C-2WD, 3C1400, 3C1400-2WD, 3C1400-4WD, 3C1550, 3C1550-2WD, 3C1550-4WD, 3C2WD, 3CN-4WD, 3CN4WD, 3CX, 3CX20KPH, 3CX30KPH, 3CX35KPH, 3CXE, 3D 1700, 3D 1700-2WD, 3D 1700-4WD, 3D-2WD, 3D-4WD, 3D1700, 3D1700-2WD, 3D1700-4WD, 3D2WD, 3D4WD, 3DS-2WD, 3DS-4WD, 3DS2WD, 3DS4WD, 3DX, 3DX BSIII, 3DX ED, 3DX Hammermaster, 3DX Loader, 3DX Super, 3DX Xtra BSII, 3DXBSIII, 3DXED, 3DXHammermaster, 3DXI, 3DXL, 3DXLoader, 3DXSuper, 3DXSuperBSII, 3DXSuperBSIII, 3DXXtraBSII, 3DXXtraBSIII, 413, 413K, 413S, 417, 417Tier4, 418S AG, 418SAG, 419S T4F, 419ST4F, 4C, 4C 30KPH, 4C 35KPH, 4C Super, 4C Turbo, 4C-2WD Turbo, 4C-2WDTurbo, 4C-4WD Turbo, 4C-4WDTurbo, 4C30KPH, 4C35KPH, 4CN, 4CN 30KPH, 4CN 35KPH, 4CN30KPH, 4CN35KPH, 4CS, 4CSuper, 4CTurbo, 4CX, 4DX, 4DX BSIII, 4DX-BSII, 4DXBSII, 4DXBSIII, 515-40, 51540, 520-40, 520-50, 520-50 LE, 520-50LE, 52040, 52050, 52050LE, 524-50, 52450, 527-55, 527-55S409, 52755, 65R-1, 65R1, 67C-1, 67C1, 8052, 8056, 8060, 8061 CTS, 8061CTS, 85Z-1, 85Z-1 T2, 85Z-1T2, 85Z1, 85Z1T2, 86C-1, 86C-1 T2, 86C-1 TAB, 86C-1T2, 86C-1TAB, 86C1, 86C1T2, 86C1TAB, 90Z-1, 90Z1, Centremount.Advanced |
| Machine Type | Excavators |
| Fits Brands | JCB |
| Fits Models | 3CX | 8060 |
