Description
Overview:

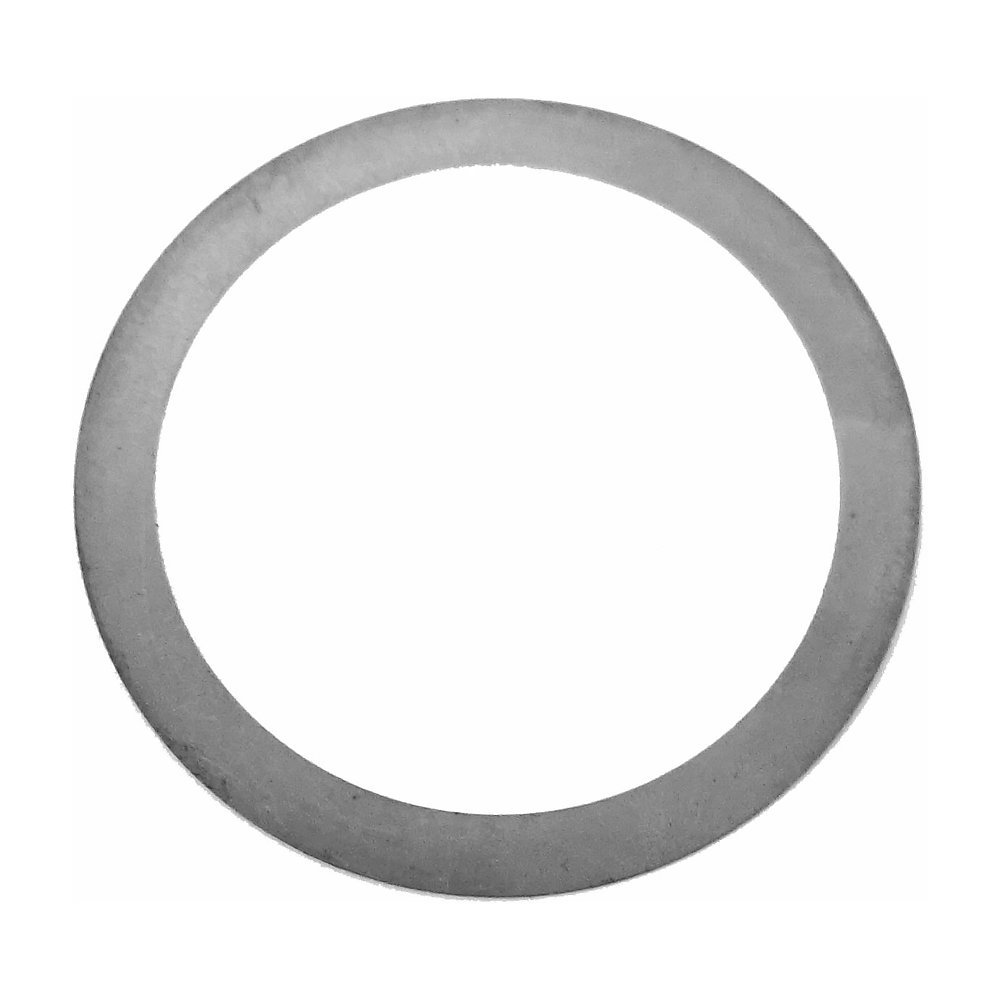

This Shim for Marles 562 Gearbox is a precision-made steel ring used to set and maintain correct gear spacing in the Marles 562 unit. Supplied as a single piece (MPN 273010), it helps control end float and backlash so the gearbox runs smoothly and quietly under load. The shim sits between mating components to fine-tune alignment, helping to protect gears and bearings from uneven wear. Suitable for use in construction, agricultural, and garden machinery that use the Marles 562 Gearbox, it is intended for routine servicing and rebuilds where accurate set-up is essential. Sold individually so you can replace only what you need, it supports reliable operation and extends service life when installed as part of a properly measured adjustment stack.
Key Features:
- Precision thickness for accurate gear spacing and alignment
- Steel construction for dimensional stability under load and temperature
- Helps control backlash and end float to reduce noise and vibration
- Supports even load distribution to minimise wear on gears and bearings
- Clean, flat faces for consistent seating and reliable measurements
- Direct fit for Marles 562 Gearbox (MPN 273010)
- Simple to install during routine service or overhaul-no modification required
- Sold individually for targeted replacement and fine adjustment
- Suitable for use in shim stacks to achieve exact clearances
- Aids smooth operation and helps maintain gearbox efficiency over time
Typical Applications:
Used during gearbox rebuilds, bearing replacement, or routine inspections to set correct clearances in the Marles 562 Gearbox. Ideal for workshops, plant hire fleets, service engineers, and DIY users needing precise adjustment after component changes. Common tasks include correcting axial play, refining gear mesh, and restoring smooth, quiet running in machinery used on construction sites, farms, estates, and gardens.
Also known as:
Spacer, distance washer, shim washer, packing shim, adjustment shim, setup shim, thrust shim, calibration washer. These terms are often used for thin, precision rings used to fine-tune component spacing in gearboxes and similar assemblies.
Product Specifications
| L&S Part No. | 273010 |
|---|---|
| Manufacturer | Marles |
| OEM No. | 273010 |
| Unit of Sale | 1 |
| Machine Type | Gearboxes |
