Description
Overview:

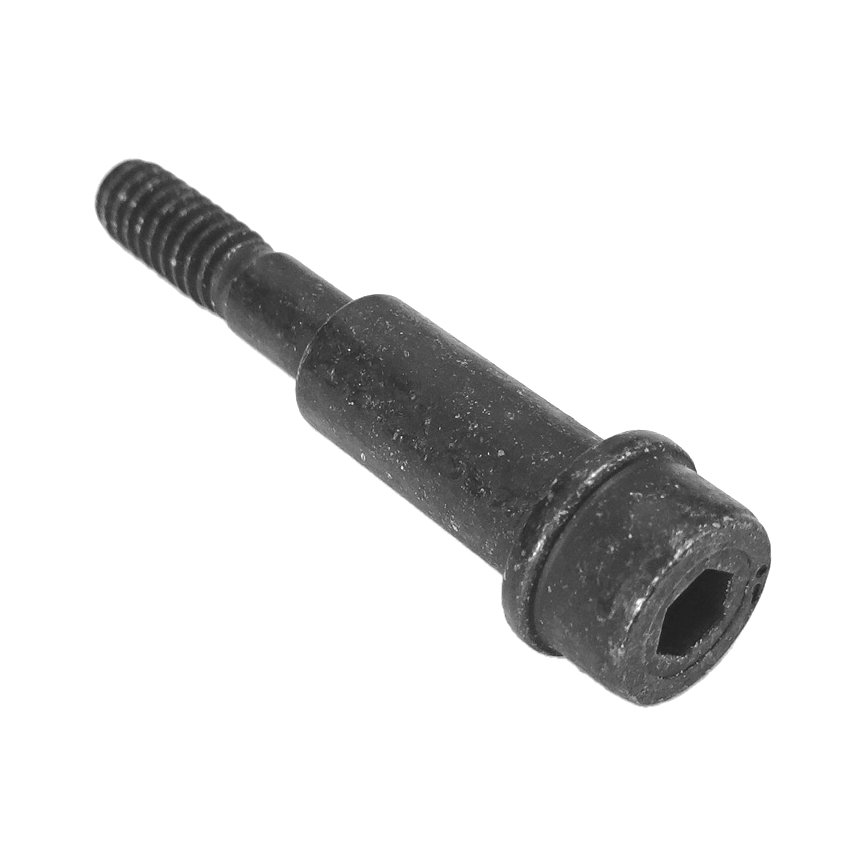

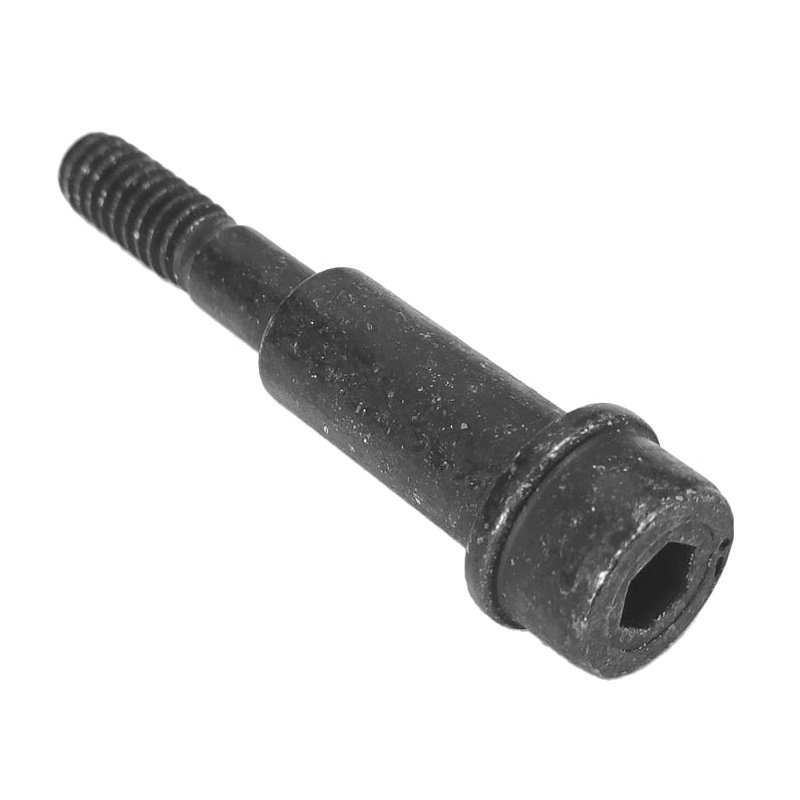

This genuine Paslode shoulder screw (MPN 901063) is a precision fastener used in Paslode gas nail guns, including the IM350 and IM350+ made post-2006. Made from durable steel with a smooth shoulder and a threaded end, it locates and secures key assemblies within the tool, helping to maintain alignment and dependable operation under vibration. The thread is 10-24 (No. 10, 24 TPI) and the overall length is 1-1/2 in (38.1 mm). The shoulder design allows moving parts to run true while the thread provides a secure clamp into the mating component. Supplied as a single, Genuine Part from Paslode/Spit for correct fit and long service life, it is suitable for routine maintenance or repair of IM350-series nailers manufactured after 2006.
Key Features:
- Genuine Paslode/Spit replacement part (MPN 901063) for correct fit and reliability
- Designed for post-2006 IM350 and IM350+ nail guns
- Size: 10-24 thread (No. 10 ≈ 4.8 mm, 24 TPI), 1-1/2 in length (38.1 mm)
- Steel shoulder provides accurate location and smooth movement of mating parts
- Withstands vibration and repetitive firing loads in on-site use
- Helps maintain alignment to reduce wear and misfires over time
- Straightforward to install with standard hand tools during routine servicing
- Suitable as a like-for-like replacement to restore tool performance
Typical Applications:
Used during servicing or repair of Paslode IM350-series nailers where a shouldered fastener is required to locate and secure internal assemblies. Common in high-load or alignment-critical positions within the tool. Ideal for scheduled maintenance to keep professional and DIY nail guns operating smoothly on construction, carpentry, and framing tasks.
Also known as:
Shoulder bolt, shouldered machine screw, 10-24 UNC shoulder fastener, retaining screw, IM350 fixing screw, Paslode locating screw, nail gun shoulder fastener.
Fits Models:
IM350
IM350+
Alternate Part Numbers:
904 3146, 9043146
Product Specifications
| L&S Part No. | 904 0487 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Paslode/Spit |
| OEM No. | 901063 |
| Unit of Sale | 1 |
| Applications | IM350, IM350+ |
| Machine Type | Nail Guns |
| Fits Brands | Paslode |
| Fits Models | IM350 | IM350+ (NiCD NiMH) |
