Description
Overview:

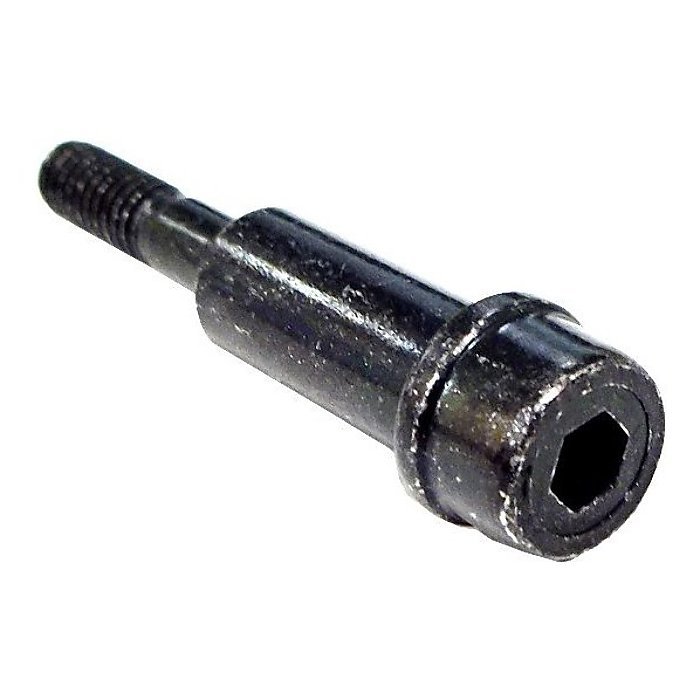

This Shoulder Screw 8-32 x 1-3/8 (approx. 3.5 mm x 35 mm) is a genuine Paslode OEM fastener designed for precise location and secure fastening in Paslode cordless nail guns. Manufactured from durable, precision-machined steel, it combines a plain shoulder with a threaded section to support moving parts while providing a reliable clamp. It helps maintain alignment and smooth operation inside the tool, reducing play and wear. Supplied under manufacturer part number 901064, it is an exact-fit replacement commonly used across the IM50 and IM65 families. Choosing a genuine part helps preserve tool performance and ensures compatibility with factory assemblies and torque settings, making it suitable for tradespeople and DIY users who need dependable, repeatable results from their Paslode equipment.
Key Features:
- Genuine Paslode part (OEM), part number 901064, for assured compatibility and quality
- Thread size 8-32 (imperial) with approximately 3.5 mm nominal diameter (metric) for correct fit in matching components
- Length 1-3/8 in (approx. 35 mm) for the required stack height and engagement
- Precision shoulder for accurate location of linkages and sliding parts
- Robust steel construction for wear resistance and long service life
- Helps restore smooth operation and prevent misalignment or looseness in the mechanism
- Consistent fit tolerances reduce the risk of vibration-related faults
- Straightforward like-for-like replacement using standard hand tools
- Suitable for professional site use and workshop maintenance routines
Typical Applications:
Replacement of a worn, bent, or missing shoulder screw within Paslode nail gun assemblies. Typical positions include areas where a guided pivot or sliding action is needed, such as magazine, nose, or linkage points. Ideal for routine servicing to keep tools driving cleanly and to minimise downtime on site or in the workshop.
Also known as:
Shoulder bolt, machine screw, pivot screw, stepped screw, shank screw, locating screw. These terms describe fasteners with a plain shoulder section used to guide or support moving parts before the threaded portion secures the assembly.
Fits Models:
IM250A, IM45GN, IM50, IM50 F18, IM50F18, IM50Li, IM65, IM65 F16, IM65A, IM65A Li, IM65ALi, IM65F16, IM65Li
Alternate Part Numbers:
904 3147, 9043147, 901064
Product Specifications
| L&S Part No. | 904 0536 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Paslode/Spit |
| OEM No. | 901064 |
| Unit of Sale | 1 |
| Applications | IM250A, IM45GN, IM50, IM50 F18, IM50F18, IM50Li, IM65, IM65 (F16, IM65 F16, IM65A, IM65A Li, IM65ALi, IM65F16, IM65Li, Lithium) |
| Machine Type | Nail Guns |
| Fits Brands | Paslode |
| Fits Models | IM65 (NiCD NiMH) | IM65 (F16 Lithium) | IM65A (F16 Lithium) | IM65A (F16 NiCD NiMH) |
