Description
Overview:
This Brake Cable Compensator Kit for Single Axle Trailers (MPN 763 153) is used on braked trailers to equalise the pull from the overrun/handbrake lever across both wheel brake cables. The compensator links the main brake rod to the left and right brake cables so tension is balanced, helping to achieve consistent braking on a single axle. It is suitable for systems that use M8 detachable or Quick/Pronto fit brake cables from Knott or AL-KO. The kit is supplied with a balance bar and the necessary threaded hardware to connect to the main linkage and to each cable end. It is intended for use on general duty, plant and transport trailers where Knott or AL-KO running gear with M8 cable ends is fitted.
Key Features:
- Suitable for M8 detachable or Quick/Pronto fit Knott and AL-KO brake cables
- Single axle compensator layout for braked trailer applications

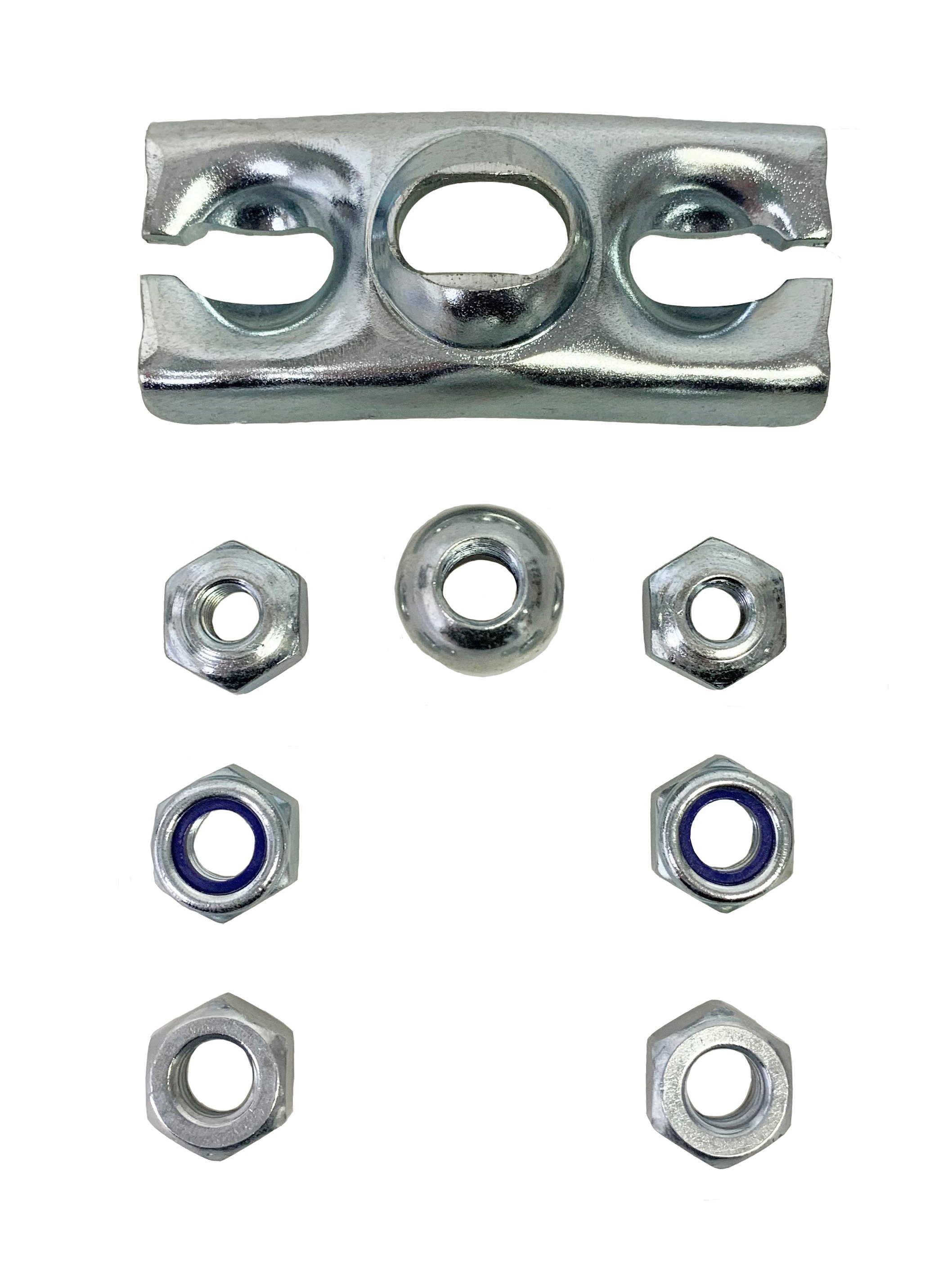

- 1 x balance bar for equalising left/right brake cable tension
- 1 x M10 ball nut with 2 x M10 lock nuts for the main brake rod connection
- 2 x M8 domed brake cable nuts with matching lock nuts for cable ends
- Thread specification: M8 cable fixings; M10 ball-joint connection
- Supplied as a complete kit ready to assemble on the linkage
- Helps achieve balanced braking effort across both wheels
Typical Applications:
Installed on the brake linkage under the chassis, between the overrun/handbrake lever and the two wheel brake cables on single axle trailers. Commonly used on plant trailers, car transporters, general duty trailers and some caravans equipped with Knott or AL-KO braking systems using M8 detachable or Quick/Pronto fit cables.
Also known as:
Brake balance bar
Brake cable equaliser
Single axle brake compensator
Knott-style compensator
Maypole part number MP4681B
Product Specifications
| L&S Part No. | 763 153 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
