Description
Overview:

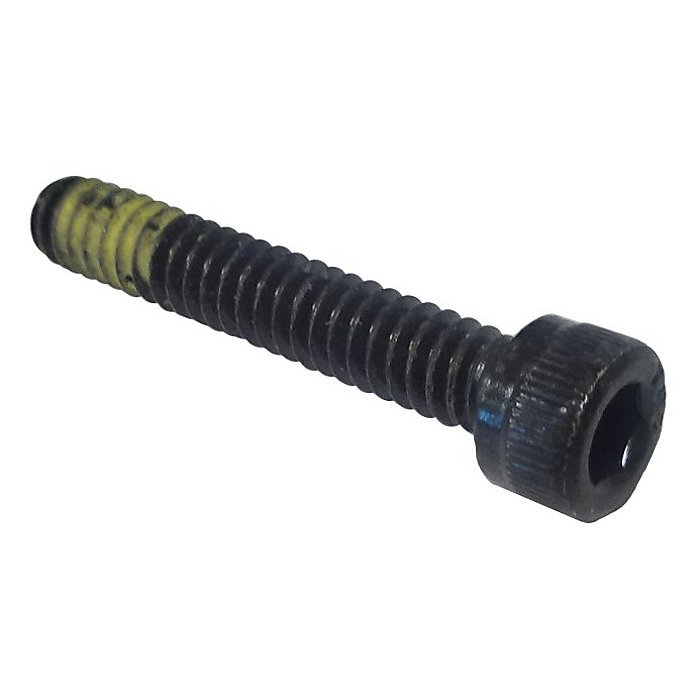

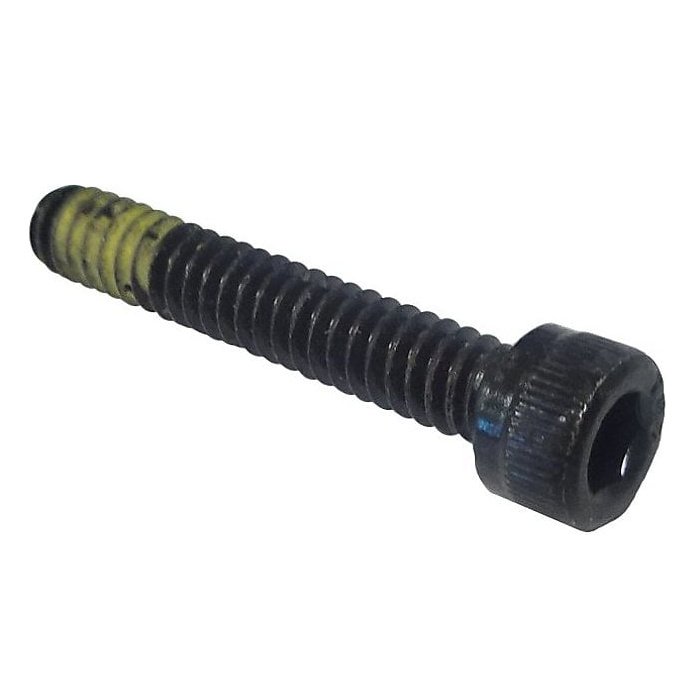

This Socket Head Capscrew is a genuine Paslode/Spit fastener designed for securing key assemblies in Paslode gas nail guns, including the IM350+ and IM350 (pre 02/06). Made from high-strength steel with a durable black finish, it provides dependable clamping force and a precise fit to help maintain alignment and integrity across the tool. The hex socket head allows positive engagement with a standard Allen key for controlled tightening. Supplied to Paslode specification under Manufacturer Part Number (MPN) 403816, it replaces worn or damaged screws to restore reliable operation. Approximate dimensions are 24 mm by 28.6 mm, with the length stated as 1-1/8 in (28.6 mm). This OEM capscrew helps prevent loosening from vibration and keeps critical components securely assembled.
Key Features:
- Genuine Paslode/Spit OEM part (MPN 403816) for assured compatibility and performance
- High-strength steel construction with a robust black finish for long service life
- Hex socket (Allen) head for controlled torque and reduced cam-out
- Precision-machined threads for smooth installation and firm retention
- Helps maintain correct alignment and clamping of nail gun components under vibration
- Direct replacement for worn or missing fasteners to restore safe operation
- Practical size reference: approx 24 mm x 28.6 mm; length 1-1/8 in (28.6 mm)
- Suitable for routine maintenance or repairs without modification
Typical Applications:
Used to secure structural parts within Paslode nail guns during maintenance or repair, such as assembling housings, frames, guides, or other fixed interfaces. Ideal for workshop servicing and on-site fast replacement to minimise downtime and maintain consistent tool performance.
Also known as:
Socket head cap screw, SHCS, Allen bolt, hex socket screw, cap-head screw, machine screw, retaining screw, fixing bolt.
Fits Models:
IM350 (pre 02/06), IM350+
Product Specifications
| L&S Part No. | 904 0224 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Paslode/Spit |
| OEM No. | 403816 |
| Unit of Sale | 1 |
| Applications | IM350, IM350+ |
| Machine Type | Nailers |
| Fits Brands | Paslode |
| Fits Models | IM350 | IM350+ (NiCD NiMH) |
