Description
Overview:

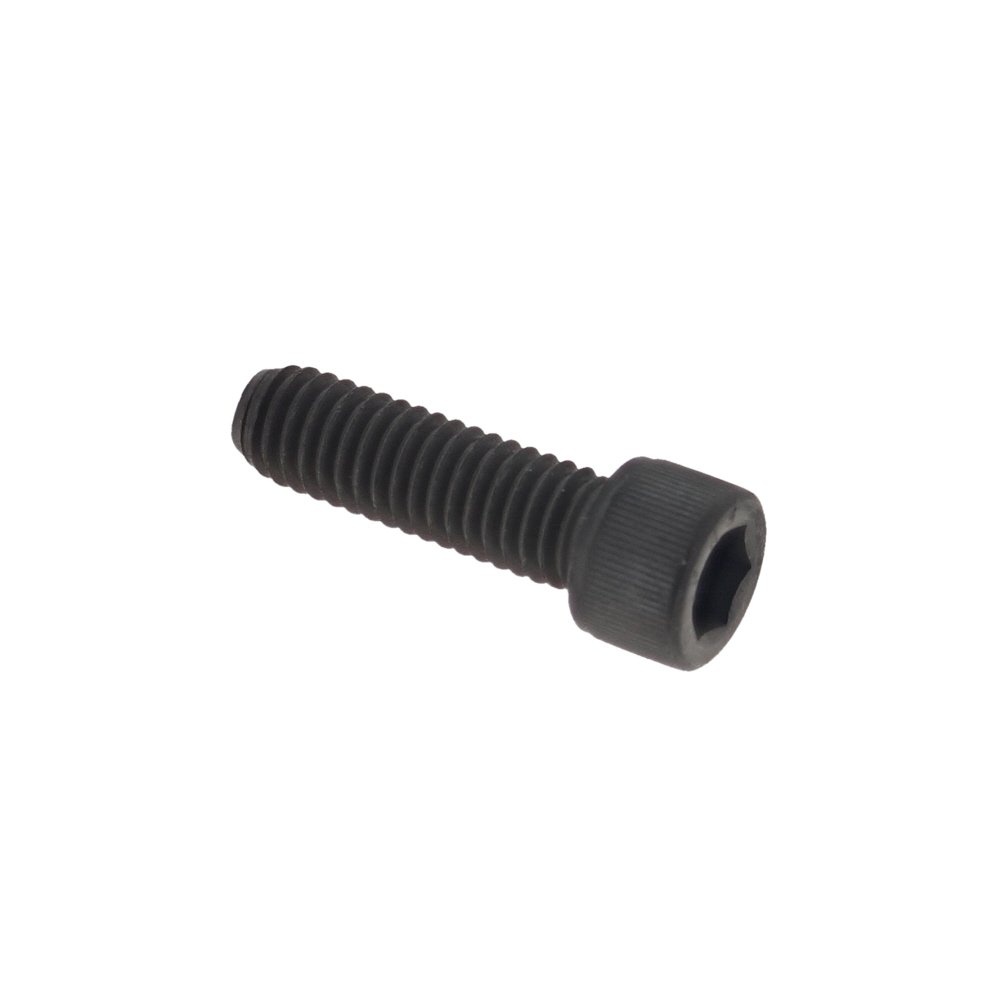

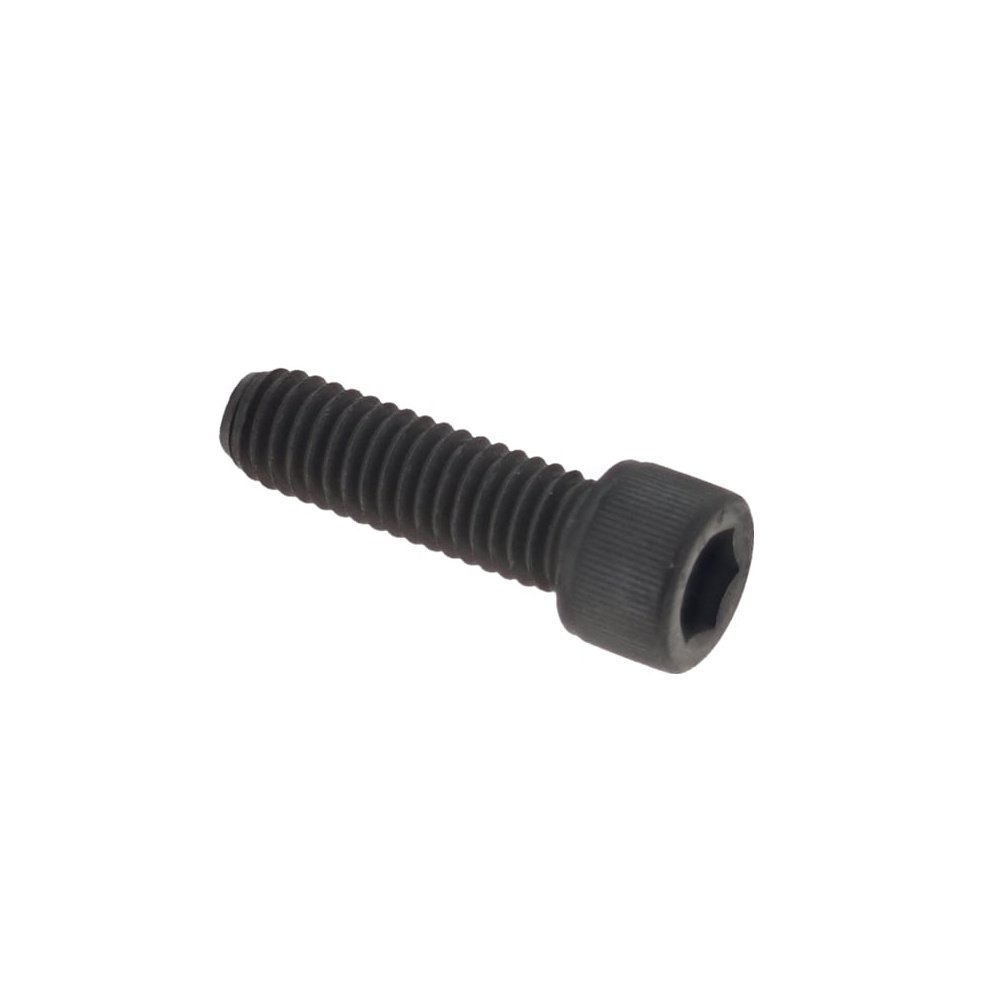

This Socket Head Screw 3/8'' x 1 1/4'' (9.53 mm x 31.75 mm) is a genuine Stihl fastener designed for accurate, reliable clamping in specialist tooling. Made from durable steel with a hex socket head, it provides positive drive and controlled tightening with a standard hex key. It is specifically intended for use with Stihl NG5 and NG7 rivet spinners, where secure fastening is essential to maintain alignment and smooth operation during chain assembly and maintenance. Supplied under OEM No. 9045 319 9015, it offers the correct fit and specification for Stihl equipment. Suitable for workshops, site maintenance, and service departments working on chainsaw chain tools and other assemblies that specify a 3/8'' socket head cap screw.
Key Features:
- Genuine Stihl part for assured fit and performance (OEM No. 9045 319 9015)
- Size: 3/8'' diameter x 1 1/4'' length (9.53 mm x 31.75 mm) for accurate replacement
- Hex socket head for secure drive with an Allen key, reducing cam-out
- Robust steel construction for strength and long service life
- Clean, precise thread for dependable clamping and repeatable tightening
- Direct replacement on NG5 and NG7 rivet spinners; easy to fit and remove
- Helps maintain stable tooling alignment and consistent spinner operation
- Suitable for routine maintenance and timely replacement of worn fasteners
Typical Applications:
Used to secure components within Stihl NG5 and NG7 rivet spinner assemblies during chainsaw chain building and repair. Ideal for workshop servicing, on-site maintenance, and replacing damaged or missing screws in tools that require a 3/8'' socket head cap screw of 1 1/4'' (31.75 mm) length.
Also known as:
Socket cap screw, Allen screw, Allen bolt, hex socket cap screw, hex drive cap screw, cap head bolt, SHCS, machine screw (socket head type). These terms are often used for the same style of hex-socket, cylindrical head fastener.
Fits Models:
NG 5 Rivet Spinner
NG 7 Rivet Spinner
NG5
NG7
Alternate Part Numbers:
9045-319-9015, 90453199015
Product Specifications
| L&S Part No. | 9045 319 9015 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 90453199015 |
| Unit of Sale | 1 |
| Applications | NG 5 Rivet Spinner, NG 7 Rivet Spinner, NG5, NG7 |
| Fits Brands | Stihl |
| Fits Models | NG 5 Rivet Spinner | NG 7 Rivet Spinner |
