Description
Overview:

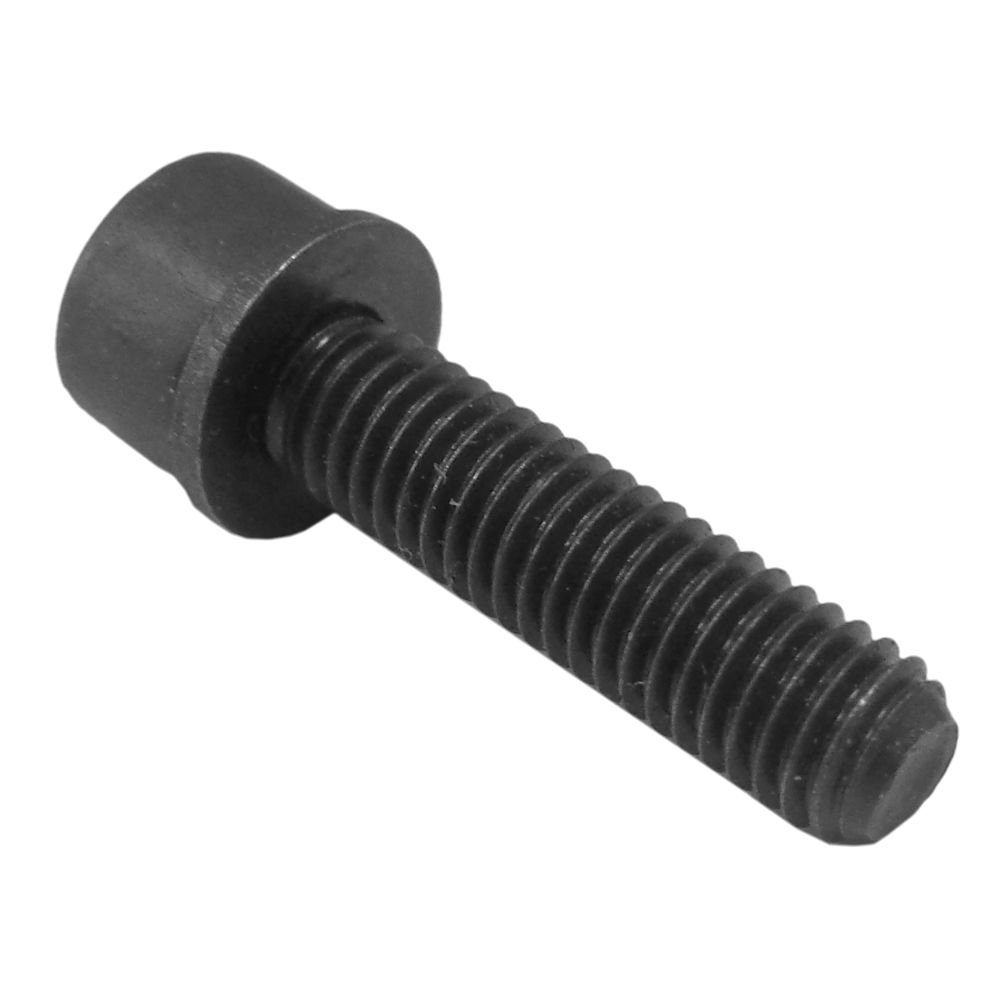

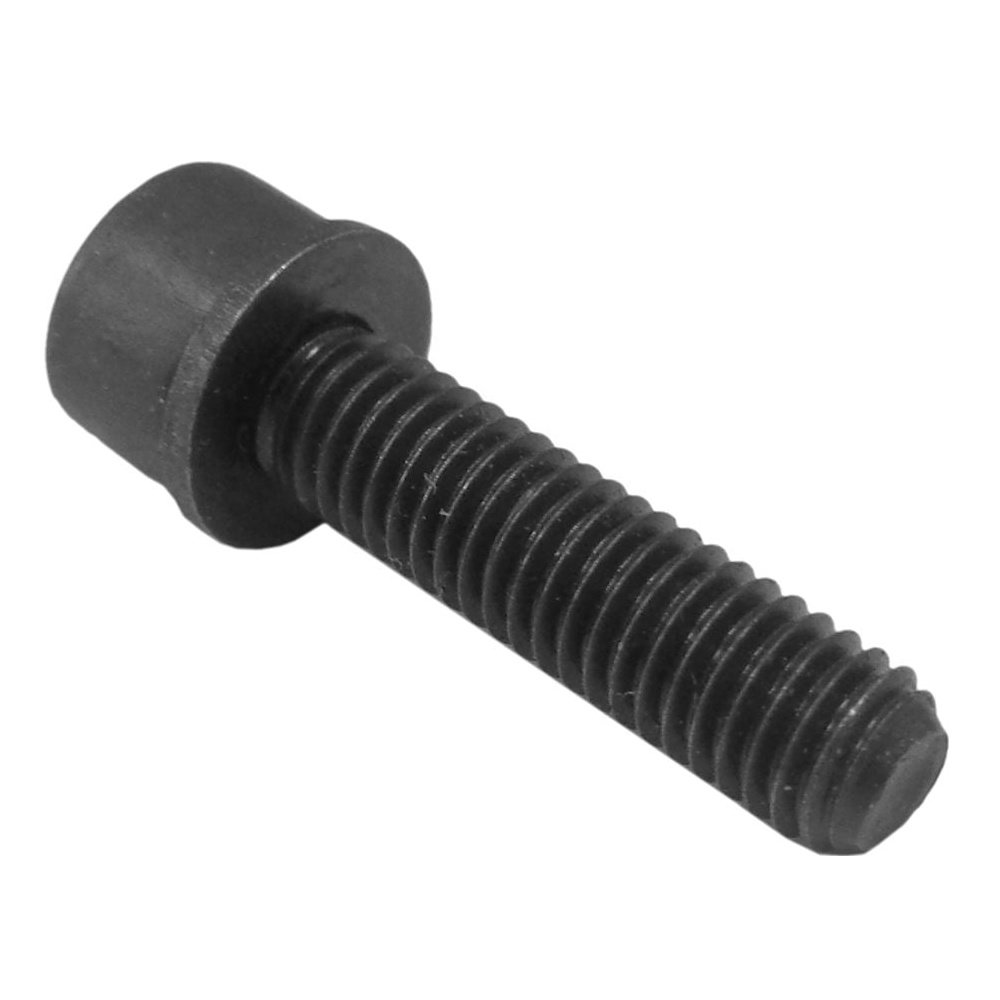

This Socket Head Screw M5x20 is a genuine Stihl fastener for securing components on a range of Stihl machines, including the 075 and 041FB chainsaws. Made from durable steel with a hex socket (Allen) head, it enables controlled tightening and a secure, vibration‐resistant hold. The precise M5 thread and 20 mm length ensure correct engagement in OEM locations for reliable performance and long service life. As an original Stihl part (MPN 9036 341 1020), it matches factory specifications for fit and function, helping to maintain machine integrity during heavy use. Ideal for maintenance and repairs, this screw is commonly used to fasten covers, housings, and structural assemblies across selected Stihl chainsaws, brushcutters, and cut-off saws where a compact, high‐strength fixing is required.
Key Features:
- Genuine Stihl part for assured compatibility and reliability (MPN 9036 341 1020)
- Metric size: M5 x 20 mm for precise fit in designated OEM positions
- Socket (Allen) head for positive torque transfer and reduced risk of cam-out
- Steel construction for strength, stability, and long-term durability
- Clean, compact head profile suits tight installation spaces on machines
- Helps maintain alignment of covers, housings, and engine/handle assemblies
- Suitable for chainsaws, brushcutters, and cut-off saws listed below
- Straightforward to install during routine servicing or repair work
Typical Applications:
Used to secure components such as crankcase covers, handle frames, fan housings, and guard assemblies on compatible Stihl equipment. Ideal for replacing worn or missing fixings to restore safe operation, maintain correct alignment under vibration, and keep serviceable parts firmly in place during cutting or clearing tasks.
Also known as:
Cap head screw, socket cap screw, hex socket screw, Allen bolt, Allen screw, metric cap screw M5 x 20, machine screw M5 x 20.
Fits Models:
030, 031, 032, 041, 041AV, 041FB, 042 AV, 045, 070, 075, 090, 090G, FS 360 C, FS 410, FS 410 AV, FS 410 C, TS 50
Alternate Part Numbers:
9036-341-1020, 90363411020
Product Specifications
| L&S Part No. | 9036 341 1020 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 90363411020 |
| Unit of Sale | 1 |
| Size | M5x20 |
| Applications | 030, 031, 032, 041, 041AV, 041FB, 042 AV, 042AV, 045, 070, 075, 090, 090G, FS 360 C, FS 410, FS 410 AV, FS 410 C, FS360C, FS410, FS410AV, FS410C, TS 50, TS50 |
| Machine Type | Chainsaws, Brushcutters, Disc Cutters |
| Fits Models | 030, 031 | FS360C FS410C | TS50 | FS410AV (old model) | 032 | 041 | 042 AV | 070 | 075 | 090, 090G | 045 |
