Description
Overview:

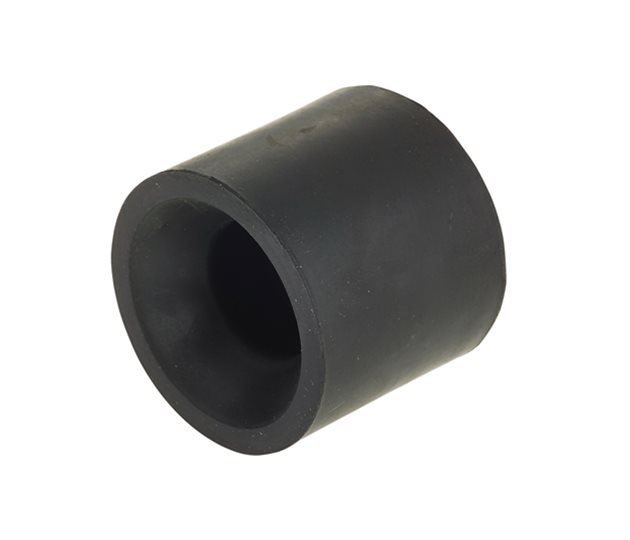

Female Door Retainer, Black Rubber, Ø7mm Fixing, 3-10kg Pull (MPN 800 1068) is a female catch made from synthetic rubber with an encapsulated steel fixing plate. It is designed to hold doors, hatches and access panels in the open position on commercial vehicles and site equipment, then release with a controlled pull. The unit fixes via a single through hole of 7 mm diameter (approx. 0.28 in) and pairs with the matching male door retainer 0666/002. The rubber body is black for an unobtrusive OEM look and has a Shore A hardness of 50-55 to balance grip and durability. Key dimensions are 40 mm overall diameter (approx. 1.57 in) and 36 mm depth (approx. 1.42 in). Typical uses include truck cabs and bodies, service cabinets, trailer compartments, and modular/site buildings where a compact door holding solution is needed.
Key Features:
- Female rubber door retainer for holding doors and panels open
- Synthetic rubber body, Shore A 50-55 for resilience and grip
- Encapsulated steel fixing plate for strength and long service
- Ø7 mm through fixing hole (approx. 0.28 in) for single-point attachment
- Body diameter Ø40 mm (approx. 1.57 in) for compact fit
- Depth 36 mm (approx. 1.42 in) to suit common door and frame setups
- Black finish for discreet installation on vehicle and plant bodies
- Pull force range 3-10 kg (approx. 6.6-22 lbf) for positive hold and easy release
- Compatible with male door retainer 0666/002
Typical Applications:
Used on commercial vehicle cabs and truck bodies, trailer lockers and service cabinets, plant and machinery access panels, and modular/site buildings to retain doors or hatches in the open position during loading, servicing or inspection.
Also known as:
Door holder, door catch, door stay socket, female door keep, rubber door buffer, door stop retainer
Product Specifications
| L&S Part No. | 800 1068 |
|---|---|
| Unit of Sale | 1 |
