Description
Overview:

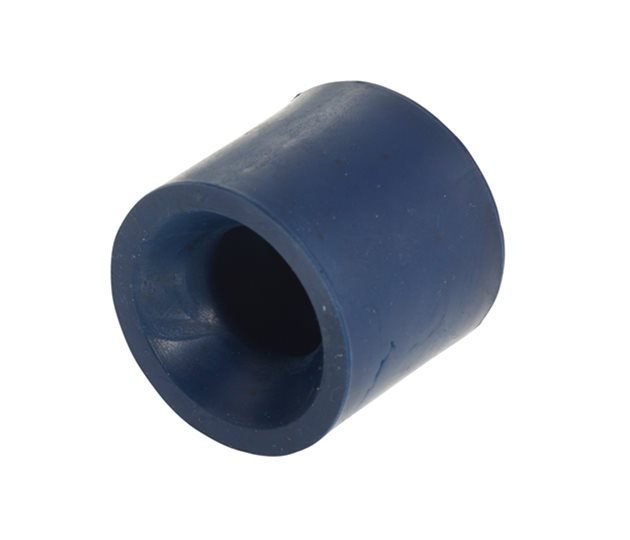

Female Rubber Door Retainer, Blue, M6 Tapped, 3-8 kg Pull, 40mm Dia x 36mm (MPN 800 1072) is a synthetic rubber female door holder designed to receive and retain the matching male door retainer. The blue elastomer body is moulded around a steel fixing plate with an M6 tapped thread for secure installation. With a specified pull force of 3-8 kg, it is suitable for holding doors, hatches and access panels in the open position on commercial vehicles and site equipment. The unit measures 40 mm diameter (approximately 1.57 in) and 36 mm depth (approximately 1.42 in), providing a compact footprint for cabs, bodies and enclosures where space is limited. Typical uses include trucks, plant cabs, service cabinets and modular buildings.
Key Features:
- Female rubber door retainer for use with a mating male door retainer
- Synthetic rubber construction with blue finish
- Moulded-in steel fixing plate for secure mounting
- M6 tapped fixing (internal thread)
- Pull force rating: 3-8 kg
- Overall size: 40 mm diameter (approx. 1.57 in)
- Depth: 36 mm (approx. 1.42 in)
- Shore A hardness: 35-45
- Suitable for cabs, trucks, cabinets and modular buildings
- Designed for door hold-open duty on vehicle and site equipment doors
Typical Applications:
Used on truck cabs and bodies, plant and site cabin doors, service cabinets, locker doors and modular building access panels. Common on commercial vehicles, trailers and workshop enclosures where a compact, rubber female retainer is required to locate with a corresponding male door retainer.
Also known as:
Rubber Door Holder (Female)
Female Door Catch
Door Stay Cup
Door Retainer Socket
Female Door Stop
Product Specifications
| L&S Part No. | 800 1072 |
|---|---|
| Unit of Sale | 1 |
