Description
Overview:

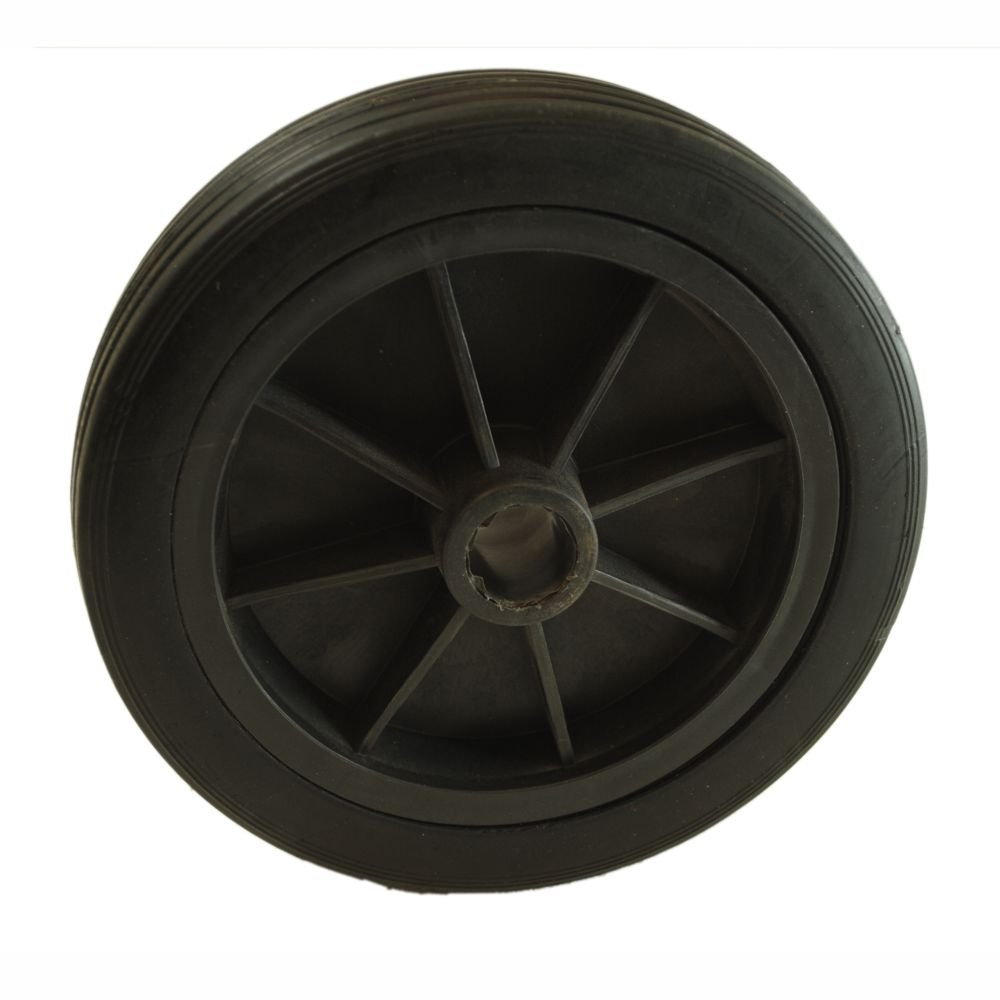

Jockey Wheel Spare 155 x 42mm, 20mm Bore, Rubber on Plastic Rim - Maypole (MPN TR226) is a replacement jockey wheel and tyre supplied on its own for servicing jockey wheels and legs. It has a 155mm (6.1in) diameter with a 42mm (1.65in) tread, using a rubber tyre on a plastic rim. The bore is 21.1mm for the standard 20mm jockey wheel spindle system. Supplied as a wheel only, without spindle, bolt or other fixings.
Specification:
- Wheel diameter: 155mm (6.1in)
- Tread width: 42mm (1.65in)
- Tyre: Rubber
- Rim: Plastic
- Bore diameter: 21.1mm (fits standard 20mm spindle; 0.83in)
- Bore length: 50mm (1.97in)
- Maximum static load: 75kg (165lb)
Fits These Jockey Wheels:
- 800 111 - 34mm Telescopic Jockey Wheel 75kg (Maypole MP225)
Also known as:
- Jockey wheel spare wheel
- Trailer jack wheel
- Nose wheel
- 20mm spindle jockey wheel spare
- Maypole MP226
Product Specifications
| L&S Part No. | TR226 |
|---|---|
| Key Features | - Wheel diameter: 155mm (6.1in) - Tread width: 42mm (1.65in) - Tyre: Rubber on plastic rim - Bore diameter: 21.1mm for 20mm spindle - Maximum static load: 75kg (165lb) |
