Description
Overview:

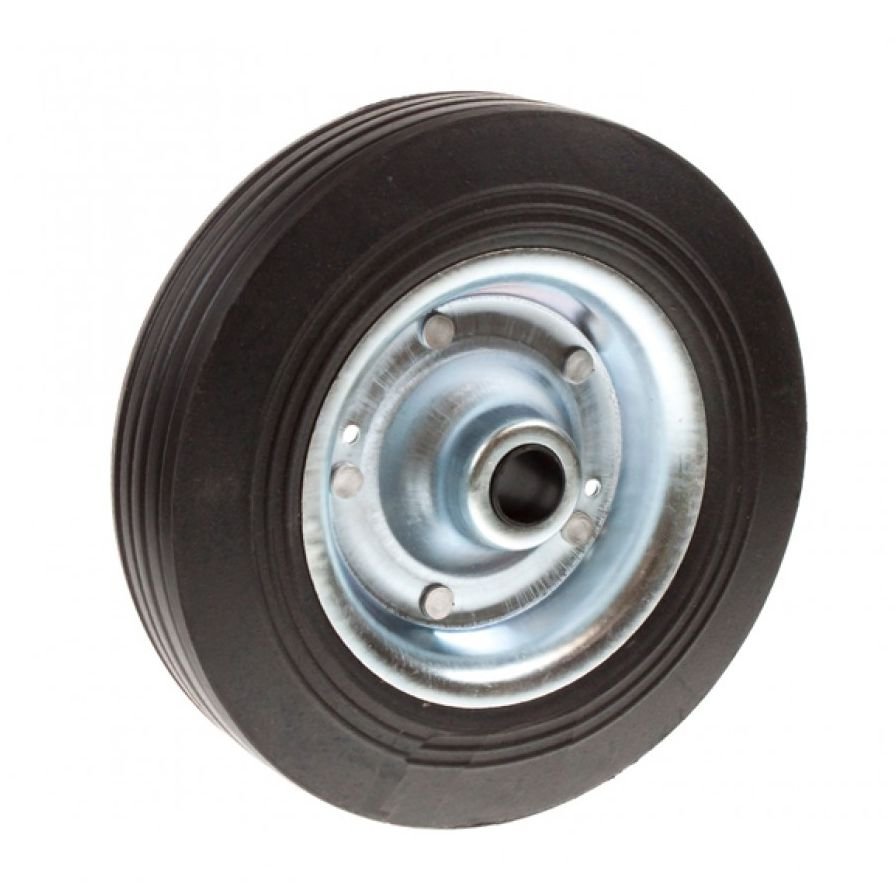

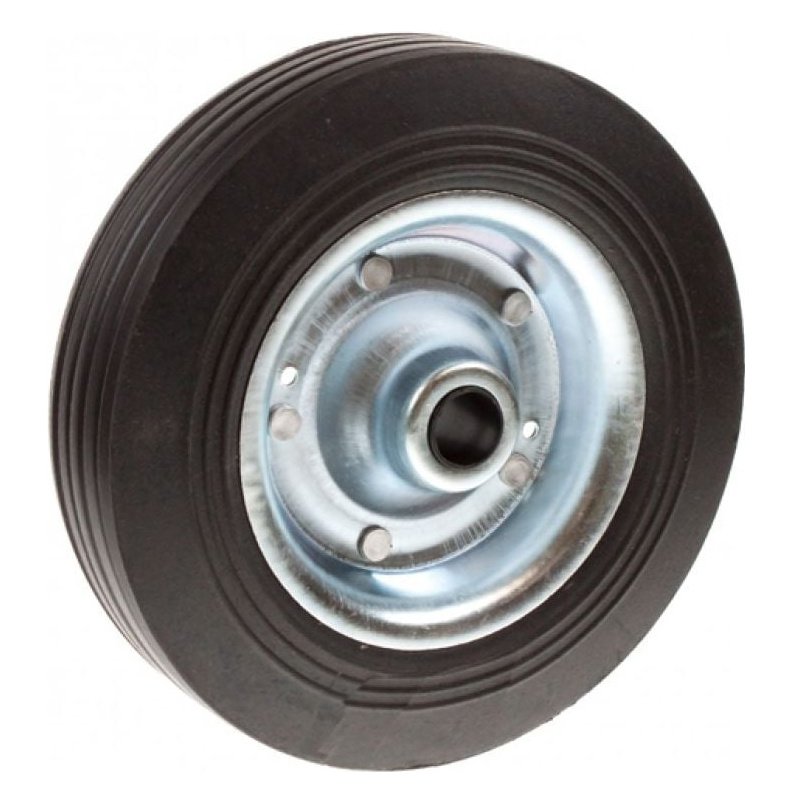

This replacement jockey wheel spare (MPN TR228) from Maypole is a bare wheel and tyre assembly for trailer jockey wheels and legs. It is supplied as a wheel only, with rubber tyre on a steel rim, and does not include a tube, clamp, winding mechanism, spindle, bolt or fixings. The wheel diameter is 200mm (7.87") with a 48mm (1.89") tread. The bore is 20.5mm and fits the standard 20mm jockey wheel spindle system; bore length 58mm (2.28"). For use as a service replacement on the models listed.
Specification:
- Wheel diameter: 200mm (7.87")
- Tread width: 48mm (1.89")
- Tyre: Rubber
- Rim: Steel
- Bore diameter: 20.5mm (fits standard 20mm spindle system)
- Bore length: 58mm (2.28")
- Maximum static load: 300kg
Fits These Jockey Wheels:
- TR227 - 42mm Jockey Wheel 100kg (Maypole MP227)
- TR436 - 48mm Telescopic Jockey Wheel 100kg (MP436)
- 207 977 - 60mm Auto-Fold Jockey Wheel 300kg (MP977)
- 761 500 - 42mm Telescopic Jockey Wheel 150kg (MP2275)
- 761 535 - 48mm Telescopic Jockey Wheel 150kg (MP4365)
- Also fits Maypole MP435 and MP810 (not stocked)
Also known as:
jockey wheel spare wheel, jockey leg wheel, trailer nose wheel, trailer jack wheel, replacement jockey wheel tyre and rim, Maypole MP228
Product Specifications
| L&S Part No. | TR228 |
|---|---|
| Key Features | - Solid rubber tyre with steel centre for durability - 200mm diameter x 48mm width for stable support - 20.5mm bore x 58mm hub length fits common axles - 300kg static load capacity for reliable support - Compatible with 48mm heavy-duty jockey legs |
