Description
Overview:
This spin-on oil filter (MPN H1608) is a non-genuine replacement designed to protect engine internals by trapping harmful particles from the oil circuit. It features a robust metal canister with a sealed base plate and integrated gasket for dependable sealing. The filter suits a wide range of construction and plant equipment, including popular machines such as Bobcat and Compair C30. Key dimensions are Height 136 mm and Outer Diameter 94 mm. The mounting thread is 3/4-16 UN (19.05 mm diameter, 1.59 mm pitch), and the unit incorporates an anti-drain back valve to reduce dry starts. A bypass valve set at 40 psi (2.76 bar) helps maintain oil flow if the element becomes restricted, supporting reliable operation in tough site conditions.
Key Features:
- Durable metal canister and quality filter media for consistent filtration performance
- 3/4-16 UN thread (19.05 mm x 1.59 mm) for common engine fitments
- Anti-drain back valve to retain oil in the filter housing after shutdown
- Bypass valve rated at 40 psi (2.76 bar) to protect against oil starvation
- Compact size: 136 mm height, 94 mm outer diameter for easy fit in tight bays
- Non-genuine replacement offering a practical, cost-effective maintenance option
- Easy spin-on installation with a pre-fitted sealing gasket
- Suited to varied operating environments, from plant hire to farm machinery
- Supports engine longevity by reducing wear from dirt and metal particles
- Suitable for routine service intervals and quick on-site changes
Typical Applications:
Used on compactors, rollers, compressors, skid-steer loaders, and light plant using compatible engines. Typical tasks include routine servicing on equipment such as Bobcat loaders and Compair C30 compressors, as well as machinery powered by Hatz engines in generators, pumps, and site tools. Ideal where reliable filtration and fast replacement reduce downtime.
Also known as:
Lube filter, screw-on oil filter, oil canister, engine oil element, engine oil strainer, spin-on lube element.
Fits Models:
20/140, 20140, 3000, Bobcat, Compair C30, CompairC30, Midi 20/140, PT9000, DTV 102, SXR3000, SX2000, SX3000, SX5000, SX6000, SX7000, SX8000, SX9000, 4WD, BW 75 A AD ADL, BW 90 AC 2W, BW 100 AD, BW 101 A, BW 120 AC 2, BW 120 AD, BW 130 AD, BW 211 A B AB AD, BW 212 B D DH PD SB, EX 60 WD 2, YB 10, YB 25, YB 121, YB 151, DTV102, BW75AADADL, BW90AC2W, BW100AD, BW101A, BW120AC2, BW120AD, BW130AD, BW211ABABAD, BW212BDDHPDSB, EX60WD2, YB10, YB25, YB121, YB151, BOBCAT, COMPAIRC30, MIDI20/140
Alternate Part Numbers:

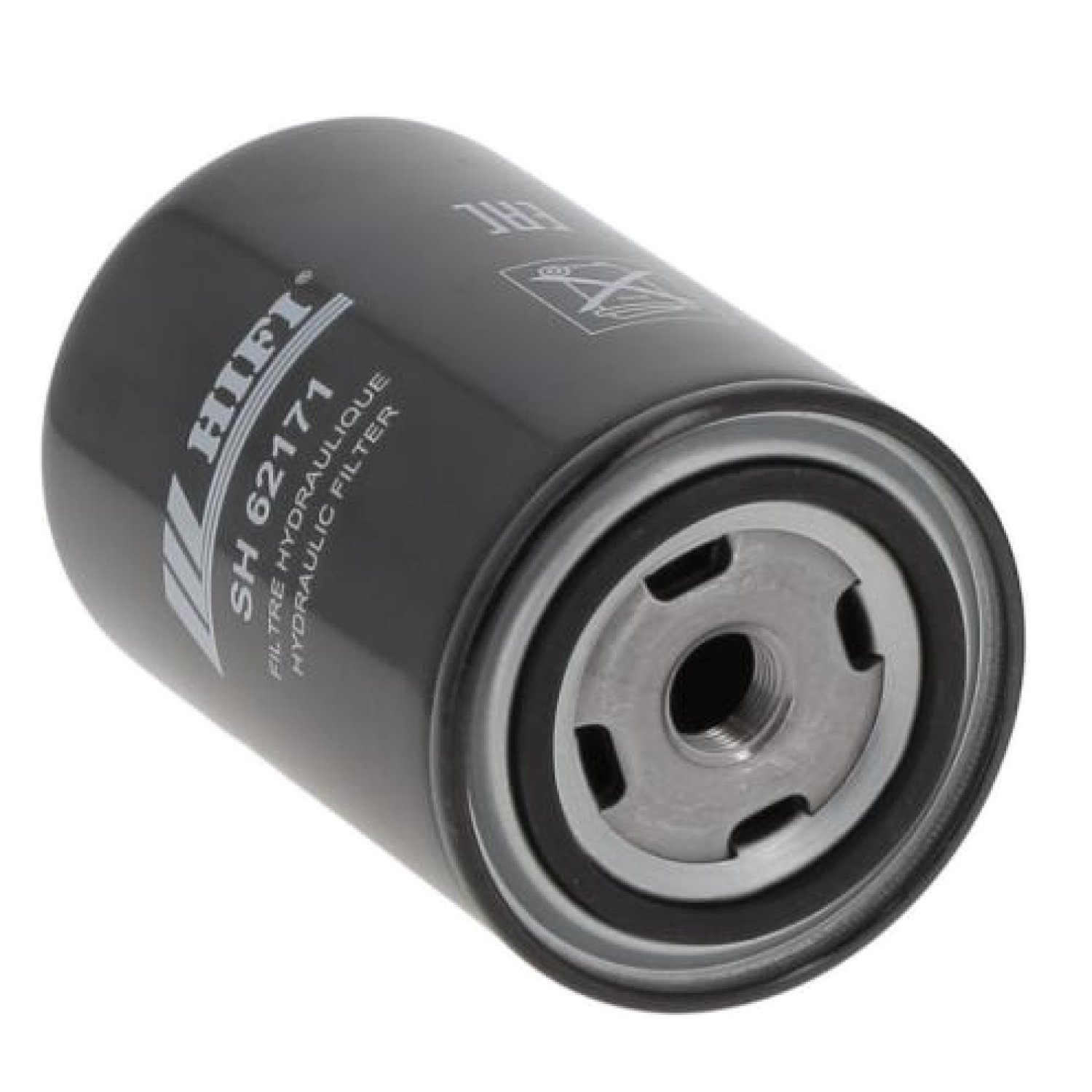

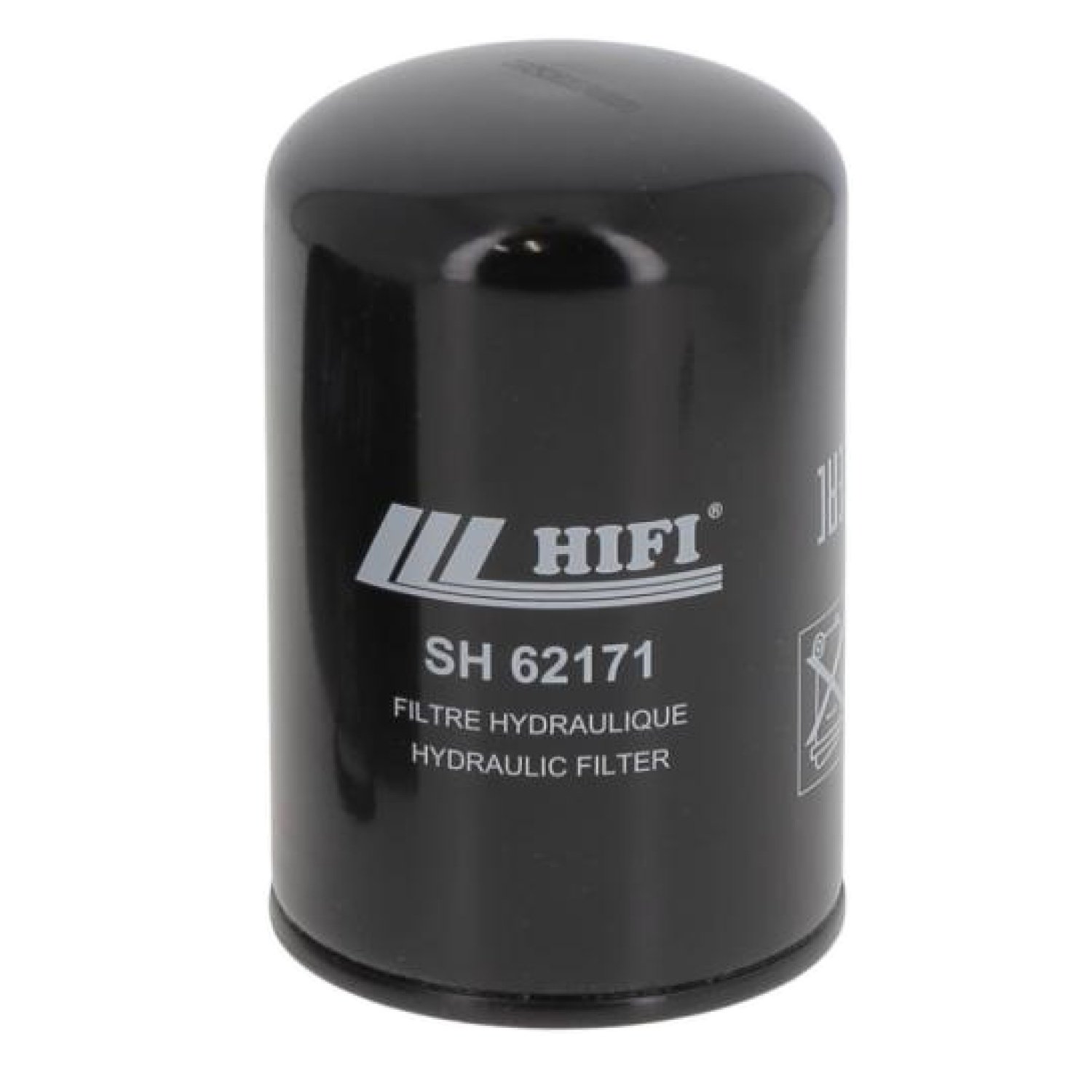

933160.0219, 933160-0219, 6.1985.1/A1, H-17-WD-01, 9331600219, SPH 21002, FPS3127.1, FPS3127-1, 619851/A1, A04819974, 92128859, 619851A1, FPS31271, SPH21002, 85052744, 68521824, SH 62171, 05821203, 46717986, 6.1985.1, CP140V35, 5825002, WGH6315, 5821203, SP-1206
Product Specifications
| L&S Part No. | LH7602 |
|---|---|
| OEM No. | H1608 |
| Unit of Sale | 1 |

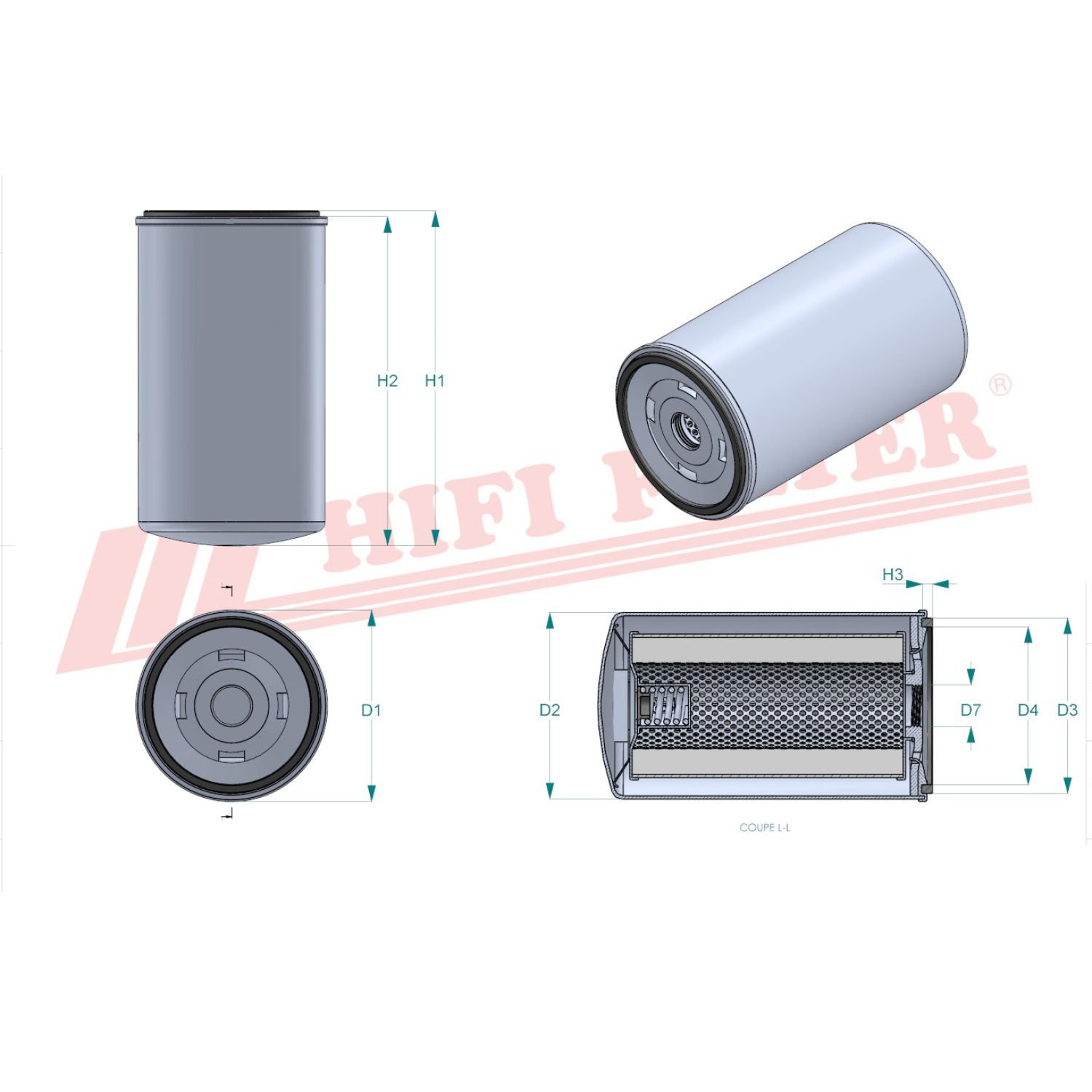

| Size | 145mm x 95mm x 95mm x 3/4-16 UNF Thread |
| Applications | 20/140, 20140, 3000, Bobcat, Compair C30, CompairC30, Midi 20/140, PT9000, DTV 102, SXR3000, SX2000, SX3000, SX5000, SX6000, SX7000, SX8000, SX9000, 4WD, BW 75 A AD ADL, BW 90 AC 2W, BW 100 AD, BW 101 A, BW 120 AC 2, BW 120 AD, BW 130 AD, BW 211 A B AB AD, BW 212 B D DH PD SB, EX 60 WD 2, YB 10, YB 25, YB 121, YB 151, DTV102, BW75AADADL, BW90AC2W, BW100AD, BW101A, BW120AC2, BW120AD, BW130AD, BW211ABABAD, BW212BDDHPDSB, EX60WD2, YB10, YB25, YB121, YB151, BOBCAT, COMPAIRC30, MIDI20/140 |
| Machine Type | Power Pack, Excavators, Compressors, Engines |
| Fits Brands | Alco Filters, Ammann, Baldwin, Barford, Benford, Bomag, Consolidated Pneumatics, Greyfriars, Hengst, Hitachi, Hyster, Ingersoll Rand, Kaeser, Maco, Mahle, Manitou, Mann & Hummel, Panther, Saurer, Schuup, Sofima, Sullair, Terex, Thwaites, Wacker Neuson, Woodgate, Yanmar |
| Fits Models | 3000 | PT9000 |
