Description
Overview:

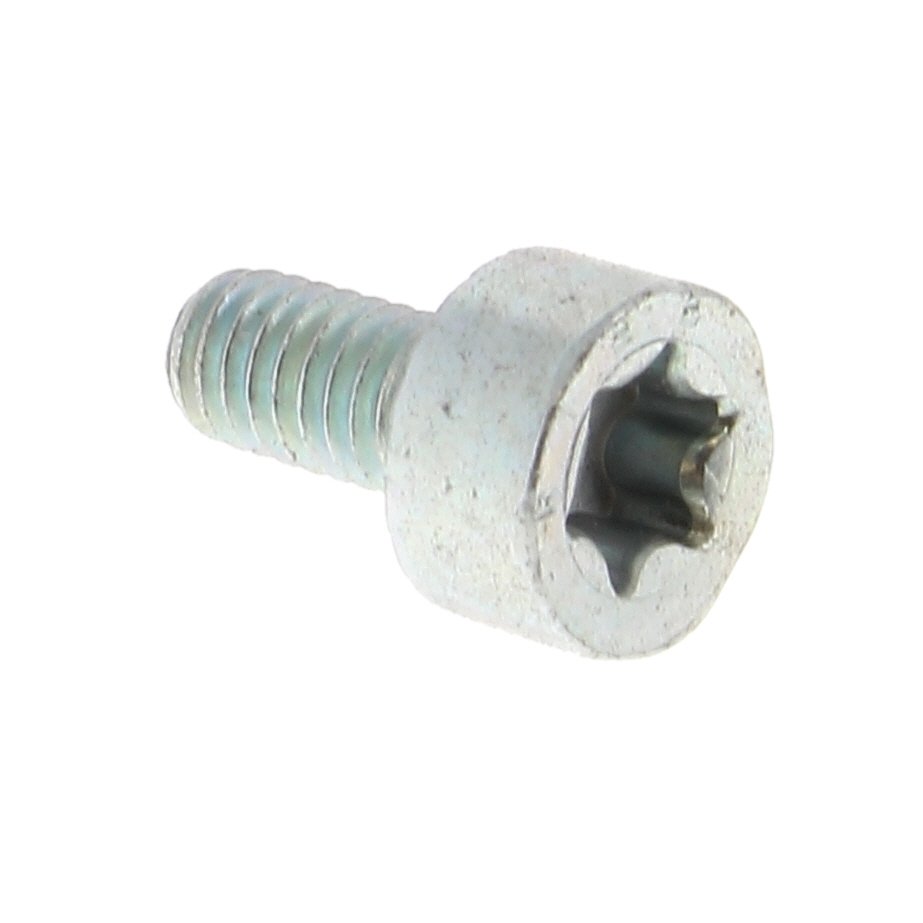

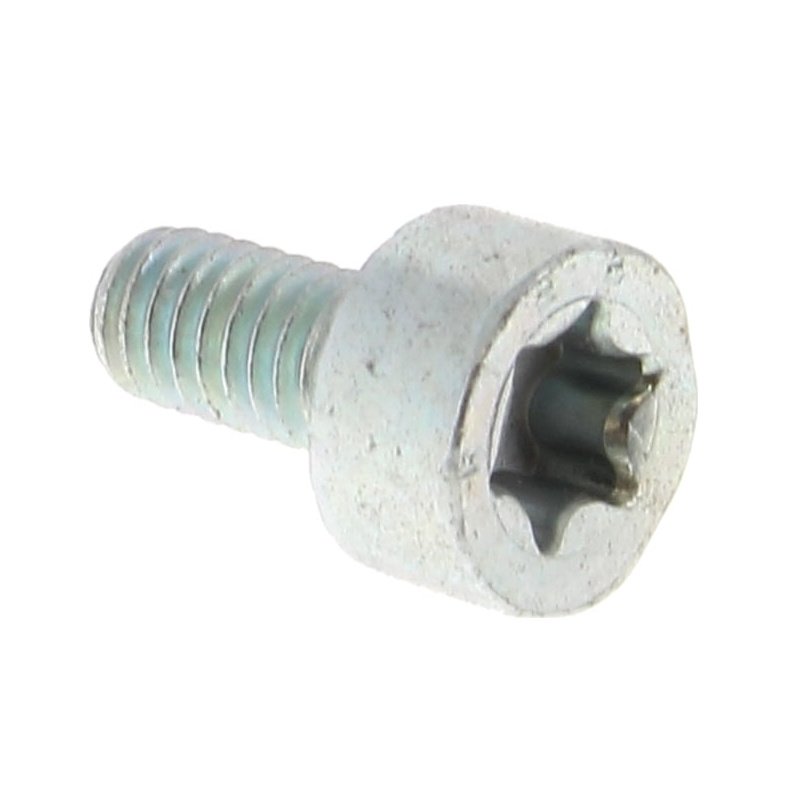

The Spline Screw IS‐M4x8 is a genuine Stihl OEM fastener designed to secure key components on heavy‐duty cutting and forestry equipment, including the TS700 and TS800 disc cutters. Manufactured from durable steel, it features an internal spline drive that provides positive tool engagement and reduces the risk of cam‐out under vibration. With an M4 thread and 8 mm length, it offers a precise fit where a compact fixing is required, helping maintain correct alignment of covers, guards, and assemblies. This replacement screw supports reliable servicing and long‐term maintenance, ensuring Stihl machines operate as intended in demanding site and workshop conditions.
Key Features:
- Genuine Stihl OEM part for assured fit and function
- Internal spline-drive head for secure engagement and reduced slippage
- M4 x 8 mm size for compact, precise fastening in confined locations
- Steel construction suited to high-vibration professional use
- Helps maintain correct assembly of covers, housings, and guards
- Consistent thread quality for repeatable torque and retention
- Compatible with a wide range of Stihl machines for convenient stocking
- Straightforward to install with the appropriate spline driver
Typical Applications:
Used to fasten small components and covers on Stihl disc cutters and other machinery during routine servicing, repairs, or when replacing lost fixings. Common tasks include securing shrouds, starter housings, guards, handle assemblies, and mounting points exposed to vibration and dust on construction sites, landscaping work, and forestry operations.
Also known as:
Spline-drive screw, internal spline screw, machine screw, M4x8 screw, fixing screw, retaining screw, fastener, bolt (M4), service screw, OEM screw for Stihl equipment.
Fits Models:
088, FR125, FR135, FR145, FS106, FW20, FW20 Cart, MS780, MS880, TS700, TS800
Alternate Part Numbers:
9022-313-0630, 90223130630
Product Specifications
| L&S Part No. | 9022 313 0630 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 90223130630 |
| Unit of Sale | 1 |
| Applications | 088, FR125, FR135, FR145, FS106, FW20, FW20 Cart, MS780, MS880, TS700, TS800 |
| Machine Type | Disc Cutters |
| Fits Brands | Stihl |
| Fits Models | TS700 | FW20 Cart | FR125, FR135, FR145 | TS800 | MS780 | MS880 | 088 |
