Description
Overview:

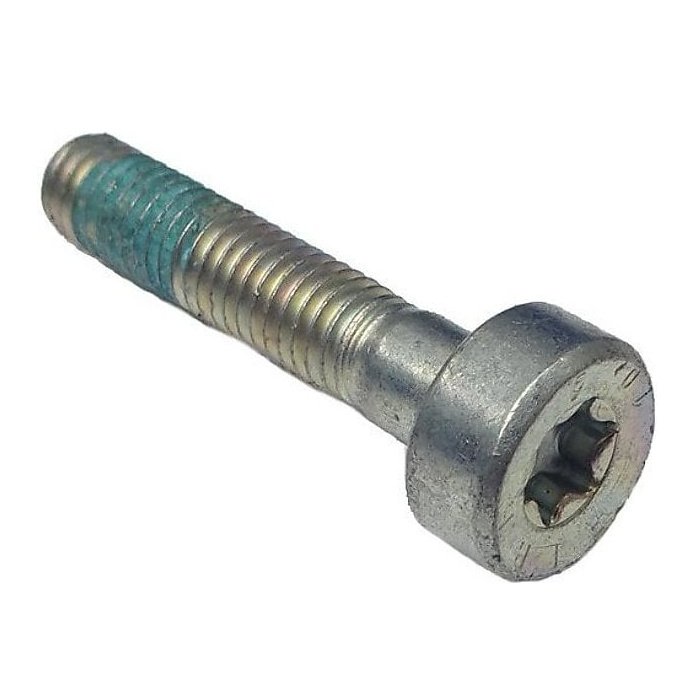

The Spline Screw IS‐M5x25 for Stihl HS46 is a genuine Stihl fastener designed for reliable use in hedge trimmers such as the HS 46 and HS 46 C. It is a machine screw with an M5 thread and 25 mm length, featuring an internal spline drive for positive engagement with the correct bit. Manufactured from high‐grade steel, it offers strong clamping force and consistent performance under vibration. Marked with OEM number 9022 346 1050 (also referenced as 90223461050), this screw is engineered to match factory specifications, helping maintain the integrity and performance of your equipment. Use it to replace worn or missing screws during servicing and repairs to keep assemblies secure and your trimmer operating smoothly.
Key Features:
- Genuine Stihl OEM fastener for assured fit and quality (OEM: 9022 346 1050 / 90223461050).
- M5 thread x 25 mm length for direct replacement in specified locations.
- Internal spline drive head for strong bit engagement and reduced cam‐out.
- High‐strength steel construction for durability and stable clamping.
- Consistent thread quality for accurate torque and repeatable fittings.
- Suitable for high‐vibration environments when torqued to specification.
- Straightforward installation with the correct spline/"star" driver bit.
- Supports routine maintenance, repairs, and like‐for‐like replacements on Stihl HS series trimmers.
Typical Applications:
Used to secure housings, covers, handle sections, guards, and other assemblies on Stihl hedge trimmers. Ideal for workshop or on‐site repairs where an M5 x 25 mm internal‐spline machine screw is specified. Helps restore original fastening strength after service work, vibration‐related loosening, or loss of hardware, keeping components aligned and machinery safe and reliable in everyday use.
Also known as:
Internal spline screw, star‐drive screw, spline bolt, machine screw M5 x 25 mm (25 mm length), M5 fixing, M5 fastener, M5 bolt, spline fastener for Stihl hedge trimmers.
Fits Models:
HS 46, HS 46 C, HS 56 C, HS46, HS46 C, HS46C, HS56, HS56C
Product Specifications
| L&S Part No. | 9022 346 1050 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 90223461050 |
| Unit of Sale | 1 |
| Applications | HS 46, HS 46 C, HS 56 C, HS46, HS46 C, HS46C, HS56, HS56C |
| Machine Type | Hedgetrimmers |
| Fits Brands | Stihl |
| Fits Models | HS 46, HS46 C | HS56 |
