Description
Overview:

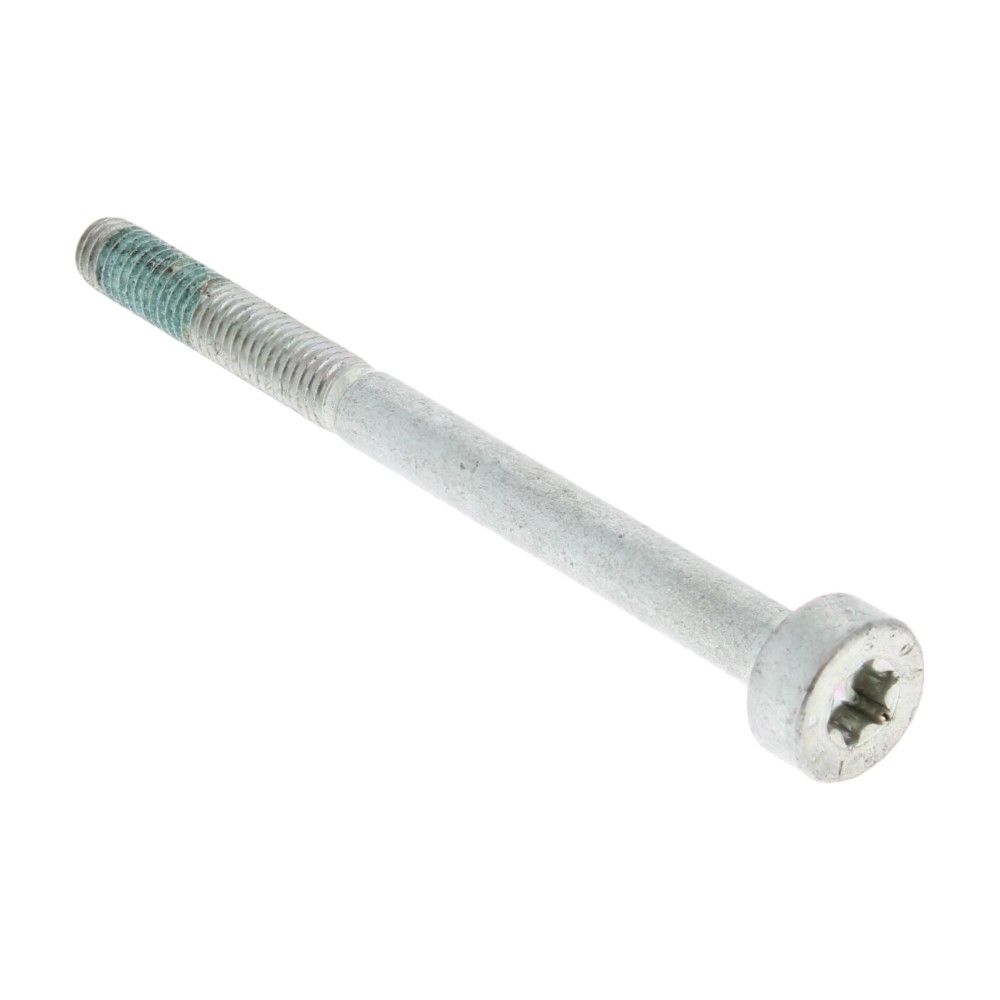

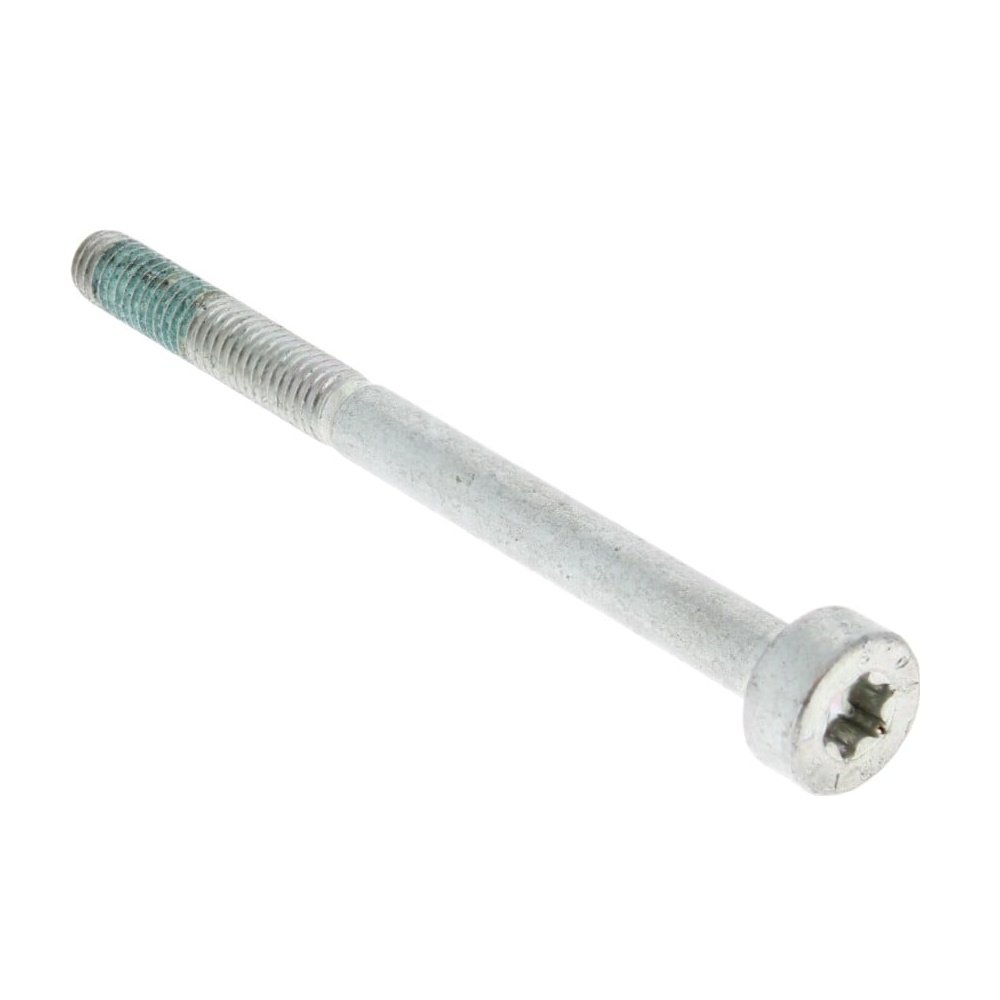

The Spline Screw IS‐M5x65x25 is a genuine Stihl fastener designed for long‐reach hedge cutters, including the HLA 66 and HLA 85. Made from durable steel, it uses an internal spline drive for firm bit engagement and dependable tightening. Its role is to secure key assemblies so your tool stays safe, aligned, and ready for regular work. Dimensions are M5 × 65 × 25, with approximate imperial equivalents of 0.20 × 2.56 × 0.98 inches; for reference, 0.20 in ≈ 5 mm, 2.56 in ≈ 65 mm, and 0.98 in ≈ 25 mm. This screw is a direct‐fit replacement where specified by Stihl and supports correct clamping force without damaging housings or threads. It is suitable for routine maintenance and repairs on compatible Stihl hedge trimmers.
Key Features:
- Genuine Stihl part for assured fit and performance on specified models
- Internal spline drive for positive engagement and reduced cam‐out
- Steel construction for strength and long service life in outdoor use
- Correct M5 sizing to match Stihl factory specifications
- Dimensions: M5 × 65 × 25 (approx. 0.20 × 2.56 × 0.98 in)
- Helps maintain tool safety by keeping assemblies securely fastened
- Clean, precise threads for smooth installation and removal
- Suitable for scheduled servicing and part replacement on HLA series hedge cutters
Typical Applications:
Used to fasten housings, guards, and related assemblies on Stihl long‐reach hedge trimmers. Ideal when replacing worn, damaged, or missing screws during servicing, rebuilds, or after impact. Common in routine maintenance to restore secure fitment and prevent vibration‐related loosening on professional and domestic hedge cutting tasks.
Also known as:
Internal spline screw, star‐drive screw, spline bolt, M5 machine screw, fixing screw, fastener, clamping screw, service screw for Stihl hedge trimmers.
Fits Models:
HLA 65, HLA 66, HLA 85, HLA 86
Alternate Part Numbers:
9022-341-1152, 90223411152
Product Specifications
L&S Part No. | 9022 341 1152 |
---|---|
Part Type | Genuine Part |
Manufacturer | Stihl |
OEM No. | 90223411152 |
Unit of Sale | 1 |
Applications | HLA 65, HLA 66, HLA 85, HLA 85 Hedge, HLA 86, HLA65, HLA66, HLA85, HLA86 |
Machine Type | Long Reach Hedgetrimmers |
Fits Brands | Stihl |
Fits Models | HLA 66 | HLA 85 Hedge | HLA 86 | HLA 65 |
