Description
Overview:

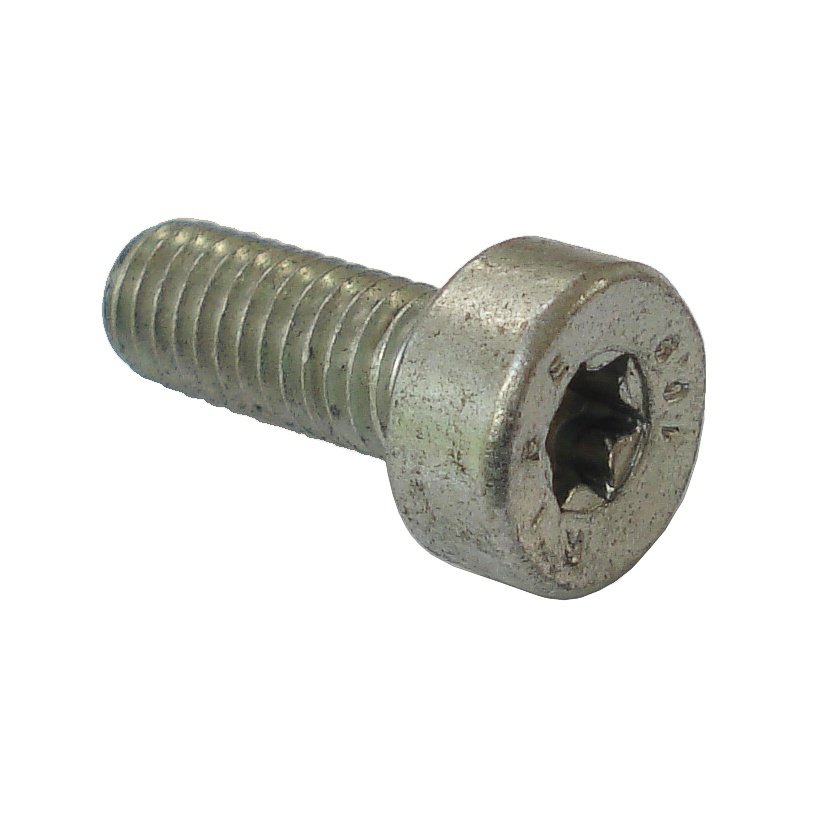

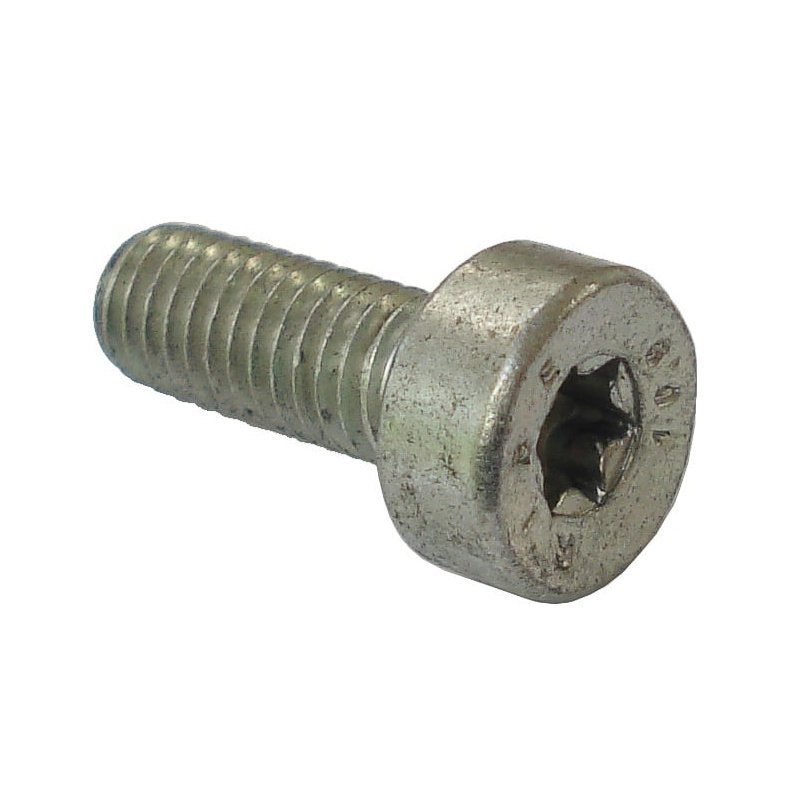

The Spline Screw M6 x 16 for Stihl machines is a Genuine Part designed for reliable fastening in demanding environments. Made from durable steel with a spline-drive head for positive tool engagement, it secures components such as covers, guards and brackets across a range of Stihl equipment. The size is M6 x 16 mm (approx. 6 mm x 16 mm), which is about 0.24 x 0.63 inches. Built to Stihl OEM standards, it offers a precise fit that resists loosening under vibration and frequent use. Supplied under Manufacturer Part Number 9022 341 1280, it is commonly used in cut-off saws like the TS400 and TS800 as well as other compatible Stihl machines. This fastener supports routine maintenance and dependable repairs.
Key Features:
- Genuine Stihl OEM fastener for assured compatibility and quality
- M6 x 16 mm size (0.24 x 0.63 inches) for standardised fitment across listed models
- Spline-drive head for strong bit engagement and reduced cam-out during tightening
- Precision threads for secure, repeatable clamping in OEM threaded locations
- Durable steel construction suitable for high-vibration tools and tough site conditions
- Consistent fit helps maintain alignment of housings, guards and assemblies
- Supports correct torque application for M6 fixings using the appropriate driver
- Straightforward to install and remove for routine servicing and part replacement
- Helps prevent loosening, safeguarding the integrity and performance of your equipment
Typical Applications:
Used to fasten covers, recoil housings, filter boxes, handle frames, guards and accessory brackets on compatible Stihl machines. Ideal for maintenance tasks where a secure, vibration-resistant fixing is needed, including repair work on cut-off saws, MultiSystem tools and professional pressure washers used on site or in workshops.
Also known as:
M6 x 16 spline screw, M6 bolt, M6 machine screw, M6 fixing, spline-drive screw, star-drive screw, M6 fastener, retaining screw, mounting screw.
Fits Models:
088, FW20, FW20 Cart, FW20Cart, MM 55, MM 55 C MultiSystem, MM 55-Z MultiSystem, MM 56 MultiSystem, MM55, MM55-ZMultiSystem, MM55C, MM56MultiSystem, RE520W, RE550W, RE580W, RE660W, RE880W, TS400, TS700, TS800
Alternate Part Numbers:
9022-341-1280, 90223411280
Product Specifications
| L&S Part No. | 9022 341 1280 |
|---|---|
| Part Type | Genuine Part |
| Manufacturer | Stihl |
| OEM No. | 90223411280 |
| Unit of Sale | 1 |
| Size | IS-M6 x 16mm |
| Applications | 088, FW20, FW20 Cart, FW20Cart, MM 55, MM 55 C MultiSystem, MM 55-Z MultiSystem, MM 56 MultiSystem, MM55, MM55-ZMultiSystem, MM55C, MM56MultiSystem, RE520W, RE550W, RE580W, RE660W, RE880W, TS400, TS700, TS800 |
| Machine Type | Disc Cutters, Multi Tools, Pressure Washers |
| Fits Brands | Stihl |
| Fits Models | TS400 | TS700 | FW20 Cart | TS800 | 088 | MM 55, MM 55 C MultiSystem | MM 56 MultiSystem | MM 55-Z MultiSystem | RE520W, RE550W, RE580W | RE660W, RE880W |
