Description
Overview:

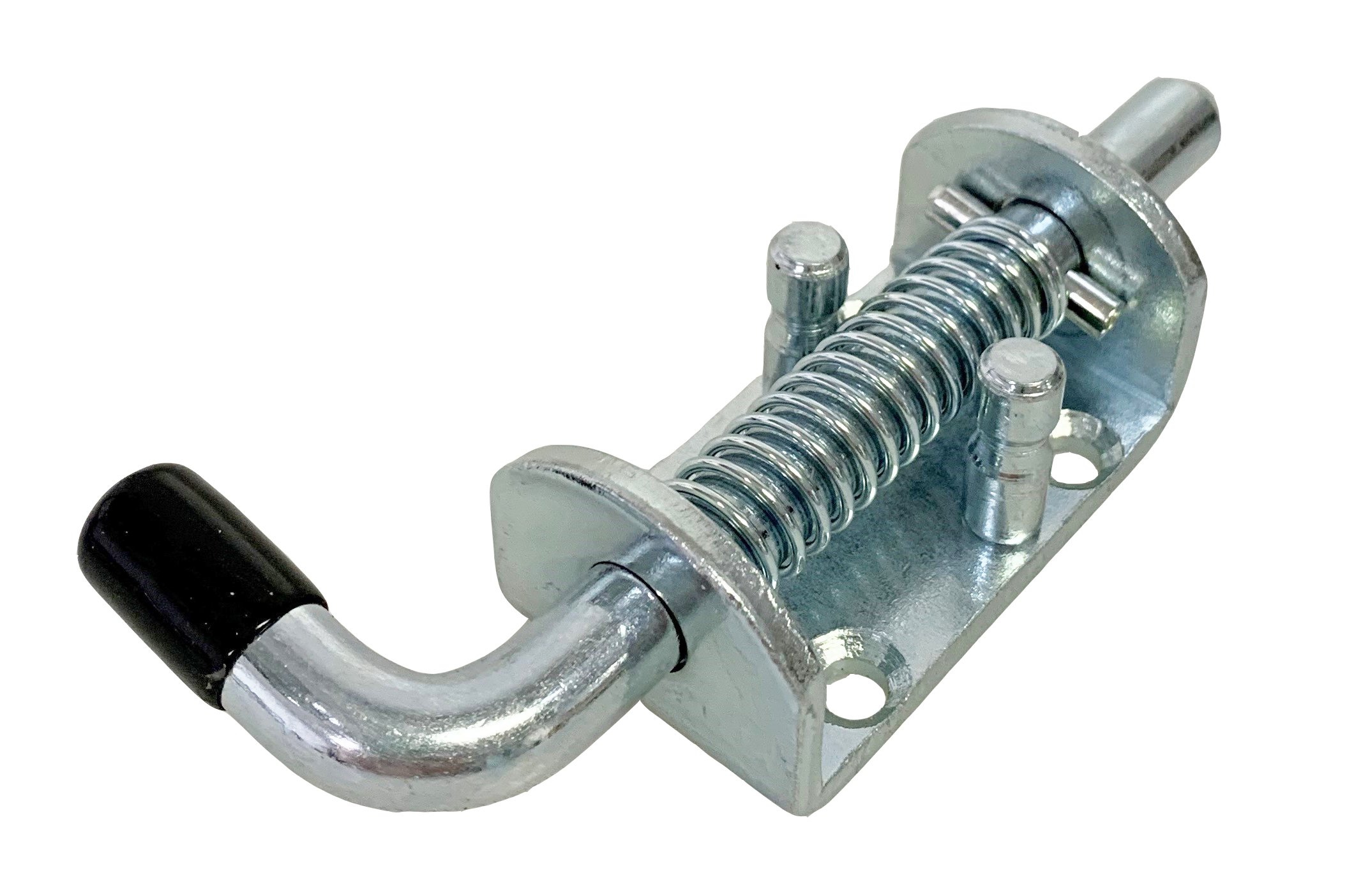

This spring bolt latch (MPN 763 129) is a compact, zinc-plated catch designed for securing doors, tailgates, drop-sides and ramps on trailers, plant bodies and utility vehicles. It uses a 12 mm diameter tapered pin to help the bolt locate cleanly into a keeper or catch, reducing the effort needed to align panels in day-to-day use. The main bolt length is 135 mm, with a positive spring action and a defined 28 mm stroke to hold the fastener engaged under vibration. The zinc-plated finish offers durable corrosion resistance in road and site environments. Intended for post-mounted catch arrangements, it can be paired with a compatible keeper where required. Commonly used across general trailer body fittings, transport bodies and site equipment where a robust spring-loaded shoot bolt is needed.
Key Features:
- Zinc-plated finish for corrosion resistance in service
- 12 mm (0.47 in) tapered pin for easier engagement into the latch or keeper
- Bolt length (A): 135 mm (5.31 in)
- Dimension (B): 73 mm (2.87 in)
- Mounting plate (C): 40 x 28 mm (1.57 x 1.10 in)
- Body length (D): 40 mm (1.57 in)
- Fixing hole diameter (E): 7 mm (0.28 in)
- Dimension (F): 30 mm (1.18 in)
- Spring stroke: 28 mm (1.10 in) for positive engagement
- Catch location: suited to post-mounted installations
- Compatible with keeper/receiver MP81410B (separate)
Typical Applications:
Used as a spring-loaded shoot bolt on trailer and plant body posts to secure tailgates, sideboards, ramps and access doors. Suitable for general vehicle body fittings on utility trailers, transporters and site equipment. For installations requiring a matched receiver, use with Maypole MP81410B.
Also known as:
Spring Latch
Spring-Loaded Bolt
Shoot Bolt
Door Catch Bolt
Maypole part number MP81308B
Product Specifications
| L&S Part No. | 763 129 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
