Description
Overview:

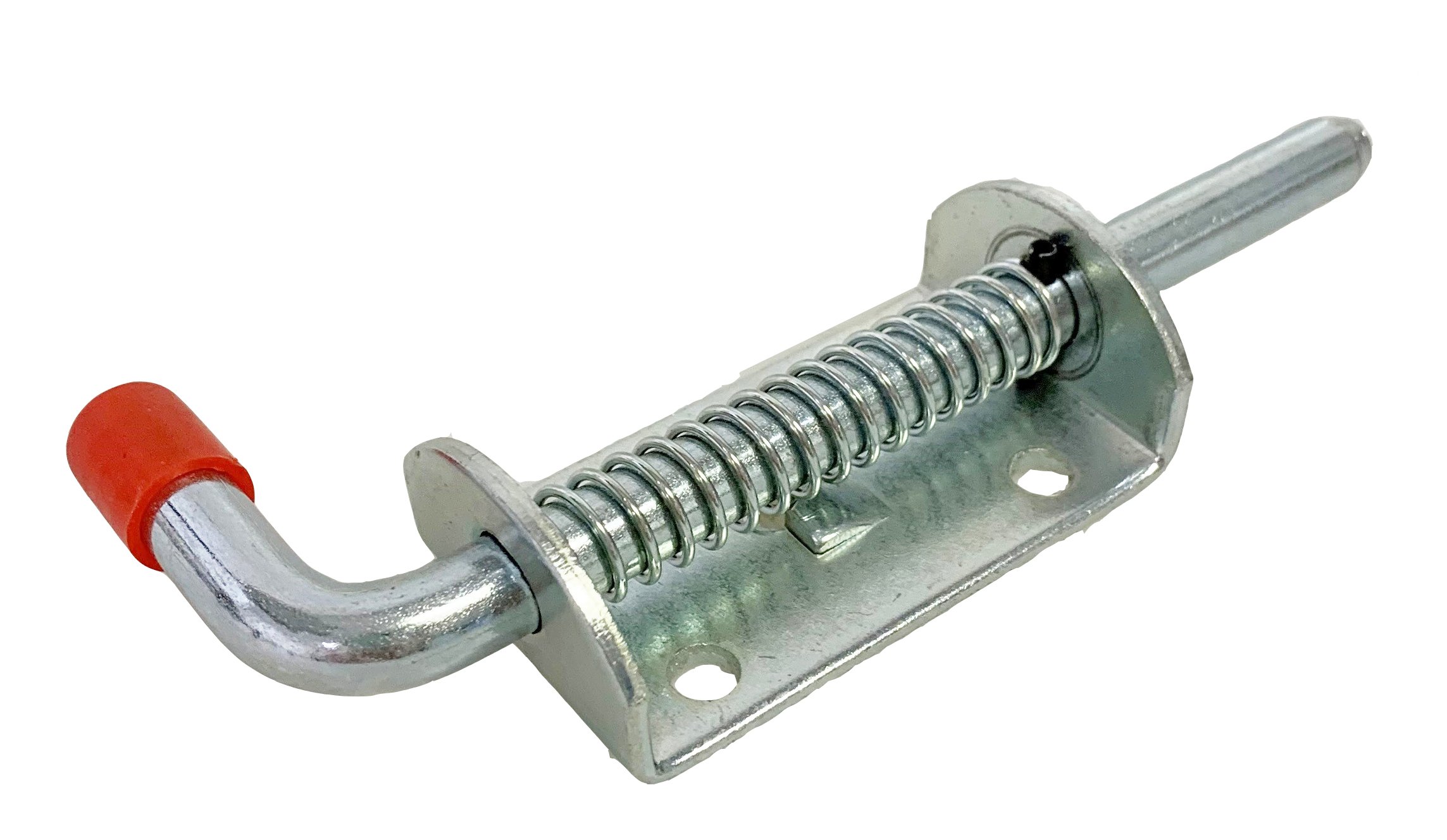

Spring Bolt Latch 150mm x 10mm (MPN 763 072) for securing doors, hatches and tailgates on trailers and similar bodywork. The bolt is tapered at the tip to help the pin engage smoothly with a keeper, and the zinc-coated finish provides corrosion resistance for outdoor use. Key dimensions from the drawing include a 150 mm (5.91 in) bolt length with a 10 mm (0.39 in) pin diameter, a 35 mm (1.38 in) stroke, and a 72 mm (2.83 in) body/guide length. The mounting plate measures 45 x 25 mm (1.77 x 0.98 in) with 6.5 mm (0.26 in) fixing holes. Additional reference dimensions are D = 40 mm (1.57 in) and F = 51 mm (2.01 in). Suitable for general trailer body fittings, plant transport, and utility enclosures where a spring-loaded shoot bolt is required.
Key Features:
- Zinc-coated finish for corrosion resistance
- Tapered 10 mm (0.39 in) bolt for easier engagement with the keeper
- Bolt length 150 mm (5.91 in)
- Stroke/travel 35 mm (1.38 in)
- Body/guide length 72 mm (2.83 in)
- Mounting plate 45 x 25 mm (1.77 x 0.98 in)
- Fixing holes Ø6.5 mm (0.26 in)
- Additional reference dimensions: D = 40 mm (1.57 in), F = 51 mm (2.01 in)
- Catch location: base orientation
- Compatible with Maypole keeper MP81410B
Typical Applications:
Used as a spring-loaded shoot bolt on trailer tailgates, dropsides, access doors, tool lockers, and compartments on plant and utility trailers. Common on general duty trailers and site equipment enclosures where a positive, self-returning latch is needed. Can be paired with the matching keeper MP81410B to complete the latch arrangement.
Also known as:
Spring Latch
Spring-Loaded Shoot Bolt
Tapered Bolt Latch
Spring Barrel Bolt
Shoot Bolt Latch
Maypole part number MP81307B
Product Specifications
| L&S Part No. | 763 072 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
