Description
Overview:

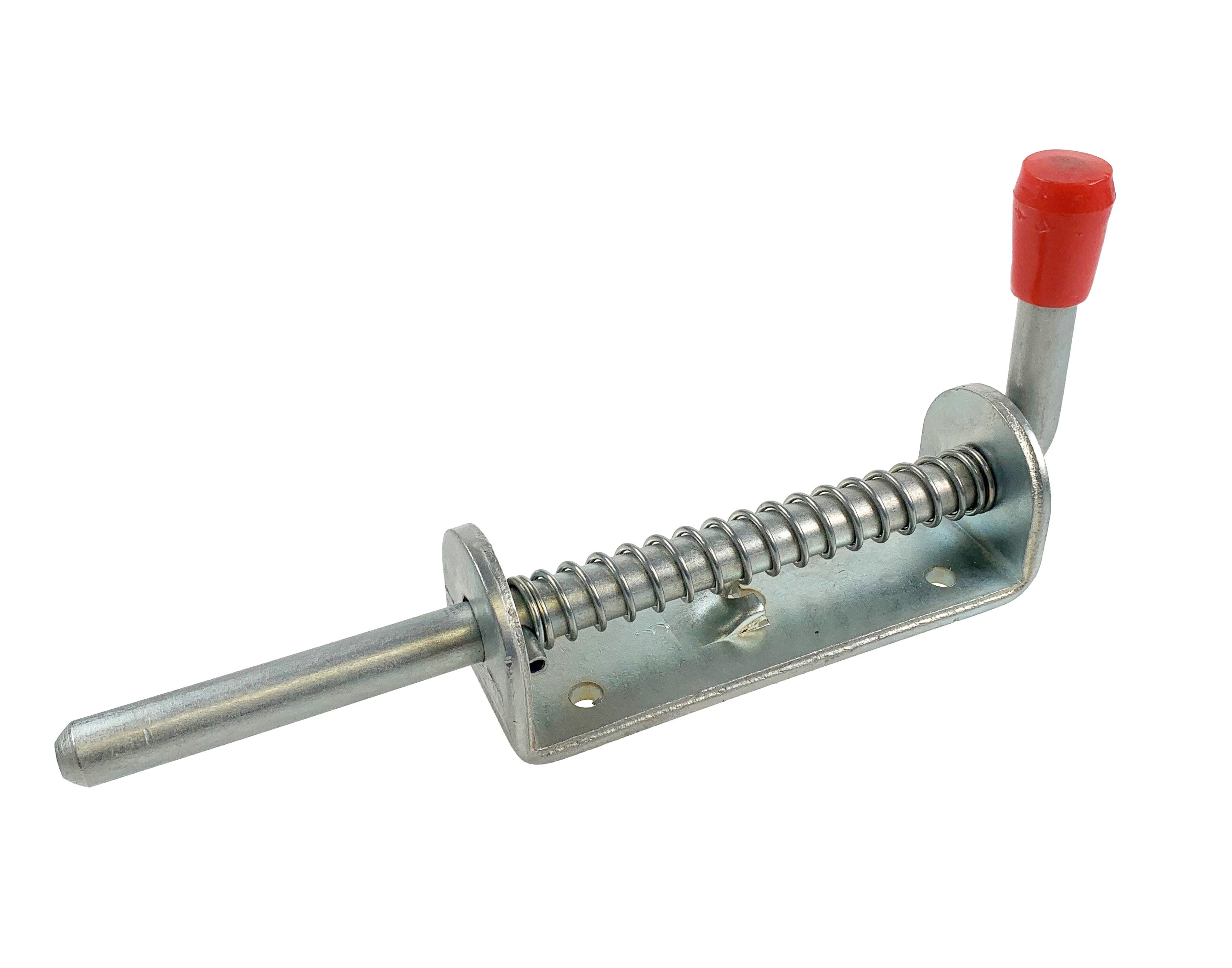

This spring-loaded shoot bolt, 210mm x 12mm (MPN 763 215), is designed for securing doors, tailgates and ramps on trailers and plant bodies. It features a 12mm diameter bolt with a tapered tip for easier engagement into a mating latch, and a zinc plated finish for corrosion protection in service. The unit is configured for a base catch location, making it suitable where the keeper or latch is mounted on the base or floor member. It is a robust, general-purpose body fitting used across trailer bodywork, vehicle conversions and site equipment. The bolt offers a 50mm (1.97 in) stroke to deliver positive lock and release. Drawing dimensions are provided for accurate selection and retrofit against existing hardware. Compatible for use with the Maypole MP81410B spring/shoot bolt latch where a matched keeper is required.
Key Features:
- Spring-loaded shoot bolt for doors, tailgates and ramps
- 12mm pin diameter (0.47 in) with tapered tip for easier fitting into latch
- 210mm size designation (approx. 8.27 in)
- Stroke: 50mm (1.97 in) for positive engagement and release
- Zinc plated finish for corrosion resistance
- Catch location: Base (for use with a base-mounted keeper)
- Drawing dimensions for reference: A 217mm (8.54 in); B 122mm (4.80 in); C 84 x 21mm (3.31 x 0.83 in); D 40mm (1.57 in); E fixing hole Ø 7mm (0.28 in); F 77mm (3.03 in)
- Pin Ø: 12mm (0.47 in)
- Can be used with MP81410B Spring / Shoot Bolt Latch (keeper/receiver)
- Suits general trailer body fittings and retrofit applications
Typical Applications:
Used as a retaining/locking bolt on trailer tailgates, dropsides, ramp doors, toolbox and equipment doors, plant body panels and gate assemblies. Suitable for trailers, towed plant and light commercial conversions where a compact spring bolt is required. Can be paired with the MP81410B spring/shoot bolt latch for a matched keeper on base-mounted installations.
Also known as:
Shoot Bolt
Spring Shoot
Spring-Loaded Gate Bolt
Door/Ramp Retaining Bolt
Latch Bolt
Maypole part number MP81313B
MP81313B
Product Specifications
| L&S Part No. | 763 215 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
