Description
Overview:

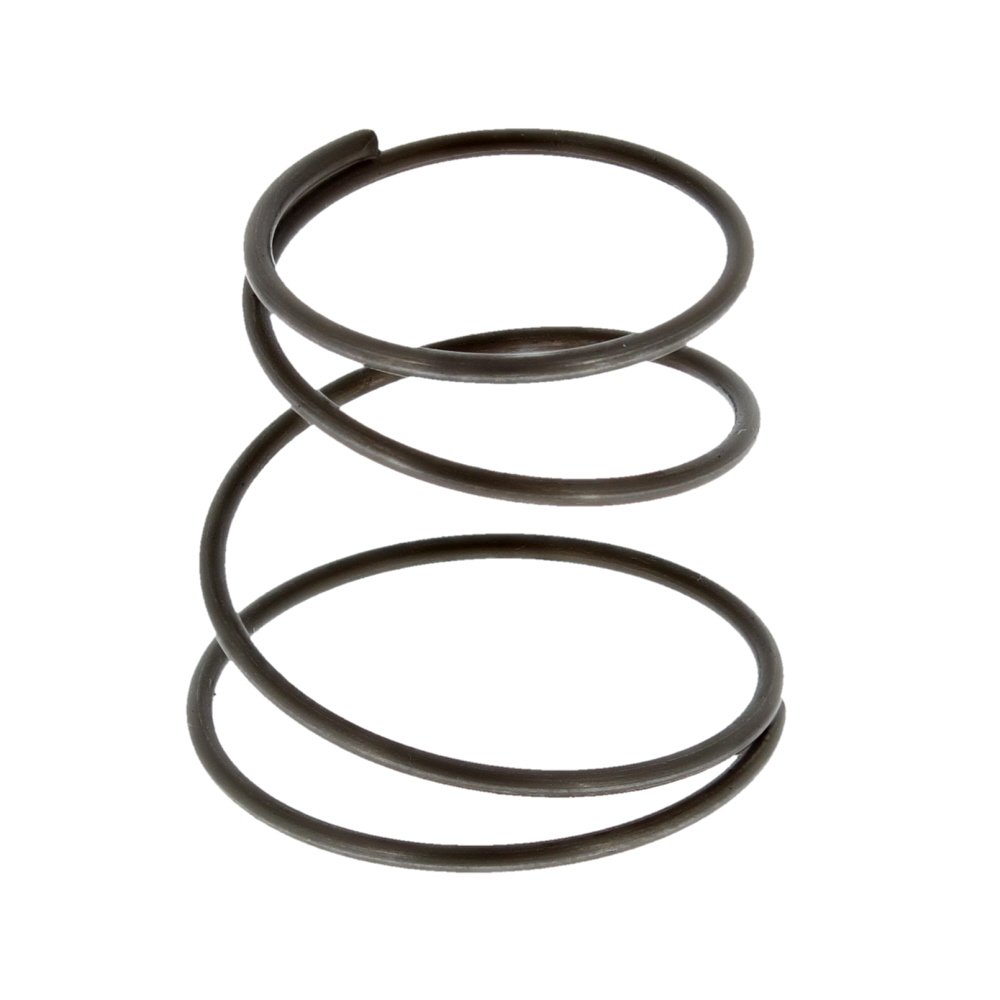

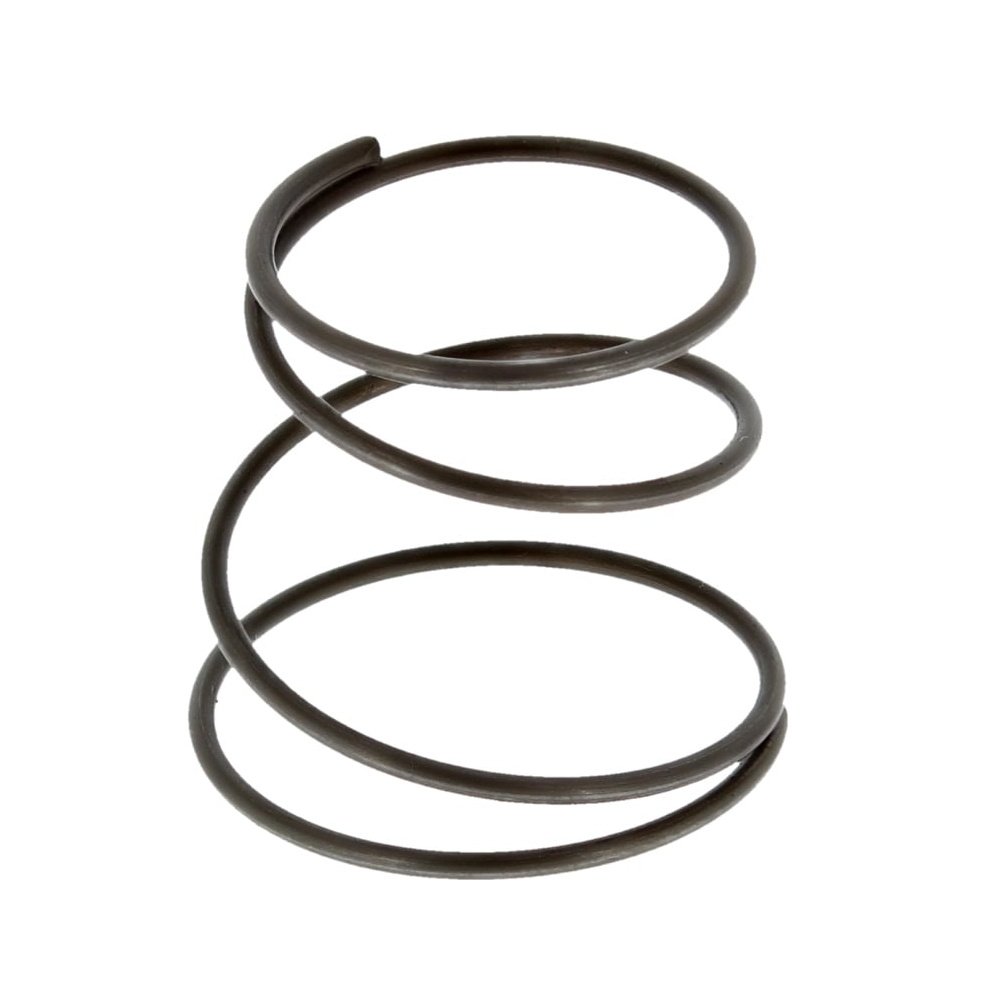

This genuine DeWalt (Black & Decker) spring is an OEM internal component for SDS‐Plus rotary hammers, used to control and return parts of the impact mechanism for consistent hammering action. Made from hardened spring steel for strength and fatigue resistance, it helps restore smooth operation and reliability during drilling and chiselling in masonry, brick, and concrete. Designed for heavy site and workshop use, it is a direct replacement in many DeWalt tools, including the DCH333 and DCH363. Correct spring performance supports stable percussion, reduces misfires, and helps extend tool life. Supplied to OEM specification under reference 871690, it is suitable for routine maintenance or repair when the original spring is worn, weakened, or damaged.
Key Features:
- Genuine OEM DeWalt (Black & Decker) part for assured fit and performance
- Hardened spring steel construction resists wear, fatigue, and set
- Helps maintain consistent impact energy and smooth hammer operation
- Direct-fit replacement for listed models; no modifications required
- Suitable for heavy-duty site work and frequent professional use
- Supports reliable SDS‐Plus drilling and chiselling in hard materials
- Straightforward installation during routine service with basic tools
- Aids in restoring tool efficiency and extending service intervals
- Stable performance across a wide temperature and load range
- OEM reference 871690 for easy identification in parts catalogues
Typical Applications:
Used during service or repair of DeWalt SDS‐Plus rotary hammers to restore proper percussion function. Ideal when the hammer action weakens, becomes inconsistent, or after a strip-down for cleaning. Common in building, electrical, plumbing, HVAC, fit‐out, facilities maintenance, and rental fleets where reliable drilling and chiselling in concrete, brick, block, and stone are required.
Also known as:
Percussion spring, impact mechanism spring, striker return spring, SDS‐Plus hammer spring, internal hammer spring, mechanism return spring, ram spring, impact drive spring, SDS rotary hammer internal spring, service replacement spring.
Fits Models:
D25002K, D25003K, D25012K, D25013K, D25032, D25033, D25052K, D25101K, D25102, D25102K, D25103K, D25104K, D25111K, D25112K, D25113K, D25114K, D25122K, D25123K, D25124K, D25132, D25133, D25134, D25143, D25144, D25201K, D25203K, D25213K, D25223K, D25262, D25263, D25303K, D25304K, D25313K, D25314K, D25323K, D25324K, D25330K, D25333K, DC210K, DC212K, DC213, DC213KL, DC222K, DC223K, DC224K, DC228KL, DC229KL, DC232K, DC233K, DC234K, DCH033, DCH133, DCH213, DCH214, DCH243, DCH253, DCH254, DCH273, DCH274, DCH283, DCH293, DCH323, DCH333, DCH363, DCH364, DW004K, DW514K35, DW523K35, DW550K, DW561, DW563, DW563K, DW566, DW566K, DW567, DW568K, DW999K, DWC24K3
Alternate Part Numbers:
871690
