Description
Overview:

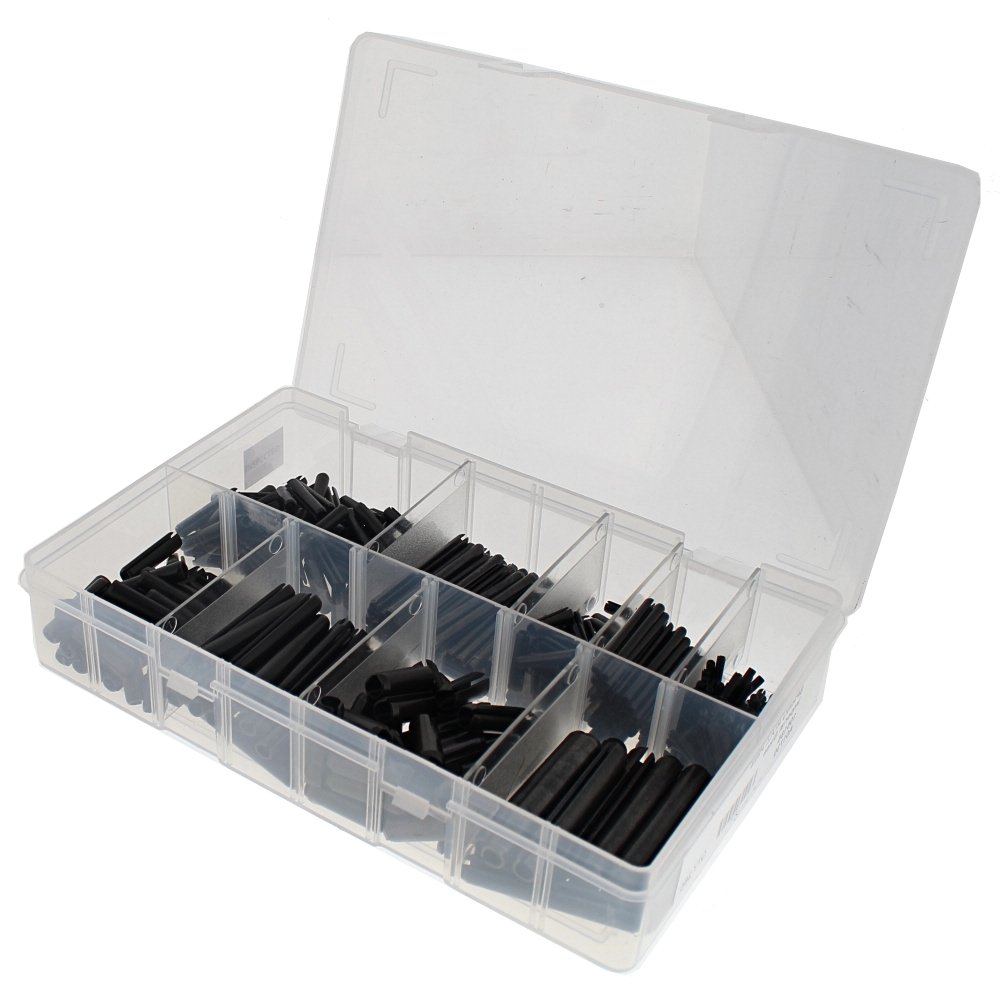

The Imperial Spring Roll Pins, Assorted Box (383 pieces) is a comprehensive set of slotted spring pins made from hardened spring steel with a blackened finish for durability. These self-retaining pins compress on installation to lock components together and maintain alignment under vibration and load. Suitable for general machinery, garden equipment, construction plant, workshop fixtures, and automotive repairs, the set covers common imperial sizes while also listing the equivalent metric dimensions for quick selection. Diameters range from 2.4 mm (3/32 in) up to 7.9 mm (5/16 in), with lengths from 19.1 mm (3/4 in) to 50.8 mm (2 in). Supplied in an assorted box for organised storage and fast identification. Manufacturer Part Number: 105 185.
Key Features:
- 383-piece assortment covering popular imperial sizes with metric equivalents for easy selection and replacement
- Hardened spring steel construction for high shear strength and long service life in demanding environments

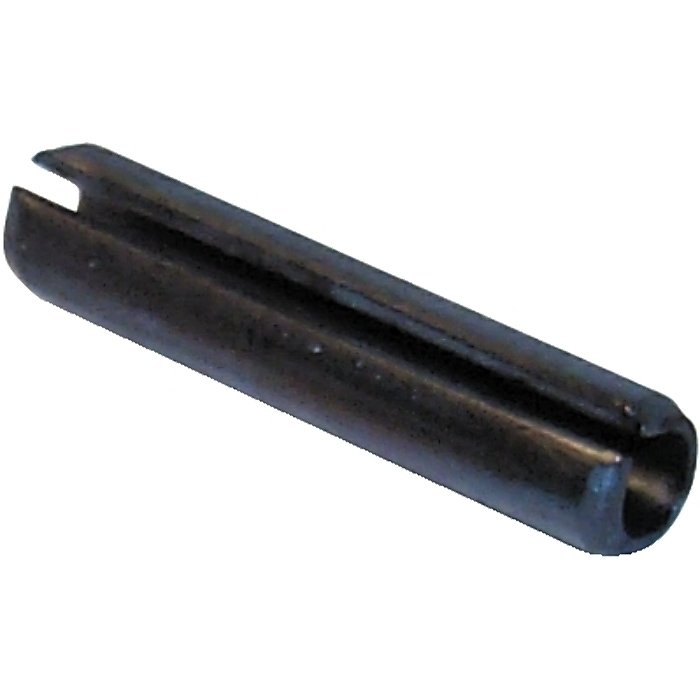

- Slotted design compresses for a secure interference fit that resists vibration loosening
- Smooth, rounded ends aid insertion using a hammer or press into properly sized holes
- Useful across maintenance, repair, and assembly tasks in workshops, on site, or in the field
- Blackened finish helps reduce corrosion and glare during fitting
- Supplied in a practical box to keep sizes separated and accessible
- Size coverage (diameter × length): 2.4 mm (3/32 in) × 25.4 mm (1 in); 3.2 mm (1/8 in) × 38.1 mm (1.5 in); 4.0 mm (≈5/32 in) × 19.1 mm (3/4 in); 4.0 mm (≈5/32 in) × 50.8 mm (2 in); 4.8 mm (3/16 in) × 25.4 mm (1 in); 4.8 mm (3/16 in) × 50.8 mm (2 in); 6.4 mm (1/4 in) × 25.4 mm (1 in); 6.4 mm (1/4 in) × 50.8 mm (2 in); 7.9 mm (≈5/16 in) × 25.4 mm (1 in); 7.9 mm (≈5/16 in) × 50.8 mm (2 in)
Typical Applications:
Securing gears, pulleys, sprockets, levers, linkages, handles, and housings; aligning shafts and bushes; retaining hinges and clevis joints; and general MRO tasks on mowers, compactors, generators, small plant, and workshop jigs. Suitable where a tough, vibration-resistant, re-tensionable pin is preferred over solid dowels or taper pins.
Also known as:
Spring pins, slotted pins, tension pins, spring dowel pins, roll pins (imperial sizes). These terms refer to the same family of self-retaining slotted fasteners used for alignment and retention in drilled holes.
Product Specifications
L&S Part No. | 105 185 |
---|---|
Unit of Sale | 385 Pieces |
Size | Sizes: 3/32" x 1", 1/8" x 1 1/2", 5/32" x 3/4", 5/32" x 2", 3/16" x 1", 3/16" x 2", 1/4" x 1", 1/4" x 2", 5/16" x 1", 5/16" x 2" |
