Description
Overview:

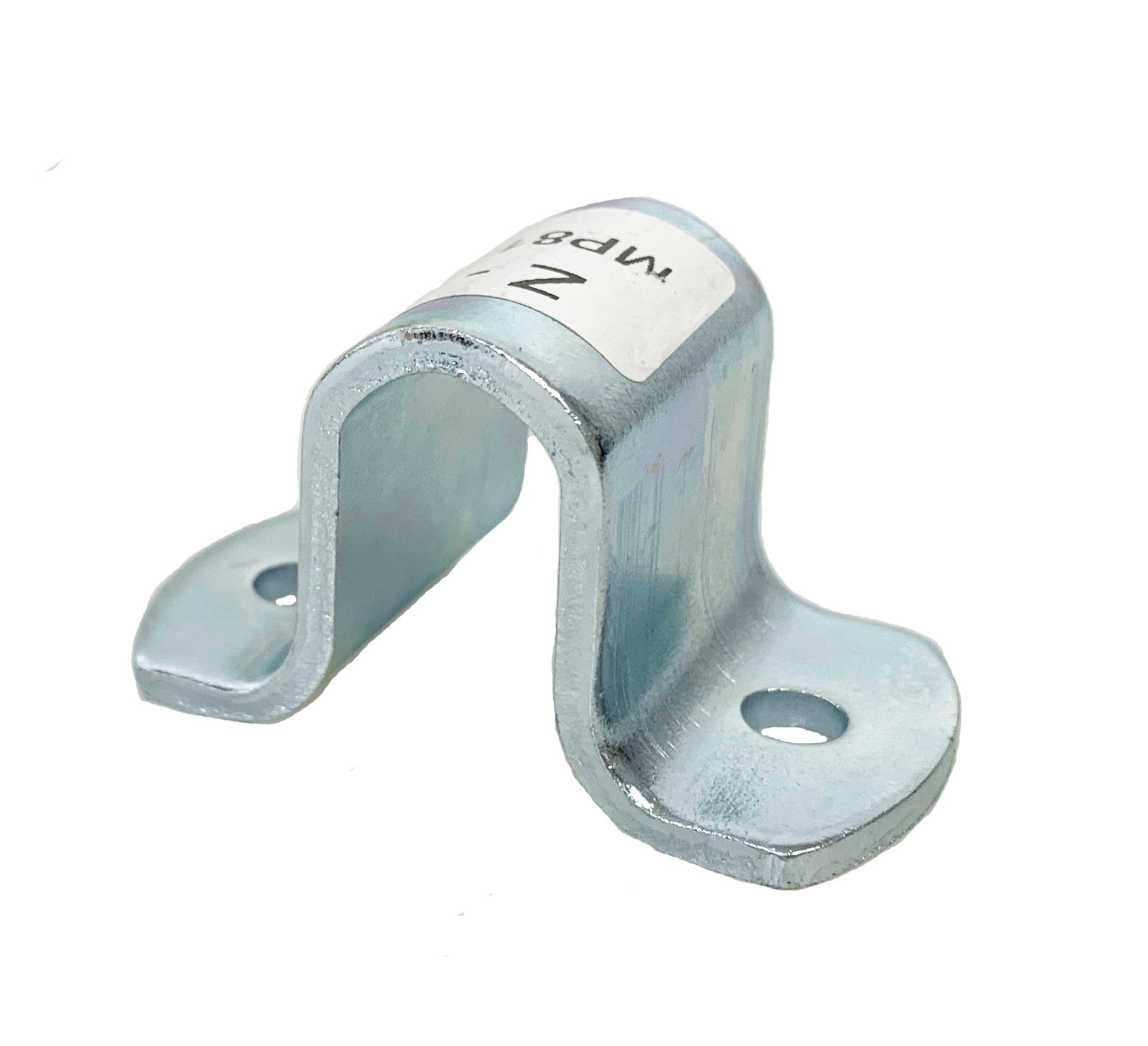

This Spring/Shoot Bolt Latch (MPN 763 022) is a metal latch with a durable zinc‐plated finish for general trailer and bodywork use. It provides a positive location point for a spring or shoot bolt, helping to secure tailgates, doors, ramps and dropsides. Designed to accept spring bolts up to 12 mm (0.47 in) diameter, it suits a wide range of light commercial, agricultural and plant transport applications where a simple, robust latching point is required. The latch features two mounting holes for straightforward installation on steel or timber structures, and compact proportions that suit tight spaces. Typical uses include trailer bodies, service vehicle compartments and fabricated gates where a clean, reliable latch point is needed. The zinc plating offers resistance to weather and road grime, supporting long service life in fleet and site conditions.
Key Features:
- Zinc‐plated finish for corrosion resistance in road and site use
- Suits spring/shoot bolts up to 12 mm (0.47 in) diameter
- Plate length A = 55 mm (2.17 in) for compact installations
- Radius B = R7 mm (0.28 in) for smooth bolt engagement
- Two fixing holes Ø 6.5 mm (0.26 in) for straightforward mounting
- Plate/profile thickness D = 3 mm (0.12 in) for sturdy support
- Compatible with common trailer, body and gate hardware
- Neutral finish suitable for steel or timber mounting surfaces
Typical Applications:
Used as the latch point for spring or shoot bolts on trailer tailgates, side boards, rear doors, mesh sides, ramps and utility lockers. Suitable for general trailer body fittings on plant transporters, builders' trailers, agricultural trailers and service vehicles. Fits spring bolts up to 12 mm diameter.
Also known as:
Shoot bolt keeper, spring bolt keeper, bolt latch plate, strike plate for shoot bolt, latch receiver, Maypole part number MP81410B
Product Specifications
| L&S Part No. | 763 022 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
| Key Features | - Zinc-plated finish resists corrosion in road and site conditions - Accepts spring/shoot bolts up to 12 mm diameter - 55 mm plate length for compact installations - Two 6.5 mm fixing holes for easy mounting - 3 mm plate thickness provides sturdy support |
