Description
Overview:

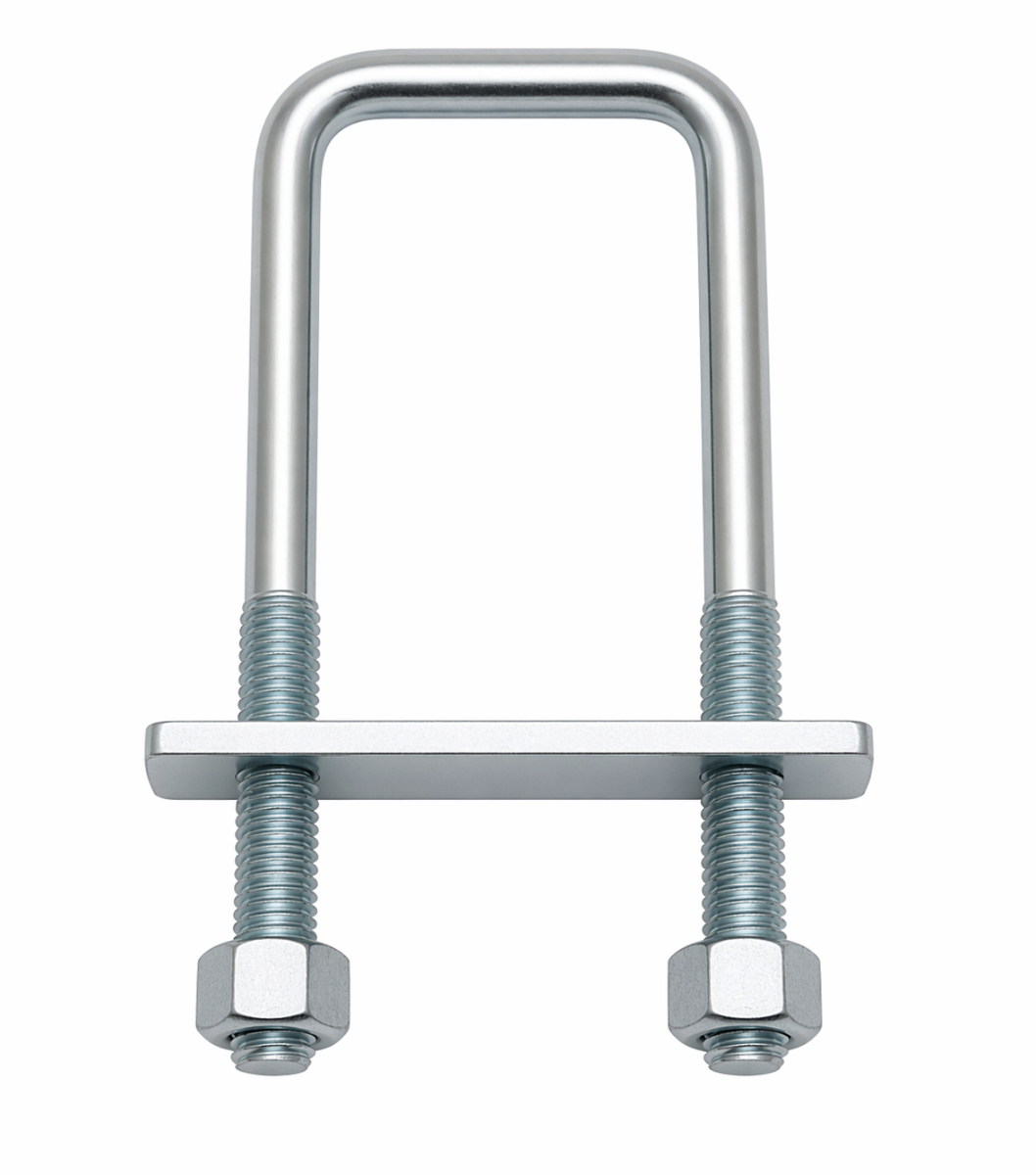

This Square U Bolt 132 x 50 x 102 mm with M10 threads is a robust fastening component for clamping and securing parts to plates, brackets, and structural members. The square profile holds firmly against flat faces, making it suitable for box section, cable tray, trunking, strut channel, and light framework. Each leg is threaded M10 with a usable thread length of 30 mm for reliable tightening with standard metric hardware. The U-bolt’s formed bar and twin threaded legs create a stable clamp when used with matching nuts and washers. It is intended for general mechanical fastening, bracing, and support tasks on tools, machinery, vehicles, and site installations where a square profile is required for correct seating and alignment.
Key Features:
- Square U-bolt for flat and box-section clamping
- Nominal size: 132 x 50 x 102 mm
- Thread size: M10 metric on both legs
- Threaded length per leg: 30 mm
- Compatible with standard M10 nuts and washers
- Creates a stable, even clamp across flat surfaces
- Useful for plate, bracket, and channel mountings
- Supports fixtures such as tray, trunking, or framework
- Suits mechanical fastening and support applications
- Barcode (EAN): 5050943061267
- Range: Fastener Product; Section: U Bolts with Nuts
- Check actual dimensions to confirm correct fit
Typical Applications:
Used to secure box section, brackets, cable tray, trunking, and light frameworks to plates, beams, or mounting surfaces. Common in workshop jigs, plant and machinery installations, site assemblies, HVAC supports, racking, vehicle bodies, agricultural equipment, and general fabrication where a square U-bolt gives better seating than a round pattern.
Also known as:
Square U bolt, U-bolt square type, box section U-bolt, U clamp, channel U-bolt, strut U-bolt, M10 U-bolt, square clamp bolt, pipe and tray clamp, fastening U-bolt.
Product Specifications
| L&S Part No. | 800 6126 |
|---|
