Description
Overview:

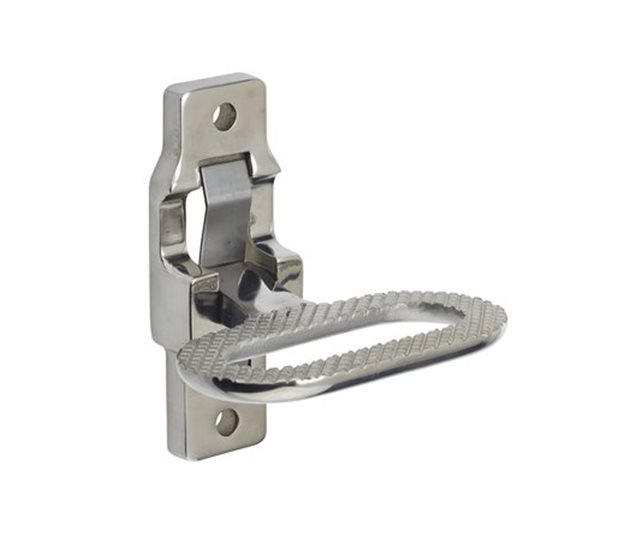

Folding Access Step, 304 Stainless, Polished, 200kg, 138 x 120 x 113mm (MPN 800 1012) is a medium duty, spring-loaded folding step designed to provide safe, non-slip access on commercial vehicles and equipment. Manufactured from 304 stainless steel with a polished chrome finish, it offers strong corrosion resistance for exterior use and harsh site conditions. The wide tread carries a diamond grip pattern to improve footing in wet or muddy environments. The step folds neatly away when not in use and deploys quickly when required. Overall dimensions are 138 mm (5.43 in) length, 120 mm (4.72 in) width and 113 mm (4.45 in) depth when deployed. Countersunk fixing holes accept 10 mm (0.39 in) hardware. With a 200 kg (440 lb) rated capacity, this step is suited to frequent access on trucks, trailers, plant support equipment and site cabins. Supplied by Albert Jagger for bodybuilders, fleet maintenance and refurbishment work.
Key Features:
- 304 stainless steel construction for durability and corrosion resistance
- Polished chrome finish for a clean, hard-wearing surface
- Spring-loaded folding mechanism for positive stowage and rapid deployment
- Diamond grip tread for improved slip resistance on the step surface
- Medium duty rating with 200 kg (440 lb) load capacity
- Dimensions: length 138 mm (5.43 in), width 120 mm (4.72 in), depth 113 mm (4.45 in)
- Countersunk fixing holes sized Ø10 mm (0.39 in) for secure mounting
- Suitable for external mounting on commercial vehicle bodywork and equipment
- Wide tread profile to aid stable footing when climbing on and off vehicles
Typical Applications:
Used on trucks and trailers for side or rear access, on commercial vehicle bodies for tool lockers and service compartments, on modular buildings and welfare units for doorway access, and on generators or static plant for maintenance access points. Suitable for new body builds, refits and fleet repairs where a compact folding step is required.
Also known as:
Folding step; Drop-down step; Retractable access step; Truck step; Access tread
Product Specifications
| L&S Part No. | 800 1012 |
|---|---|
| Unit of Sale | 1 |
