Description
Overview:

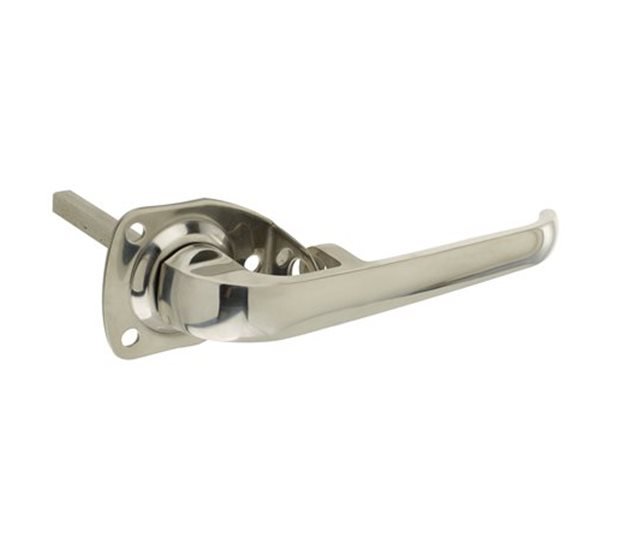

The 316 Stainless Padlockable Lever Handle (MPN 800 1297) is a heavy-duty locking handle designed for vehicle and equipment doors where a secure, corrosion-resistant solution is required. Manufactured from grade 316 stainless steel, it is suitable for demanding outdoor environments on commercial bodies and enclosures. The lever incorporates an integral padlock loop so the handle can be secured shut with a separate padlock (not supplied). It mounts using 38 mm hole centres and Ø6.5 mm countersunk fixings for a clean, low-profile installation. Key dimensions include an overall length of 180.9 mm (7.12 in), handle length of 122 mm (4.80 in) and a projection/depth of 53 mm (2.09 in). The operating square is 8 mm (0.31 in, approx. 5/16 in) with an 82.5 mm length (3.25 in), making it compatible with common latch mechanisms used across commercial fleets. Suited to trucks, trailers, buses, generator sets, horseboxes and cabs.
Key Features:
- Grade 316 stainless steel construction for high corrosion resistance
- Padlockable lever with integral padlock loop (padlock not included)
- Overall length: 180.9 mm (7.12 in)
- Handle length: 122 mm (4.80 in)
- Projection/depth: 53 mm (2.09 in)
- Fixing hole centres: 38 mm (1.50 in)
- Countersunk fixing holes: Ø6.5 mm (0.26 in)
- 8 mm square spindle interface (0.31 in, approx. 5/16 in); square length 82.5 mm (3.25 in)
- Locking lever action suitable for exterior doors and access panels
- Clean stainless finish for commercial vehicle and plant environments
Typical Applications:
Used on doors and access panels for trucks, trailers, buses, generator sets, horseboxes and cabs. Common on side lockers, service doors and equipment enclosures where a padlockable stainless lever handle provides durable security and weather resistance.
Also known as:
Padlockable lever latch, Stainless steel lever door handle, Locking lever handle with padlock loop, Vehicle locker handle, 316 stainless lever latch
Product Specifications
| L&S Part No. | 800 1297 |
|---|---|
| Unit of Sale | 1 |
