Description
Overview:

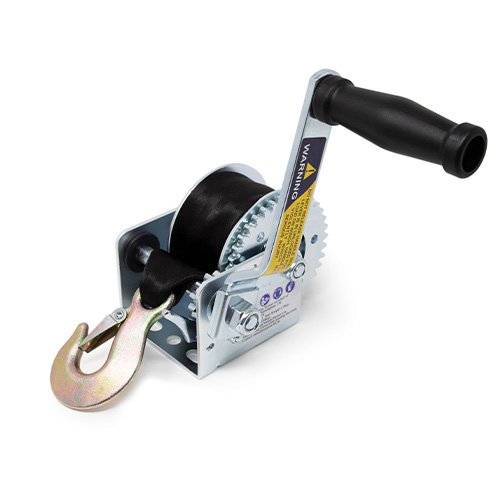

Standard-duty manual hand winch for pulling and positioning loads on trailers and transport equipment. Steel construction with bright zinc plating for corrosion resistance. Single-speed drive with solid gears and a safety ratchet. Supplied with a strap. CE and UKCA approved. Suits mounting to trailer winch posts, A-frames or fixed frames where a compact, non-braked hand winch is required.
Specification:
- CE rated working capacity: 250 kg
- Manufacturer's recommended max. capacity: 850 lb (approx. 386 kg)
- Max rolling load (30% gradient, good surface): 650 kg
- Speed: Single
- Gear ratio: 3.1:1
- Drive gear: Single
- Operating force required: 5.95 kg
- Mechanical advantage: 42
- Construction: Steel
- Finish: Bright zinc plated
- Gearing: Solid gears
- Safety ratchet: Yes
- Strap included: Yes
- Brake: Not supplied
- Approvals: CE & UKCA
- Spares: Handle (MP79711); Pawl spring (MP79712)
Typical Applications:
General trailer, boat, utility and car transporter use for loading and securing plant, machinery or vehicles. Suitable for hire fleet and transport operations where a compact, manual winch is required on a fixed mount.
Product Specifications
| L&S Part No. | 763 828 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
