Overview:

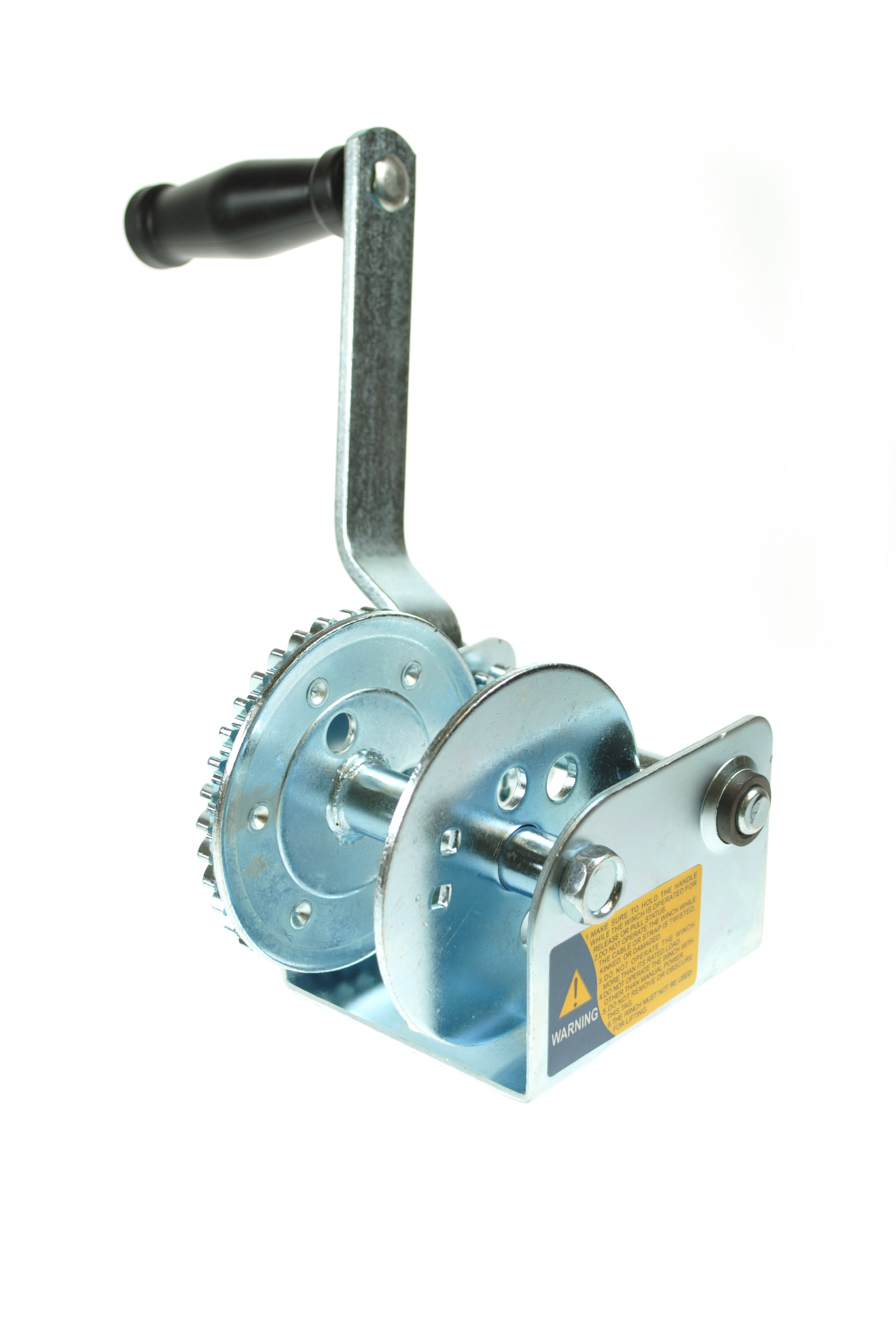

The Hand Winch 385kg (850lb) Single Speed 3.1:1, Zinc Plated (MPN 763 709) is a standard-duty manual winch for general pulling and load positioning on trailers and similar equipment. It is built from robust steel with a bright zinc plated finish for corrosion protection and long service life. A safety ratchet allows controlled winding and holding, and the single-speed, single-drive gear layout keeps operation straightforward. This unit is CE and UKCA approved. Capacity data is provided to help select correctly: CE rated working capacity is 250kg, the manufacturer's recommended maximum line pull is 385kg (850lb), and the maximum rolling load is 650kg on a 30% gradient under favourable surface conditions. Operating force is 5.95kg with a mechanical advantage of 42. No brake is fitted and no strap is included. Accessories and spares are available, including replacement handle and pawl spring.
Key Features:
- Robust steel construction for durability
- Bright zinc plated finish for corrosion resistance
- Single speed with 3.1:1 gear ratio
- Single drive gear with solid gears
- Safety ratchet mechanism
- CE and UKCA approved
- CE rated working capacity: 250kg
- Manufacturer's recommended maximum capacity: 385kg (850lb)
- Maximum rolling load: 650kg on a 30% gradient (good surface)
- Mechanical advantage: 42
- Operating force required: 5.95kg
- No brake supplied (non-self-braking)
- Strap included: No (use with a suitable strap or cable, not supplied)
- Spares available: handle MP79711, pawl spring MP79712
- Also known as Maypole part number MP7970
Typical Applications:
Commonly fitted to trailer winch posts and A-frames for loading and positioning tasks, such as pulling machinery or materials up ramps and steadying loads during transport setup. Suitable for general-purpose pulling on utility, plant and transport trailers where a compact, manual winch is required and where the stated capacities are not exceeded. Use secondary restraints where needed, as this model is not self-braking.
Also known as:
Manual hand winch, trailer hand winch, standard duty hand winch, single speed winch, ratchet hand winch, Maypole part number MP7970
Product Specifications
| L&S Part No. | 763 709 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
