Description
Overview:

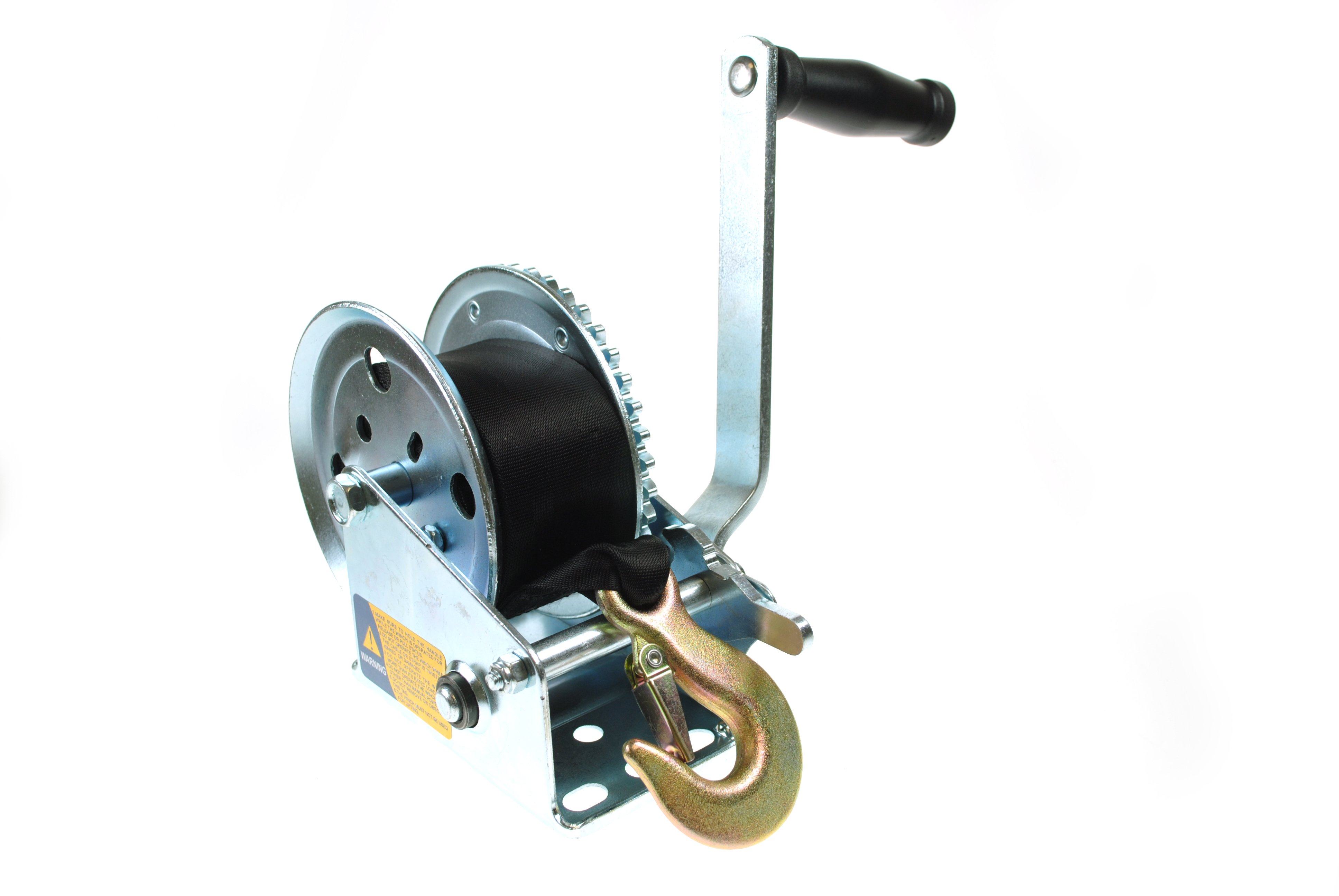

This Standard Duty Hand Winch, 545 kg (1,200 lb) capacity (MPN 763 895), is a compact manual winch for pulling and positioning loads on trailers and general handling equipment. Built from robust steel with a bright zinc plated finish, it offers corrosion resistance for outdoor and fleet use. The unit is single speed with a 4.3:1 gear ratio and solid gears for consistent operation, and features a safety ratchet to hold the load while cranking. It is supplied complete with a winch strap for immediate installation. The winch is CE and UKCA approved. Typical tasks include loading and moving equipment on plant and general-purpose trailers where a compact, unbraked hand-operated solution is required. Suitable for professional workshop, yard and on-trailer mounting where controlled line pull is needed.
Key Features:
- Steel construction for durability and rigidity
- Bright zinc plated finish for corrosion resistance
- Manufacturer's recommended maximum capacity: 545 kg (1,200 lb)
- CE rated working capacity: 320 kg (approx. 705 lb)
- Maximum rolling load: 832 kg (approx. 1,835 lb) on a 30% gradient, good surface
- Single speed operation with 4.3:1 gear ratio
- Safety ratchet for load holding during operation
- Solid gears and single drive gear design
- Mechanical advantage: 70
- Operating force required: 4.57 kg (approx. 10.1 lb)
- Supplied with winch strap for immediate use
- CE & UKCA approved for conformity
- Unbraked hand winch (no brake supplied)
- Spares support available: handle MP79721 and pawl spring MP79722
Typical Applications:
For mounting to trailer winch posts, A-frames or chassis plates on general-duty trailers used in plant hire, construction and transport. Suitable for controlled pulling of light machinery, small vehicles and materials onto trailers, positioning loads in yards or workshops, and other towing-related tasks where a compact manual winch is appropriate. Use within the stated capacities for the surface and gradient conditions noted.
Also known as:
Manual trailer winch, ratchet hand winch, single speed winch, 545 kg trailer winch, 1200 lb hand winch, hand crank winch, standard duty winch, Maypole part number MP7973
Product Specifications
| L&S Part No. | 763 895 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
