Description
Overview:

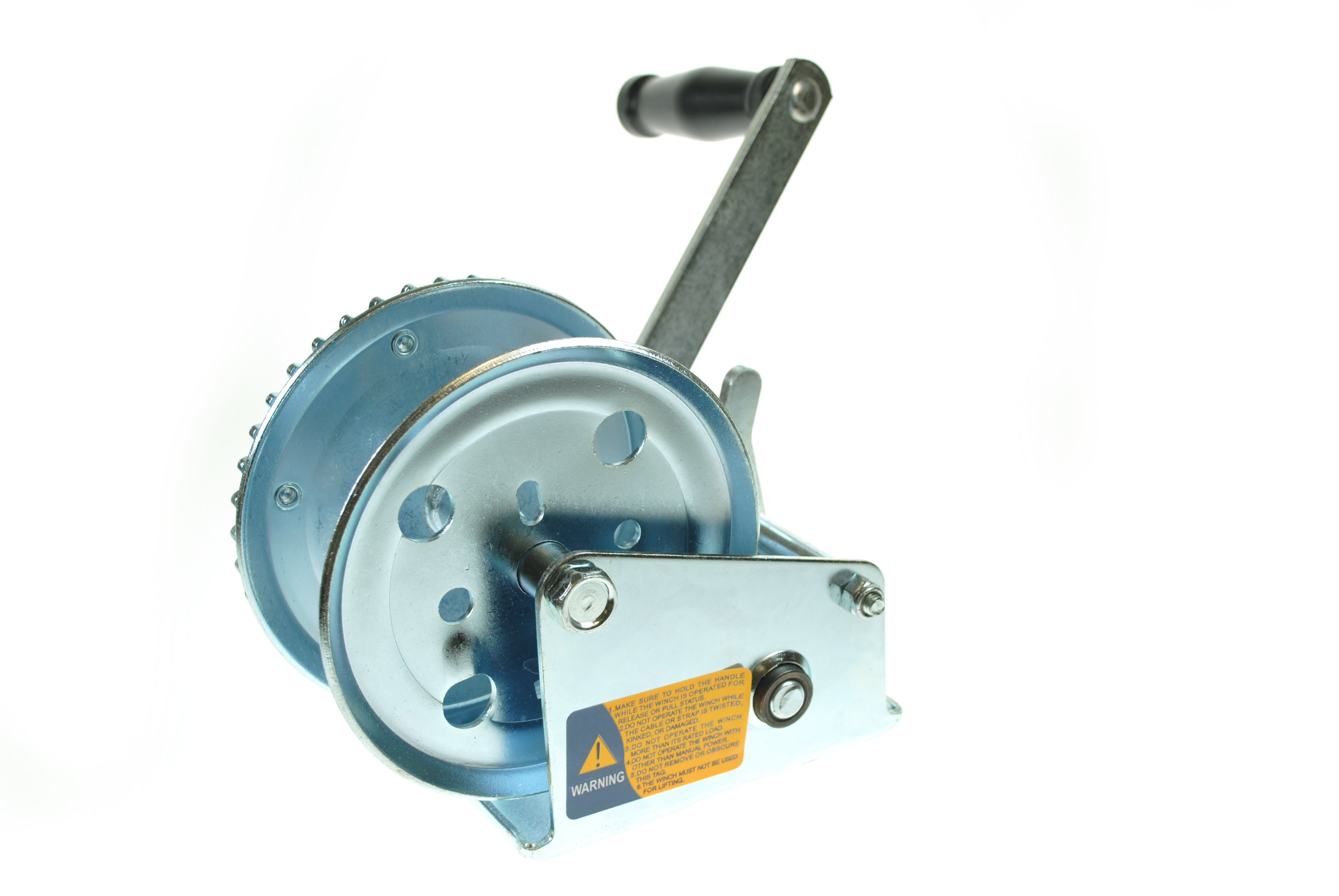

Trailer Hand Winch (MPN 763 775) for general pulling and load positioning on trailers and towing equipment. Built from heavy‐gauge steel with a bright zinc plated finish for wear and corrosion resistance. The unit is unbraked and uses a single gear drive with a safety ratchet and solid gearing for controlled forward winding and holding. Rated by the manufacturer to a maximum capacity of 545 kg (1200 lb), with a CE working capacity of 320 kg for regulated applications. Maximum rolling load on a 30% gradient is 832 kg on a good surface. Single speed operation with a 4.3:1 gear ratio keeps operation simple and dependable in fleet and workshop use. Supplied without a strap, allowing selection of a suitable webbing or rope to suit the job. CE and UKCA compliant. Spares support is available for service items.
Key Features:
- Steel construction for durability
- Bright zinc plated finish for corrosion resistance
- Safety ratchet mechanism with solid gears
- Single speed operation; gear ratio 4.3:1
- Drive configuration: single gear
- Manufacturer's recommended max. capacity: 545 kg (1200 lb)
- CE rated working capacity: 320 kg
- Maximum rolling load: 832 kg on a 30% gradient (good surface)
- Approximate operating force required: 4.57 kg
- Mechanical advantage: 70
- Unbraked design (no brake fitted)
- Strap included: No (drum supplied without webbing/rope)
- CE & UKCA compliant
- Spares support: handle MP79721; pawl spring MP79722
Typical Applications:
Used on trailer winch posts and A‐frames for pulling and positioning loads such as machinery, small vehicles, and equipment onto plant, general‐purpose, or recovery trailers. Suitable for workshop and site use where a compact, standard‐duty, unbraked hand winch is required. As a guide on a 30% gradient, rolling load is approximately line pull × 2.6 (condition dependent).
Also known as:
Manual Trailer Winch, Hand Crank Winch, Standard Duty Hand Winch, Single‐Speed Hand Winch, Unbraked Hand Winch, Maypole part number MP7972
Product Specifications
| L&S Part No. | 763 775 |
|---|---|
| Part Type | Genuine Part |
| Unit of Sale | 1 |
